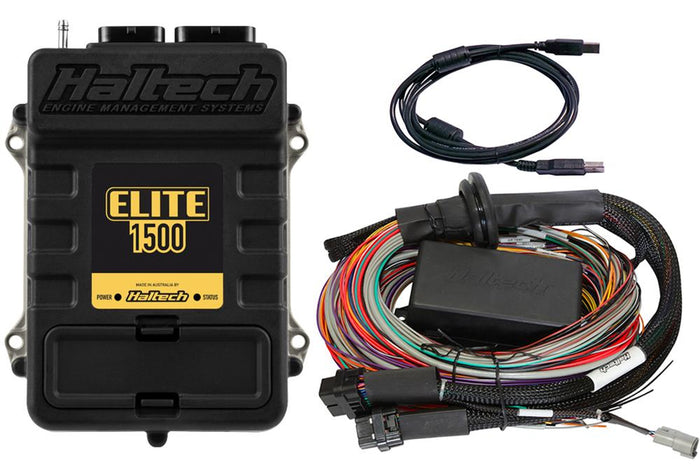

Haltech Elite 1500 + Premium Universal Wire-in Harness Kit (1–12 Cylinder / 2 Rotor Applications) - HT-150905

$9,999.00
$9,999.00
$0
Sold out
Quantity must be 1 or more

The Haltech Elite 1500 with Premium Universal Wire-in Harness Kit is an ideal solution for engine conversions and custom race car builds. Designed for universal compatibility with 1–12 cylinder or 2 rotor engines, this kit includes a color-coded, pre-labeled harness that simplifies the wiring process and integrates seamlessly with the Elite 1500’s advanced engine management capabilities. The ECU is housed in a robust IP67-rated case and includes Haltech's intuitive NSP software, giving tuners high-level control over all aspects of engine performance.

Important Emissions Notice:
This product is designed and sold for off-road or competition use only and may not be legal for use on public roads or highways.

Key Features:

  • Designed for universal engine management on 1–12 cylinder or 2 rotor applications

  • Ideal for EFI conversions and custom harness installations

  • Elite 1500 ECU features:

    • Drive-by-Wire (DBW) throttle control

    • Dual channel knock control

    • Variable camshaft control (up to 4 cams)

    • Closed loop control for idle, boost, and O2

    • Flex fuel tuning capability

    • Long term learning and 4D tuning maps

    • Launch control, traction control, anti-lag systems

    • USB tuning with NSP Calibration Software

    • Dual CAN Bus communication for dashes and expansion modules

ECU Technical Specs:

  • 4 x Fuel Injection Outputs

  • 4 x Ignition Outputs

  • 12 x Digital Outputs

  • 10 x Analog Voltage Inputs

  • 4 x Synchronized Pulsed Inputs

  • 3 x Dedicated Inputs (Knock, Ignition Switch, Onboard MAP Sensor)

  • 2 x Dedicated Engine Position Inputs

  • IP67-rated sealed enclosure

  • USB communication via Windows interface

  • Supports up to 45 Input/Output channels through CAN expansion

Includes:

  • Haltech Elite 1500 ECU with DBW and Race Functions

  • Premium Universal Wire-In Harness

  • Firewall grommet

  • Molded Haltech fuse box (6 power circuits) with lid

  • 4 relays and 7 fuses

  • Pins for 2 spare power circuits

  • USB programming cable

  • Quickstart guide and detailed wiring diagram

Applications:

  • Universal fitment for 1–12 cylinder or 2 rotor engines

  • Suitable for custom vehicle builds, engine swaps, and motorsport use

Brand: Haltech
SKU: HT-150905
