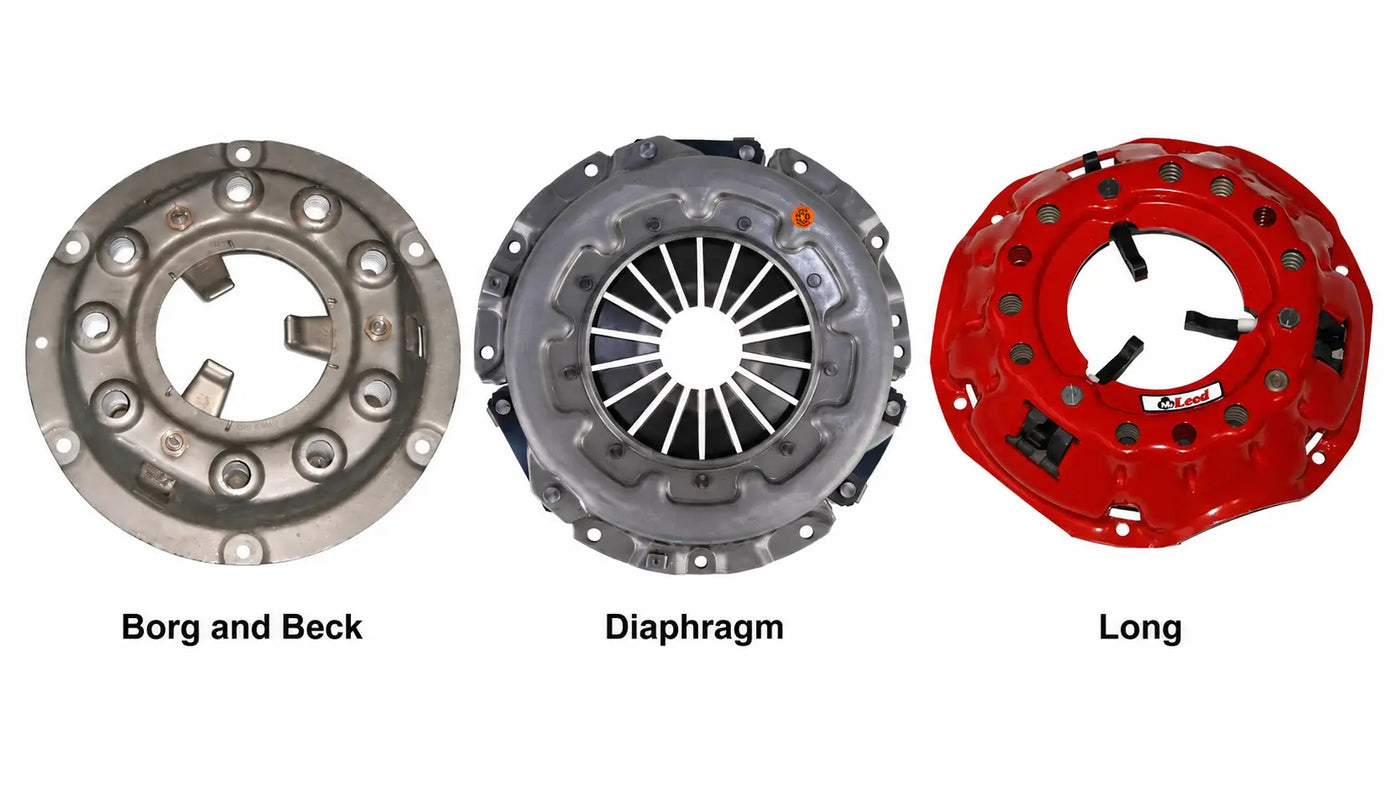

Yes, there are different types of clutch pressure plates. The three most common styles are Borg and Beck, diaphragm, and Long-style pressure plates. Each design uses a different spring and lever setup to apply clamping force to the clutch system.
A pressure plate works by applying clamping force to the clutch disc, holding it against the flywheel so power can transfer from the engine to the transmission.
What Is a Clutch Pressure Plate?
A clutch pressure plate is one of the main parts of a manual transmission clutch assembly. Its job is to press the clutch disc against the flywheel when the clutch is engaged. When the clutch pedal is pressed, the pressure plate releases clamping force so the clutch disc can separate from the flywheel and allow the driver to shift gears.
The design of the pressure plate affects pedal feel, holding power, clutch engagement, and how well the clutch handles street driving, racing, or high-RPM use.
Borg and Beck Pressure Plates
Borg and Beck pressure plates are commonly used on older GM, Chrysler, and some AMC vehicles. This style uses multiple coil springs and three wide release levers to engage and disengage the clutch.
Borg and Beck pressure plates generally provide a fixed amount of clamping force. This means the pressure plate relies on its static spring pressure to hold the clutch disc against the flywheel.
Because of their design, Borg and Beck pressure plates usually have a heavier pedal feel. They are most commonly found in older muscle cars, race vehicles, and limited street-use applications.
Common traits:
- Older GM, Chrysler, and AMC applications
- Multiple coil spring design
- Three release levers
- Heavy pedal effort
- Best for race or limited street use
Diaphragm Pressure Plates
Diaphragm pressure plates are the most common style found in many late-model vehicles. They are also a popular upgrade for older vehicles because they usually offer smoother engagement and lighter pedal effort.
Instead of using several coil springs, a diaphragm pressure plate uses a single Belleville-style diaphragm spring. This spring design helps apply clamping force while keeping the clutch easier to operate.
Diaphragm pressure plates are popular for daily drivers, street cars, performance builds, and some race applications because they balance drivability and holding power.
Common traits:
- Common in late-model vehicles
- One-piece diaphragm spring design
- Lighter pedal feel
- Smooth clutch engagement
- Works with cable, hydraulic, or mechanical linkage
- Good for daily driving, street performance, and racing
Long-Style Pressure Plates
Long-style pressure plates are commonly found in older Ford muscle cars and trucks. This style is also used as the foundation for many modern drag racing clutch setups.
Like a Borg and Beck pressure plate, the Long style uses multiple coil springs and three levers. The major difference is that Long-style pressure plates use weighted levers that add centrifugal clamping force as engine RPM increases.
This helps the clutch hold more power at higher RPM. Because of this, Long-style pressure plates are commonly used in drag racing and high-performance applications where maximum holding power is more important than light pedal feel.
Common traits:
- Common in older Ford muscle cars and trucks
- Multiple coil spring design
- Three weighted release levers
- Adds clamping force as RPM increases
- Heavy pedal effort
- Best for racing or limited street use
Borg and Beck vs Diaphragm vs Long Pressure Plates
| Pressure Plate Type | Pedal Feel | Linkage Type | Best Use |
|---|---|---|---|
| Borg and Beck | Heavy effort | Mechanical | Race / limited street use |
| Long | Heavy effort | Mechanical | Race / limited street use |
| Diaphragm | Light effort | Cable, hydraulic, or mechanical | Daily driver / street / race |
