In the world of fuel systems, names matter. Choosing between a fuel pump and a fuel sump isn't a matter of preference, it’s a matter of function. Here is everything you need to know to ensure your engine never runs dry.

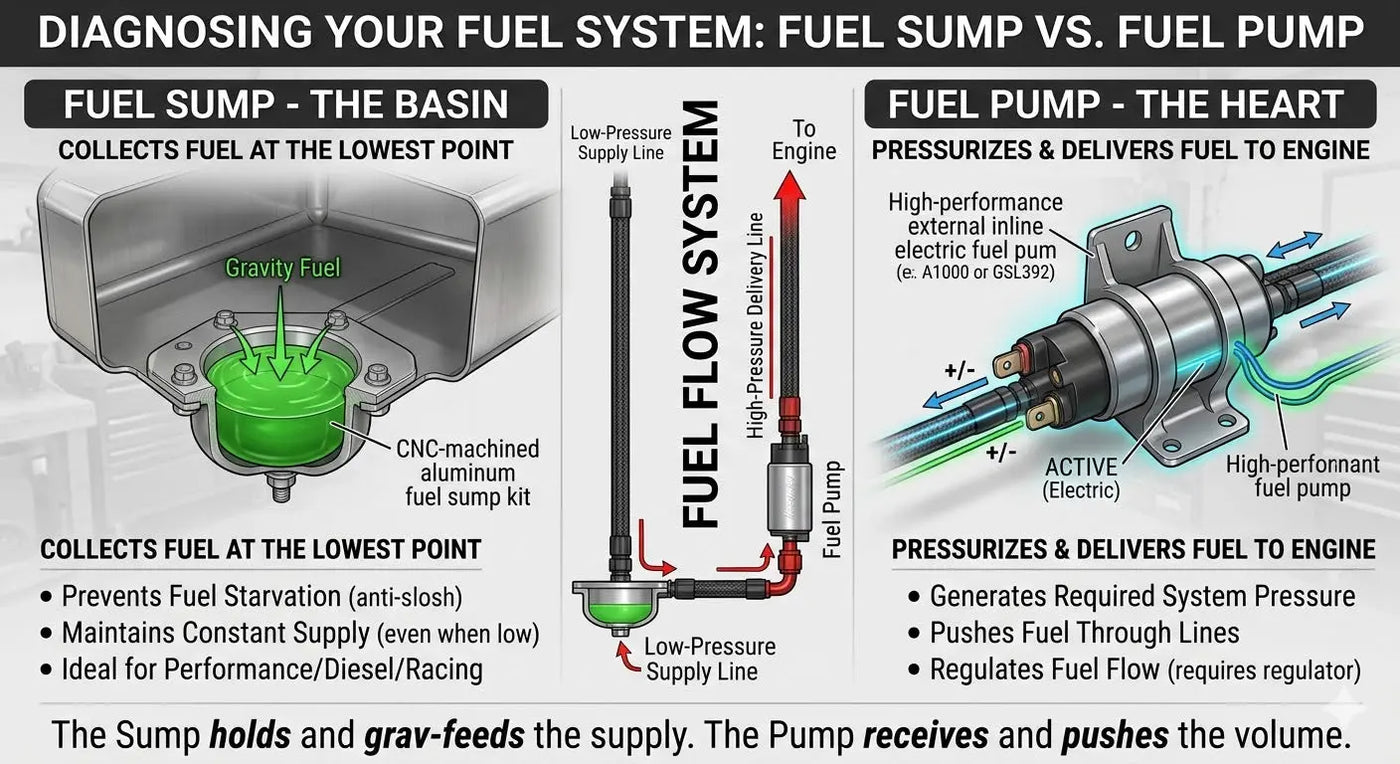

Fuel Pump vs. Fuel Sump: The Quick Version
| Feature | Fuel Pump | Fuel Sump |
|---|---|---|
| Purpose | Moves fuel to engine | Stores fuel for pump |
| Type | Mechanical or electric pump | Reservoir attached to tank |
| Common on | All vehicles | Mostly performance builds |
| Main benefit | Provides fuel pressure | Prevents fuel starvation |
What is a Fuel Pump?
The fuel pump is the "worker." It creates the pressure necessary to send fuel through the lines and into the injectors or carburetor.
- Electric Pumps: Usually found inside the tank of modern cars. They stay cool by being submerged in fuel.
- Mechanical Pumps: Common on older, carbureted vehicles; they are usually bolted to the engine block.
If you're upgrading a fuel system for a turbocharged or high horsepower build, a high-flow fuel pump or fuel sump kit may be required.
What is a Fuel Sump?
A fuel sump is an attachment (or a built-in feature) located at the very bottom of a fuel tank. Its job is to ensure that the fuel pump always has a "pool" of fuel to draw from, even when the tank is nearly empty or the vehicle is sloshing around during hard turns or acceleration.
- The Problem: In a flat-bottomed tank, if you have only a gallon left and you hit the brakes, the fuel splashes to the front. The pump sucks in air, the engine stumbles, and you stall.
- The Sump Solution: By adding a "bowl" or "sump" at the lowest point, gravity keeps that small area filled with fuel at all times.
Why Use Them Together?
In performance or diesel applications, people often install an Aftermarket Sump Kit. They hole-saw the bottom of their factory tank and bolt on a sump. This allows them to run a much larger fuel pump outside the tank, pulling fuel directly from the bottom via gravity rather than making the pump "reach" down into the tank from the top.
Watch Out: Not all sumps go on the tank!
Products like the Edelbrock Universal EFI Sump are actually 'Surge Tanks.' They are electric, self-contained units that sit under the hood. They are perfect for people who want to upgrade to Fuel Injection without the nightmare of removing or modifying their original gas tank.
