Engine Bottom End & Rotating Assembly

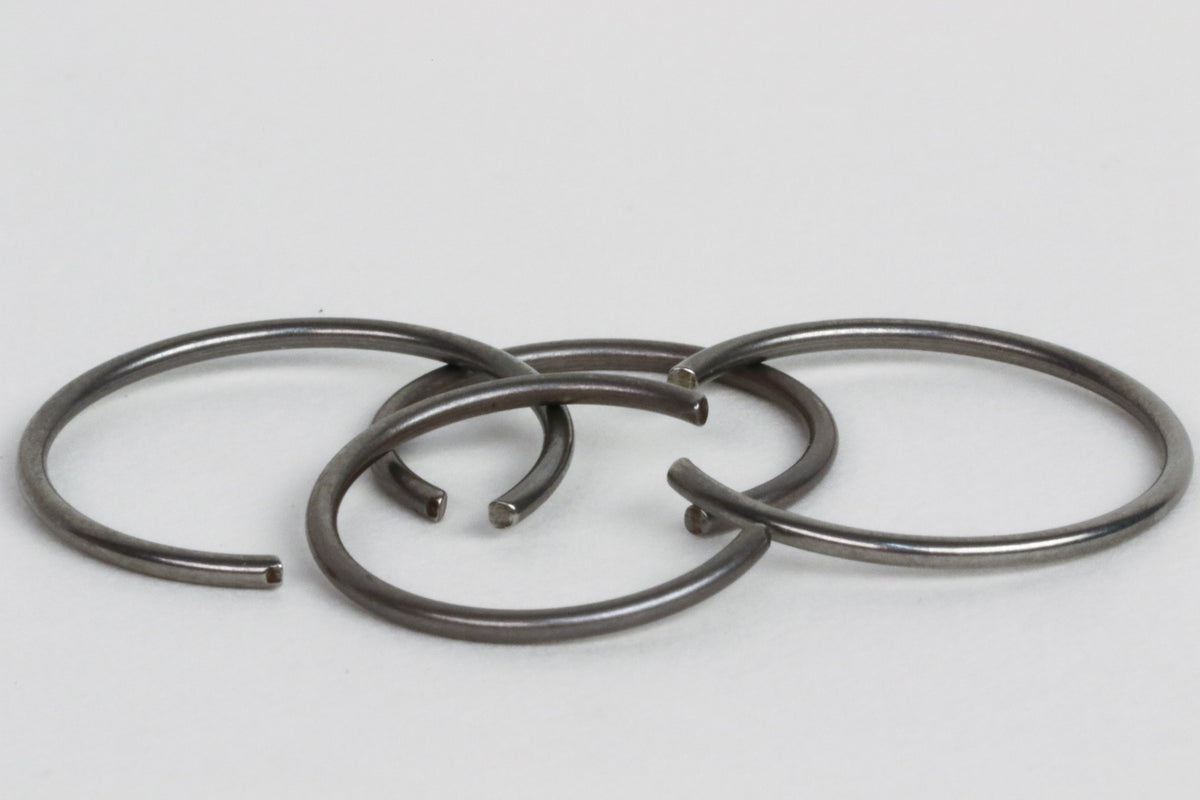

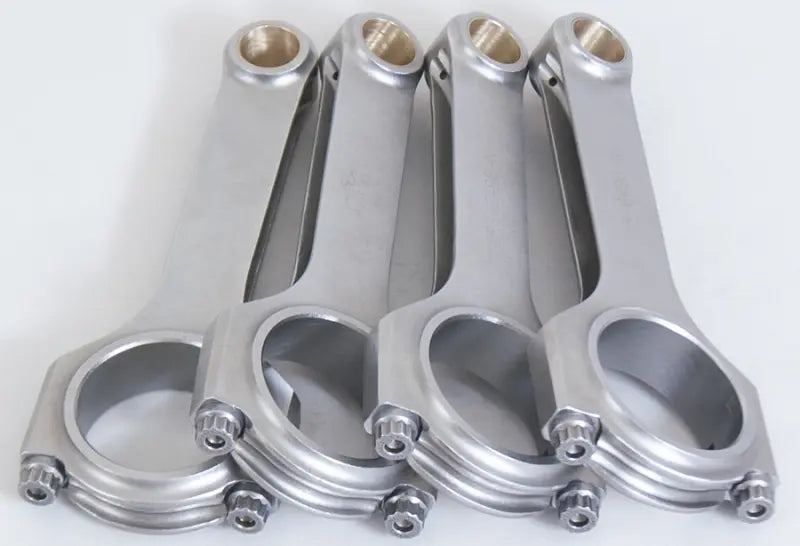

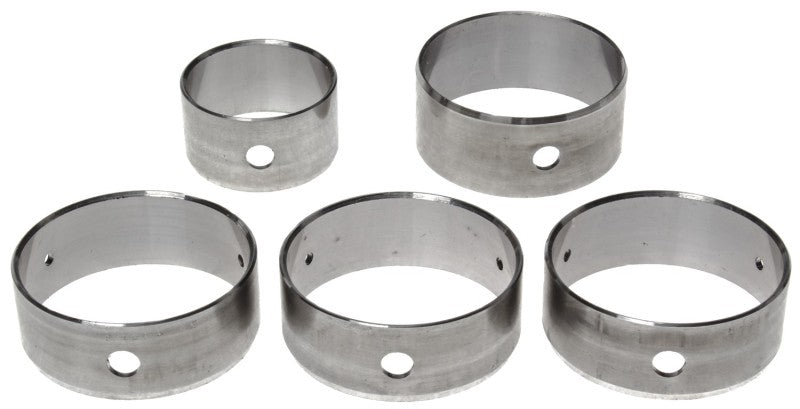

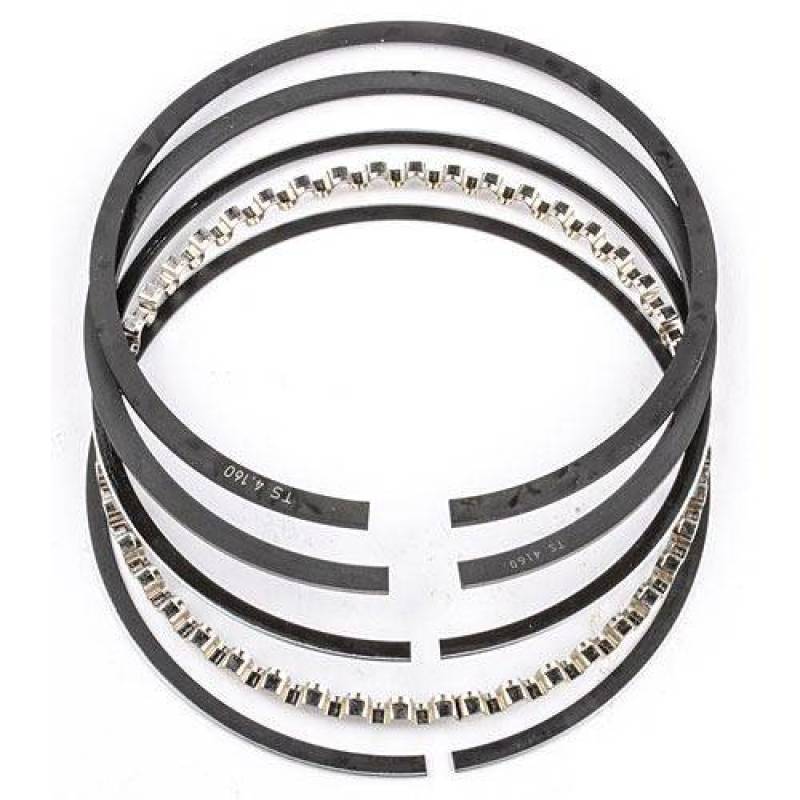

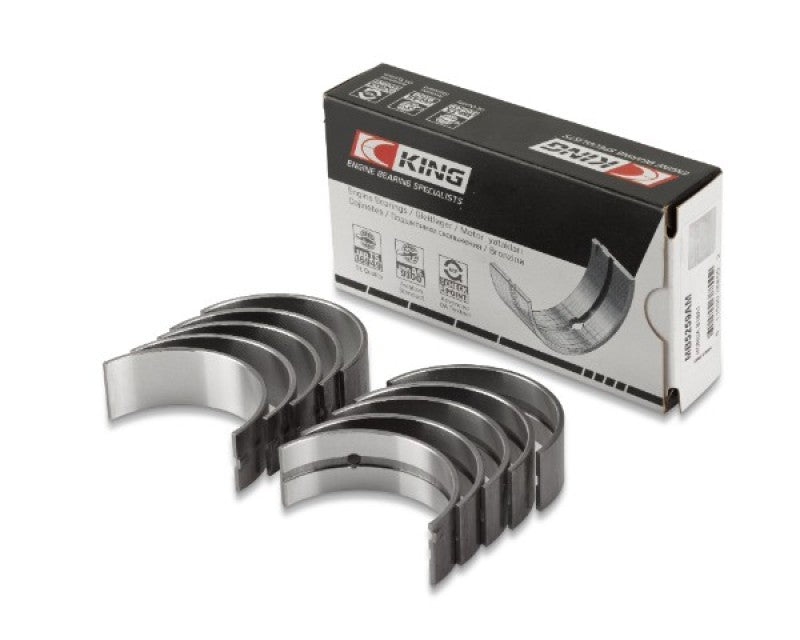

The bottom end is where real engine strength starts. Shop rotating assemblies, stroker kits, pistons, piston rings, wrist pins, connecting rods, crankshafts, rod bolts, bushings, and engine bearings for builds that need to handle heat, RPM, cylinder pressure, and hard use.

From mild rebuilds to forged internal engine combinations, every piece in the rotating assembly has to work together. Pistons and rings seal combustion pressure, rods transfer the load, crankshafts turn that force into power, and bearings keep the whole assembly alive under oil pressure and load. Use this section when you are refreshing a factory short block, planning a stroker setup, adding strength before forced induction, or building a bottom end that can take real abuse.

1 13

Build a Bottom End That Can Take the Power

Horsepower gets made above the pistons, but the bottom end has to survive every bit of it. Cylinder pressure, RPM, heat, and load all come together at the rotating assembly, which is why the right combination matters whether you are freshening up a stock engine or building something meant to live under boost and hard track use.

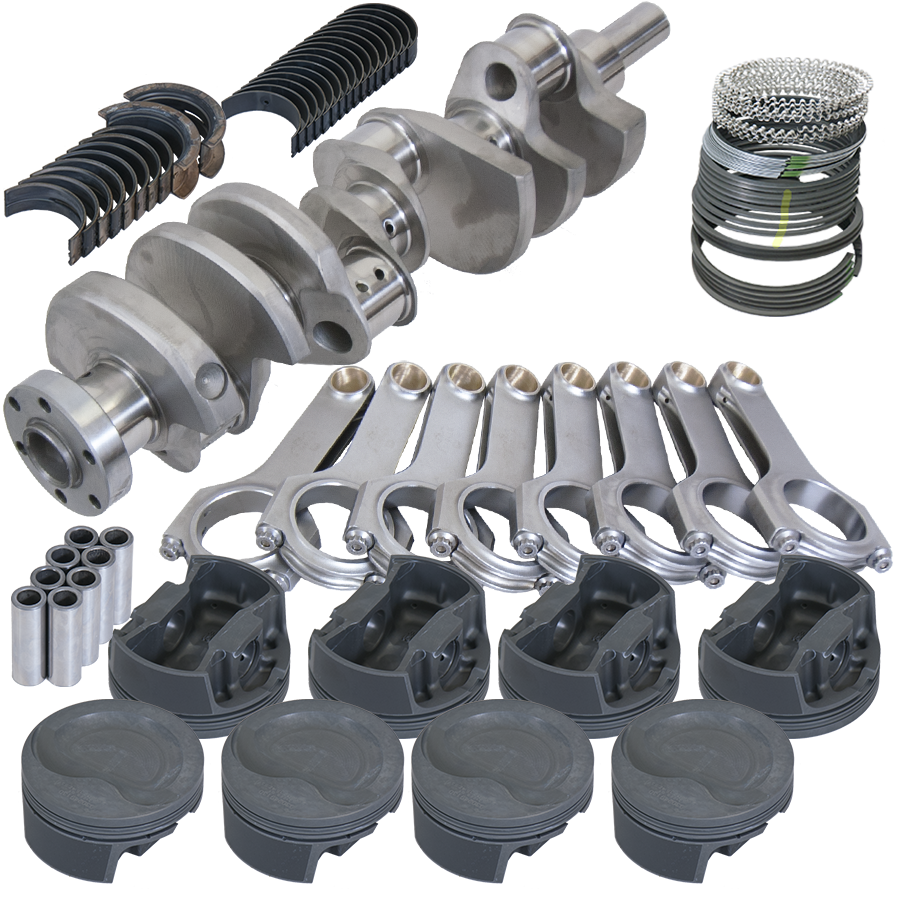

The Bottom End & Rotating Assembly section brings together the major internal components that turn combustion into power. Build around a complete rotating assembly or choose the individual pieces needed for your combination, from the piston and rod package down to the crankshaft and bearings keeping everything moving smoothly.

There is no single bottom-end setup that works for every engine. Bore size, compression ratio, crank stroke, rod length, bearing clearances, intended RPM, power goals, and machine work all have to work together. Take the time to build the combination correctly and the bottom end gives the rest of your engine something strong to stand on.
