Advance Adapters NV4500 to GM NP205 Transfer Case Adapter - 29 Spline - 50-9552

The Advance Adapters NV4500 to GM NP205 Adapter Assembly is designed to mate a Dodge 4WD NV4500 manual transmission with a GM NP205 transfer case featuring the circular six-bolt front pattern. This adapter converts a Dodge 29-spline NV4500 output to work with a GM NP205 using a new 29-spline female NP205 input shaft and gear.

This kit is intended for use with the GM part-time NP205 transfer case used in 1985–1991 GM one-ton trucks. The GM NP205 is a cast-iron transfer case with a circular six-bolt mounting pattern and a passenger-side front output. The adapter assembly includes all major components and hardware required for installation.

Key Features:

• Transmission to transfer case adapter assembly
• Adapts Dodge NV4500 29-spline transmission to GM NP205
• Designed for GM NP205 with circular six-bolt front pattern
• Includes new 29-spline NP205 input shaft and gear
• Supports GM NP205 passenger-side front output configuration
• Designed for part-time GM NP205 transfer cases
• Includes linkage support bracket and installation hardware

Transfer Case Compatibility:

• GM New Process 205 (NP205)
• Circular six-bolt front pattern
• 32-spline female input gear (factory configuration)
• Passenger-side front output
• Part-time, cast-iron transfer case
• Used in 1985–1991 GM 1-ton trucks

Transmission Compatibility:

• Dodge NV4500 Manual Transmission (4WD)
• 29-spline output shaft
• Compatible applications include:
• Dodge Heavy Duty Diesel NV4500 (1993–1998)
• Dodge NV4500 4WD (1999–2000)
• Dodge NV4500 4WD (2001–2005)

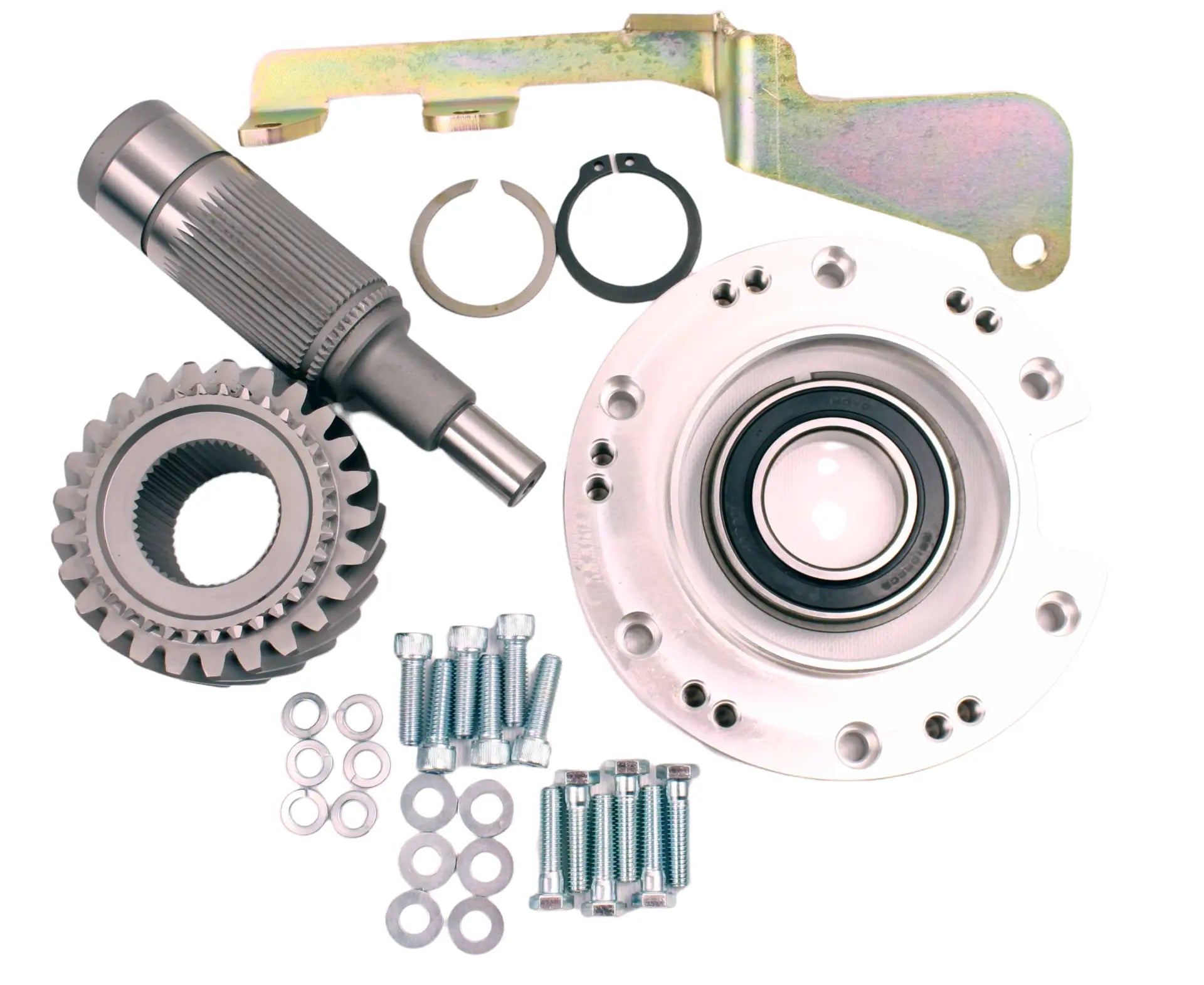

Bill of Materials (Included Components):

• Snap Ring - External Input Gear NP / 340407
• Adapter - NP205 GM / 51-9552
• Gear - NP205 Input 46T / 52-9600
• Shaft - NP205 Input 29T / 52-9601
• Bracket - Linkage NV4500 to NP205 / 715529
• Bearing - NP205 Input Gear Bearing 6210 / 716315
• Snap Ring - External 1-15/16 / 716467
• Lock Washer 3/8 Zinc / 723704
• Hex Head Cap Screw 3/8-16 x 1-1/2 Grade 5 Zinc / 723723
• Socket Head Cap Screw 3/8-16 x 1.25 Zinc / 723730
• Washer 3/8 SAE Flat Plated / 723735
• Hex Nut 9/16-12 Plated / 725603

Part Number

50-9552
