SKU: 851154-5003S
Brand: Garrett

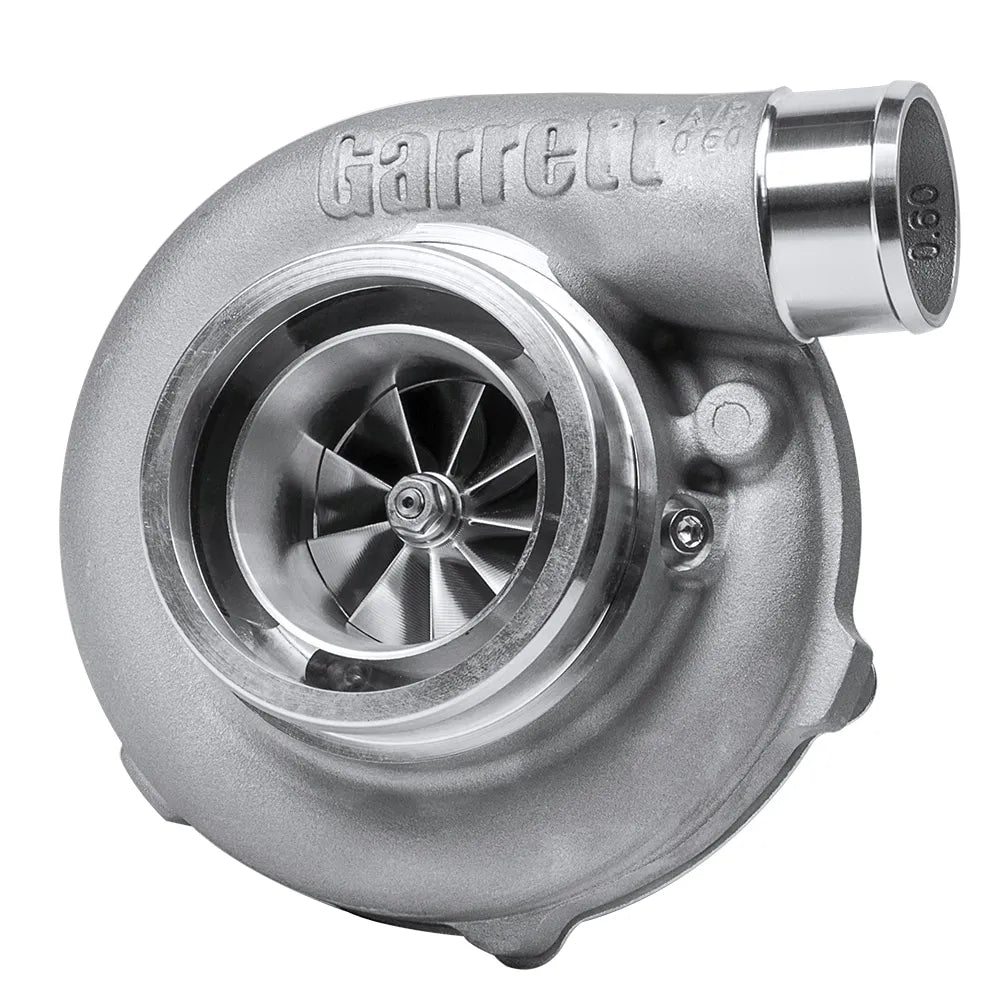

The Garrett GTX3576R Gen II Supercore turbocharger is a performance-focused solution built on the foundation of the GT Series architecture and enhanced with Gen II aerodynamics. Designed for serious racing applications, it features a 58mm forged fully-machined compressor wheel, ceramic dual ball bearings, and optimized housing geometry for higher flow and faster response.
This unit supports power outputs from 400 to 750 HP for engines ranging from 2.0L to 4.5L, depending on supporting modifications and tuning.
Gen II compressor wheel aerodynamics for increased airflow and horsepower
58mm forged, fully-machined compressor inducer
Ceramic dual ball bearing cartridge for enhanced spool and durability
New speed sensor port machined into compressor housing (sensor sold separately)
External wastegate compatible with oil and water-cooled center section
Compressor Wheel:
Inducer Diameter: 58mm
Exducer Diameter: 77mm
Material: Forged, Fully Machined
A/R Ratio: 0.60
Turbine Wheel:
Inducer Diameter: 68mm
Exducer Diameter: 62mm
Trim: 84
Material: Inconel
General Configuration:
Product Line: GTX Gen II
Frame Size: 35
Rotation: Standard
Cooling Type: Oil & Water
Bearing Type: Ceramic Dual Ball Bearing
Wastegate: External
Displacement Range: 2.0L – 4.5L
Horsepower Range: 400 – 750 HP (based on modifications and calibration)
Note: Maximum allowable turbo speed is 145,000 RPM. Exceeding this may result in failure. Installing a speed sensor (sold separately) is recommended to monitor shaft speed.
GTX3576R Gen II Supercore Assembly (turbine housing not included)
This product is intended solely for closed-course racing vehicles. It is not legal for use on public roads. Modifying your vehicle with this part may impact warranty, emissions compliance, or safety certifications. Ensure legal and safe installation by consulting your vehicle manufacturer and local laws.
