Spod BantamX with HD Control Panel – Universal | 36" Battery Cable (SKU: BXHDUNI36)

The Spod BantamX HD Universal System is an advanced 8-circuit solid-state power management solution that offers unmatched installation flexibility, intelligent control, and rugged durability. Featuring a compact BantamX module paired with the billet aluminum HD control panel, this system is ideal for managing lights, compressors, and other 12V/24V accessories with a clean, single-cable installation.

Key Features:

BantamX Control Module

• 8 solid-state circuits rated at 30A each (12.5 VDC)

• Expandable – control up to 32 circuits with additional modules

• 16-position terminal block for organized accessory wiring

• LVCO battery protection with manual override

• Smart MOSFET circuit protection (1.5–30A, self-healing)

• Integrated 100A inline fuse and 36" braided battery cable

• Supports 12V and 24V systems

• 2 RJ45 controller ports for Ethernet connections

• Built-in Bluetooth for app-based programming

• Powder-coated steel housing with silicone gasket for weather resistance

HD Control Panel

• Machined billet aluminum housing, powder coated black

• Silicone tactile switches with RGB backlighting

• 8 backlit switches with programmable functions: Dimming, Flash, Momentary, Strobe, and Switch Linking

• 3-color status lights (Red = On, White = Strobe, Blue = Feedback)

• Built-in Bluetooth LE for programming via iOS/Android app

• Panel lockout for security

• Adjustable backlight timer and brightness

• Comes with a 10ft CAT-6 Ethernet cable (extendable to 25ft)

• Includes sheet of 72 legends for switch labeling

App Functionality:

• Free sPOD App: Configure switch behavior, lighting modes, and circuit control

• Pro App (Paid): Adds timers, circuit lockout, auto-restart, deep sleep override, current limiting, and more

• App requires Bluetooth 4.0 and Android 8.0+ or iOS 11+

External Control Compatibility:

• Compatible with third-party controllers (e.g., Raspberry Pi, Arduino, Alpine KAC-001, sensors, etc.)

Vehicle Fitment:

• Universal – Suitable for any 12V or 24V vehicle application

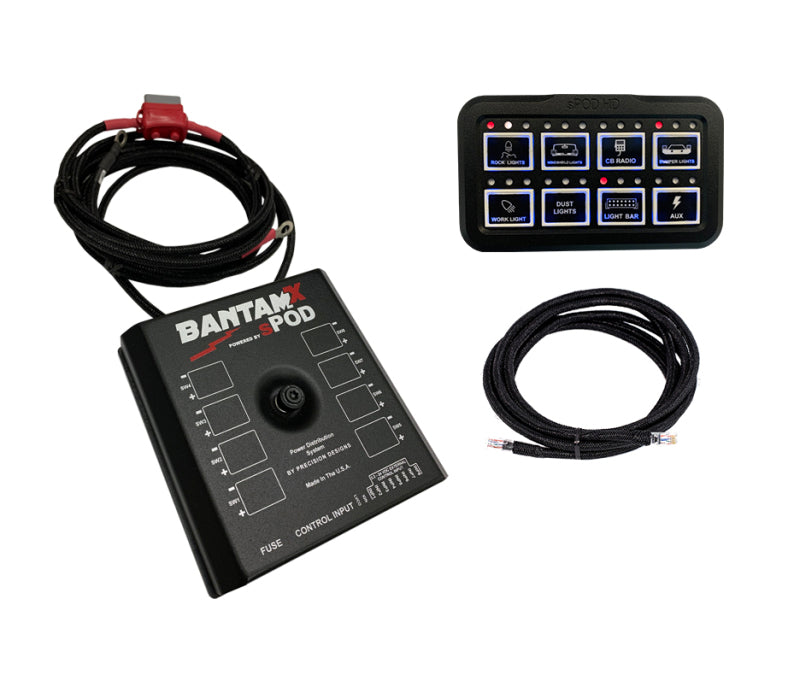

What's Included:

• (1) BantamX 8-Circuit Power Control Module

• (1) HD Control Panel with RGB Backlit Switches

• (1) 10ft CAT-6 Ethernet Control Cable

• (1) 36" Battery Cable with 100A Inline Fuse

• (1) Sheet of 72 Standard Legends

• Mounting Hardware
