Spod BantamX with Touchscreen & 36" Battery Cable – Universal (SKU: BXTSBUNI36)

The Spod BantamX with Touchscreen is a compact, fully programmable 8-circuit control system designed to simplify wiring and streamline the installation of 12V or 24V accessories. With a single Ethernet connection to the cab, this all-in-one solution offers safe, intelligent power distribution and robust control from an included touchscreen interface. Ideal for off-road, overlanding, and custom vehicle builds.

Key Features:

BantamX Control Module

• 8 circuits rated at 30A (expandable up to 32 circuits)

• Operates on 12VDC or 24VDC systems

• Integrated LVCO (Low Voltage Cutoff) with override

• Microprocessor-controlled MOSFETs with fault protection

• Daisy-chain up to 4 BantamX units

• Built-in Bluetooth for configuration via mobile app

• Weatherproof, powder-coated housing with integrated mounting hardware

Touchscreen Controller

• Touchscreen control of up to 32 circuits

• Real-time voltage, current, and temperature feedback

• Customizable switch legends (3 lines per switch)

• One-touch off, strobe, dimming, momentary & switch linking

• Deep sleep mode for power conservation

• Includes mounting bracket

• Bluetooth enabled for programming (limited range)

Mobile App Features:

• Free App: Dimming, strobe, flash, momentary, switch linking

• Pro App (Paid): Circuit timers, ignition control, current limiting, auto restart, latch/momentary input behavior, and more advanced customization

External Controller Compatibility:

• Third-party switches, Raspberry Pi, Arduino, Alpine KAC-001, thermostats, sensors, and more

Touchscreen Installation Note:

• Display may not operate below 20°F. Allow vehicle cab to warm before use.

Vehicle Fitment:

• Universal – Compatible with most 12V and 24V systems in a wide range of vehicles.

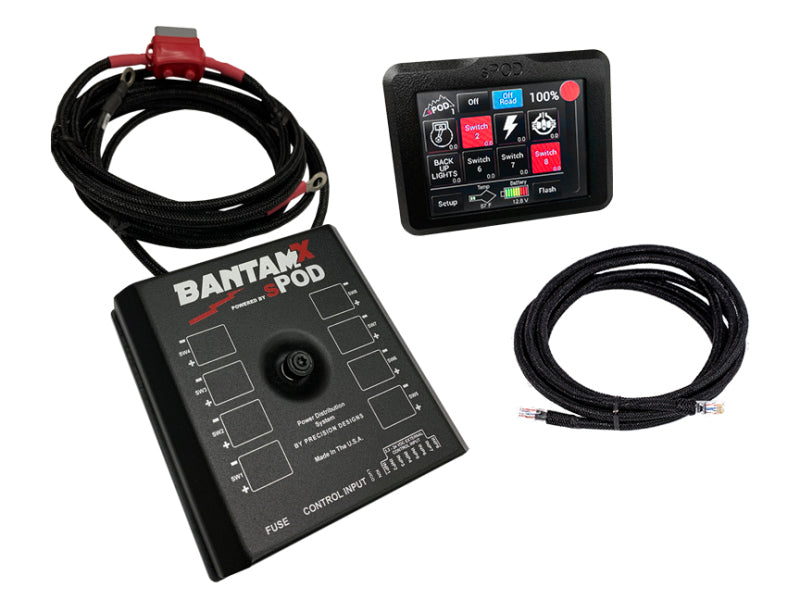

What's Included:

• (1) BantamX 8-Circuit Control Module

• (1) Touchscreen Controller with Mounting Bracket

• (1) 36" Battery Cable with 100A Inline Fuse

• (1) Ethernet Control Cable
