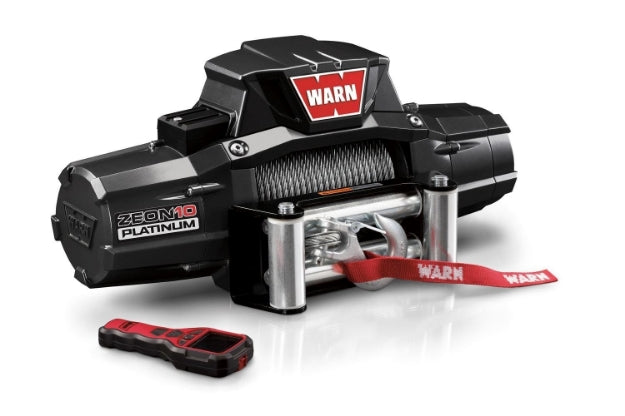

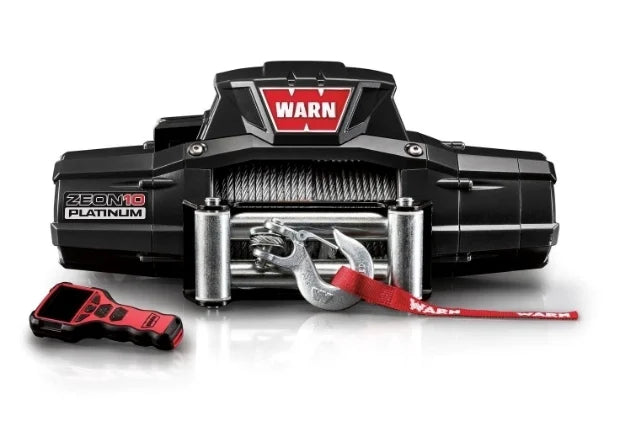

Warn 92810 ZEON 10 Platinum 12V Electric Winch – 10,000 lb Steel Rope

The Warn 92810 ZEON 10 Platinum Winch brings state-of-the-art winching technology to serious off-roaders and recovery professionals. Designed as a vehicle-mounted 12-volt electric winch, it delivers a 10,000-pound rated line pull and comes equipped with 80 feet of 3/8-inch aircraft-grade steel wire rope and a roller fairlead for smooth, controlled operation under heavy loads.

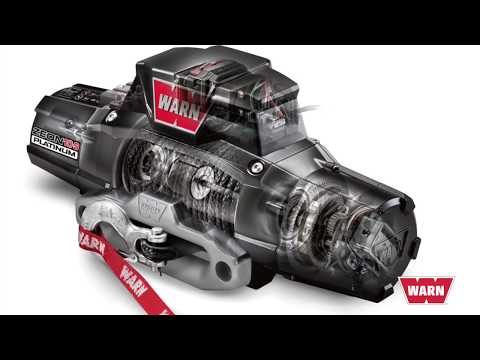

At the core of the ZEON Platinum series is the Advanced Wireless Remote, giving you full control of winch-in, winch-out, freespool, and clutch engagement—without ever touching the winch. The remote also provides real-time feedback on winch motor temperature and vehicle battery voltage and can control up to two 12-volt accessories. Combined with a high-speed motor, reinforced geartrain, automatic mechanical cone brake, and IP68 waterproofing, the Warn 92810 is built to perform reliably in the harshest recovery environments.

Key Features

• 10,000 lb rated line pull for demanding vehicle recovery

• Includes 80 ft of 3/8″ steel wire rope

• Roller fairlead for smooth rope handling

• Advanced Wireless Remote with clutch and winch control

• Remote displays motor temperature and vehicle battery voltage

• 20% faster line speed with upgraded motor and gear design

• Large-diameter aluminum drum with steel sleeve reduces rope wear

• IP68 waterproofing – highest rating in WARN truck/SUV lineup

• Convertible control pack for flexible mounting options

Technical Specs

• Product Line: ZEON 10 Platinum

• Type: Electric

• Mount Type: Vehicle Mounted

• Recommended Use: Vehicle Recovery

• Voltage: 12V

• Motor Type: Series Wound

• Electrical Control Type: Contactor

• Drive Style: 3-Stage Planetary

• Gear Ratio: 162:1

• Brake Type: Automatic Mechanical Cone

• Freespooling: Yes

Line, Drum & Fairlead

• Rope Material: Steel

• Rope Diameter: 3/8 in

• Rope Length: 80 ft

• Drum Material: Aluminum

• Fairlead Style: Roller

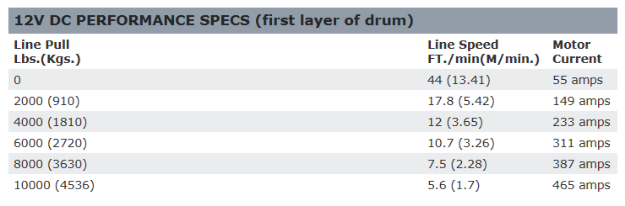

Performance

• Rated Line Pull: 10,000 lb (4,536 kg)

• Line Speed @ Max Load: 5.6 ft/min

• Max Amp Draw @ Load: 465 Amps

Remote & Mounting

• Remote Type: Wireless Handheld

• Remote Included: Yes

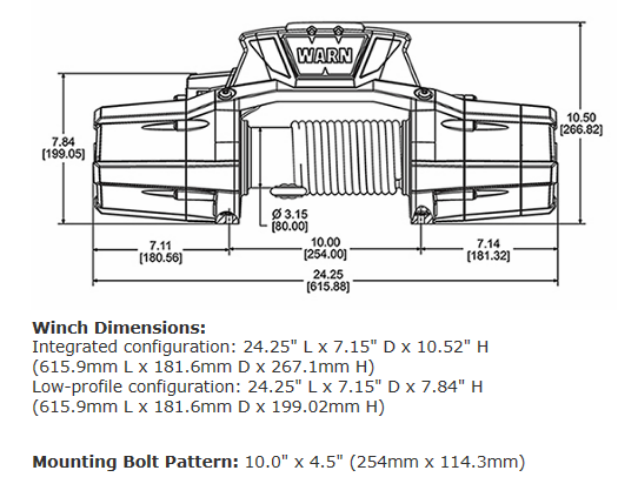

• Mounting Pattern: 10 in x 4.5 in

• Includes Mounting Hardware: Yes

• Finish: Black

• Weight: 103 lb

• Quantity: Complete Kit

Minor Fitment Notes

• Requires a compatible winch mount or aftermarket bumper

• Designed for 12V vehicle electrical systems

• Ideal for midsize and full-size trucks and SUVs

• Professional installation recommended

Warranty

• Mechanical Components: Limited Lifetime Warranty

• Electrical Components: Limited 7-Year Warranty
