Designed specifically for Nissan RB20, RB25, and RB26 Twin Cam engines using the Series 1 ignition system with external OEM ignitor modules, this complete engine management solution includes the Haltech Elite 2500 ECU and a terminated engine harness with breakout sub-harnesses for CAM angle sensor and ignition coils. This plug-and-play package is ideal for streamlined setup and advanced tuning flexibility.
Note: Compatible with Series 1 coils only. Utilizes factory-style CAS and ignition module configuration.
Key Features
-
Engine Compatibility:
-
Suits Nissan RB20DET, RB25DET, and RB26DETT (Twin Cam engines with Series 1 coils)
-
Configured for factory external ignition modules and early-style CAS
-
-
Plug-and-Play Harness:
-
Terminated engine harness with Series 1 coil sub-harness
-
Includes CAS breakout harness (R32/R33 type)
-
-
Elite ECU Performance:
-
Supports DBW, closed-loop O2, flex fuel, knock control, and advanced race tuning
-

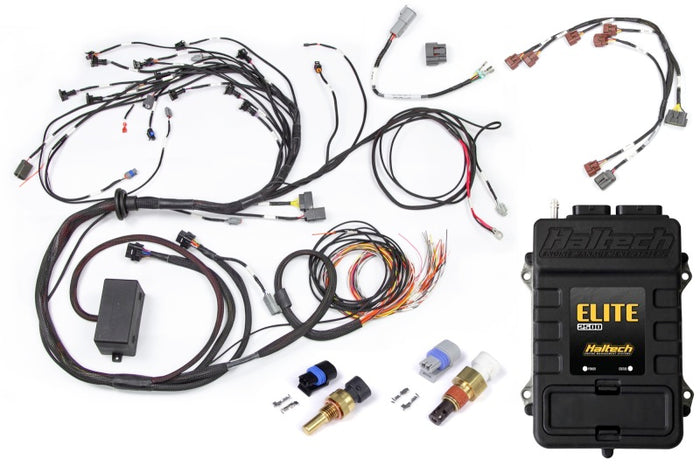

Included Components
-
Haltech Elite 2500 ECU with Drive-by-Wire and Race Functions
-
Terminated Engine Harness (HT-130326)
-
CAS Harness – R32/R33 CAM Angle Sensor Breakout (HT-130327)
-
Series 1 Coil Harness (HT-130331)
-
Air Temp Sensor – M14 x 1.5 Thread (HT-010200)
-
Coolant Temp Sensor – M12 x 1.5 Thread (HT-010300)
-
Auxiliary I/O Connector Pack
-
USB Programming Cable
-
Quick Start Guide
-
Full ECU Manual and Software Suite (CD/USB)
Vehicle Applications
-
Nissan RB20DET / RB25DET / RB26DETT (Twin Cam)
-
Series 1 Ignition Type with External OEM Ignitor Module
ECU Function Highlights
-
Support for 1–12 cylinders and 2–4 rotors
-
Closed-loop idle and O2 control
-
Variable camshaft control (up to 4 cams)
-
Long-term learning and 4D tuning with per-cylinder correction
-
On-board and laptop data logging (up to 200Hz)
-
Dual CAN Bus for dashes, OBDII, and sensor expansion
-
Launch control, traction control, anti-lag, nitrous and boost control
-
Advanced torque management and sequential turbo control options
-
Multiple programmable timers and engine protection strategies
