Haltech Elite 2500 + Terminated Engine Harness for Nissan RB Twin Cam (Series 1 Ignition Type) - HT-151308

Designed specifically for Nissan RB20, RB25, and RB26 Twin Cam engines using the Series 1 ignition system with external OEM ignitor modules, this complete engine management solution includes the Haltech Elite 2500 ECU and a terminated engine harness with breakout sub-harnesses for CAM angle sensor and ignition coils. This plug-and-play package is ideal for streamlined setup and advanced tuning flexibility.

Note: Compatible with Series 1 coils only. Utilizes factory-style CAS and ignition module configuration.

Key Features

• Engine Compatibility:

  • Suits Nissan RB20DET, RB25DET, and RB26DETT (Twin Cam engines with Series 1 coils)

  • Configured for factory external ignition modules and early-style CAS

• Plug-and-Play Harness:

  • Terminated engine harness with Series 1 coil sub-harness

  • Includes CAS breakout harness (R32/R33 type)

• Elite ECU Performance:

  • Supports DBW, closed-loop O2, flex fuel, knock control, and advanced race tuning

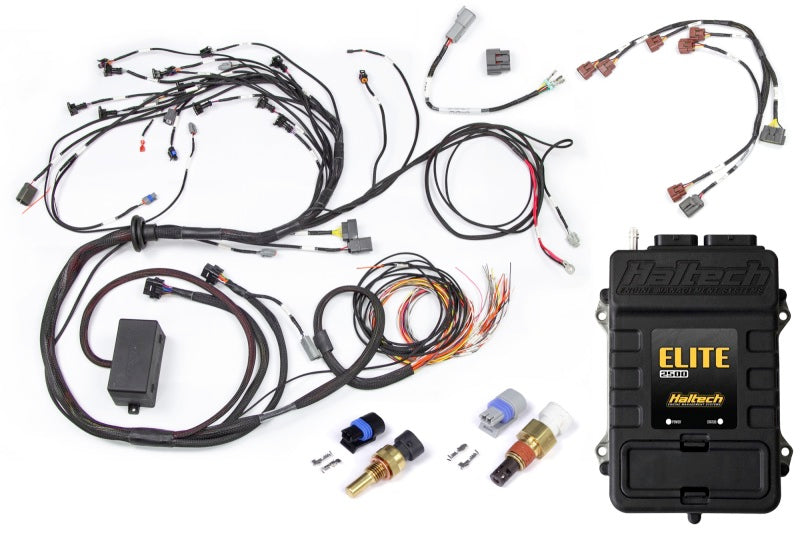

Included Components

• Haltech Elite 2500 ECU with Drive-by-Wire and Race Functions

• Terminated Engine Harness (HT-130326)

• CAS Harness – R32/R33 CAM Angle Sensor Breakout (HT-130327)

• Series 1 Coil Harness (HT-130331)

• Air Temp Sensor – M14 x 1.5 Thread (HT-010200)

• Coolant Temp Sensor – M12 x 1.5 Thread (HT-010300)

• Auxiliary I/O Connector Pack

• USB Programming Cable

• Quick Start Guide

• Full ECU Manual and Software Suite (CD/USB)

Vehicle Applications

• Nissan RB20DET / RB25DET / RB26DETT (Twin Cam)

• Series 1 Ignition Type with External OEM Ignitor Module

ECU Function Highlights

• Support for 1–12 cylinders and 2–4 rotors

• Closed-loop idle and O2 control

• Variable camshaft control (up to 4 cams)

• Long-term learning and 4D tuning with per-cylinder correction

• On-board and laptop data logging (up to 200Hz)

• Dual CAN Bus for dashes, OBDII, and sensor expansion

• Launch control, traction control, anti-lag, nitrous and boost control

• Advanced torque management and sequential turbo control options

• Multiple programmable timers and engine protection strategies
