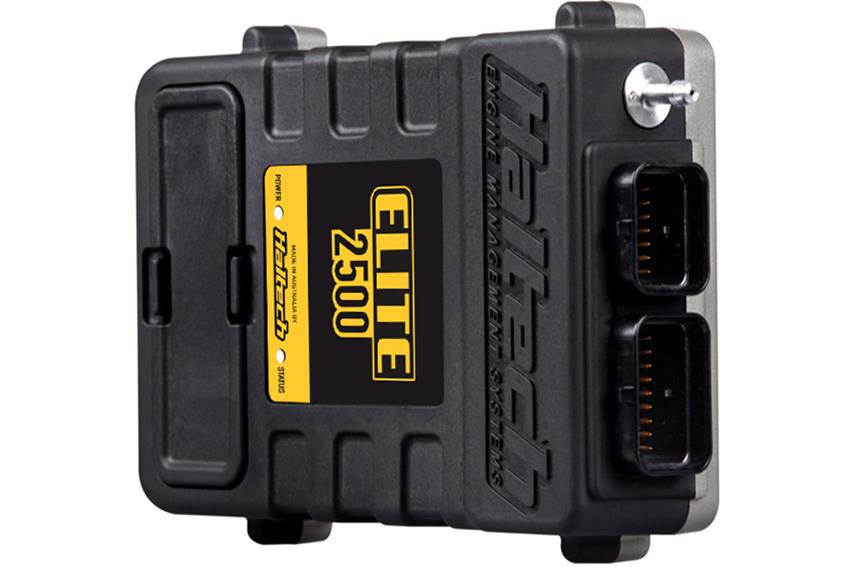

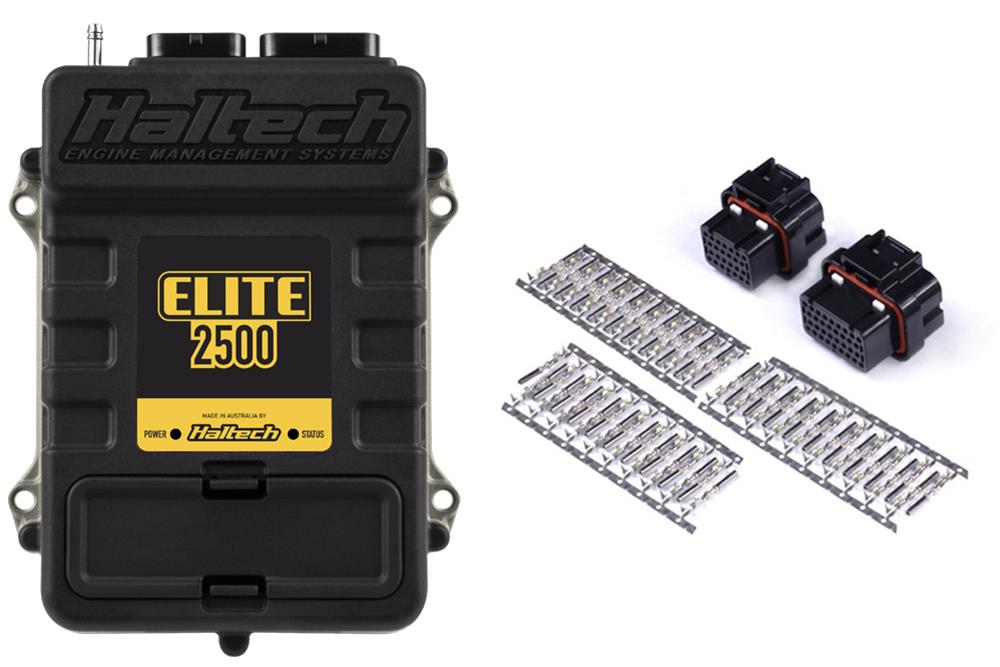

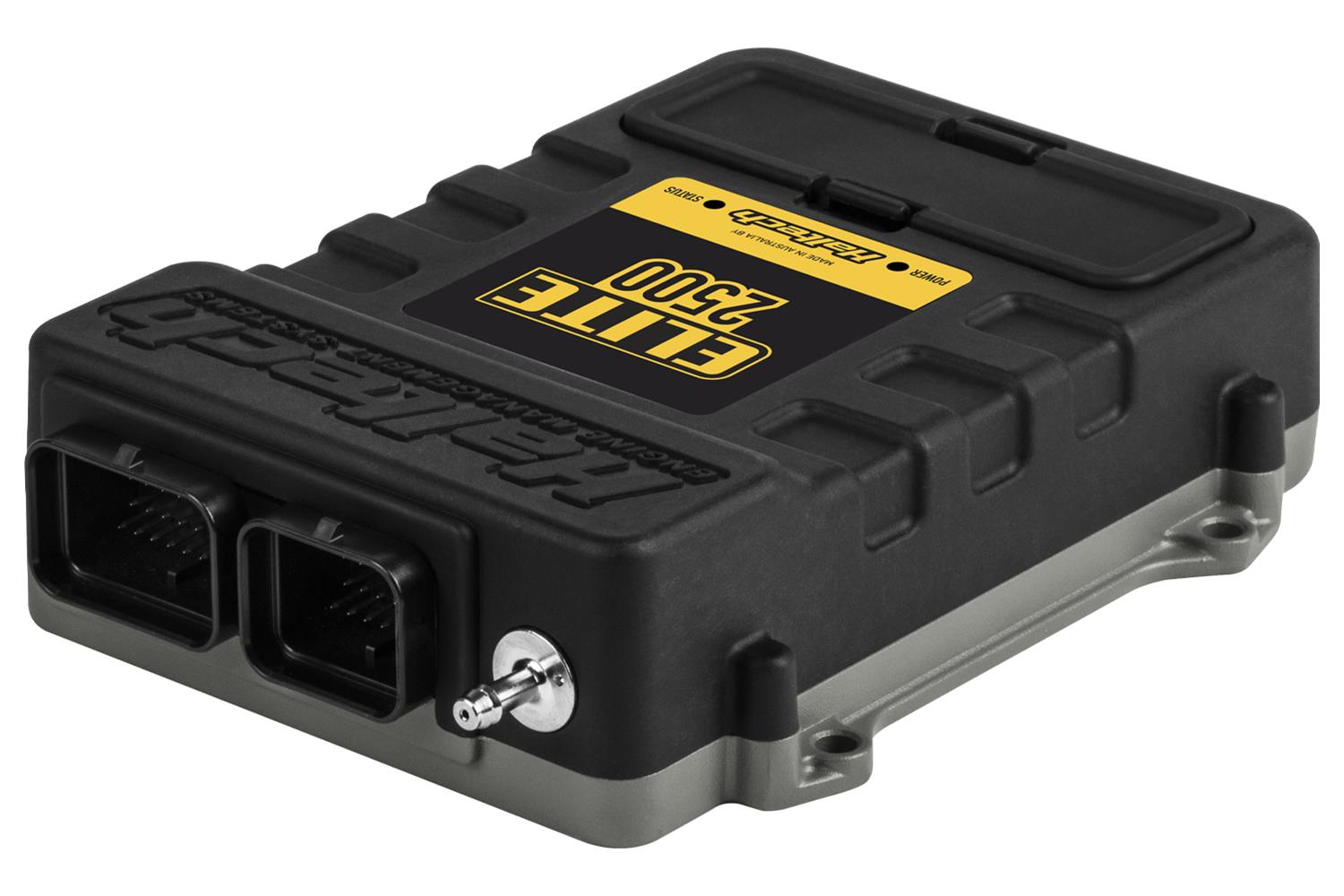

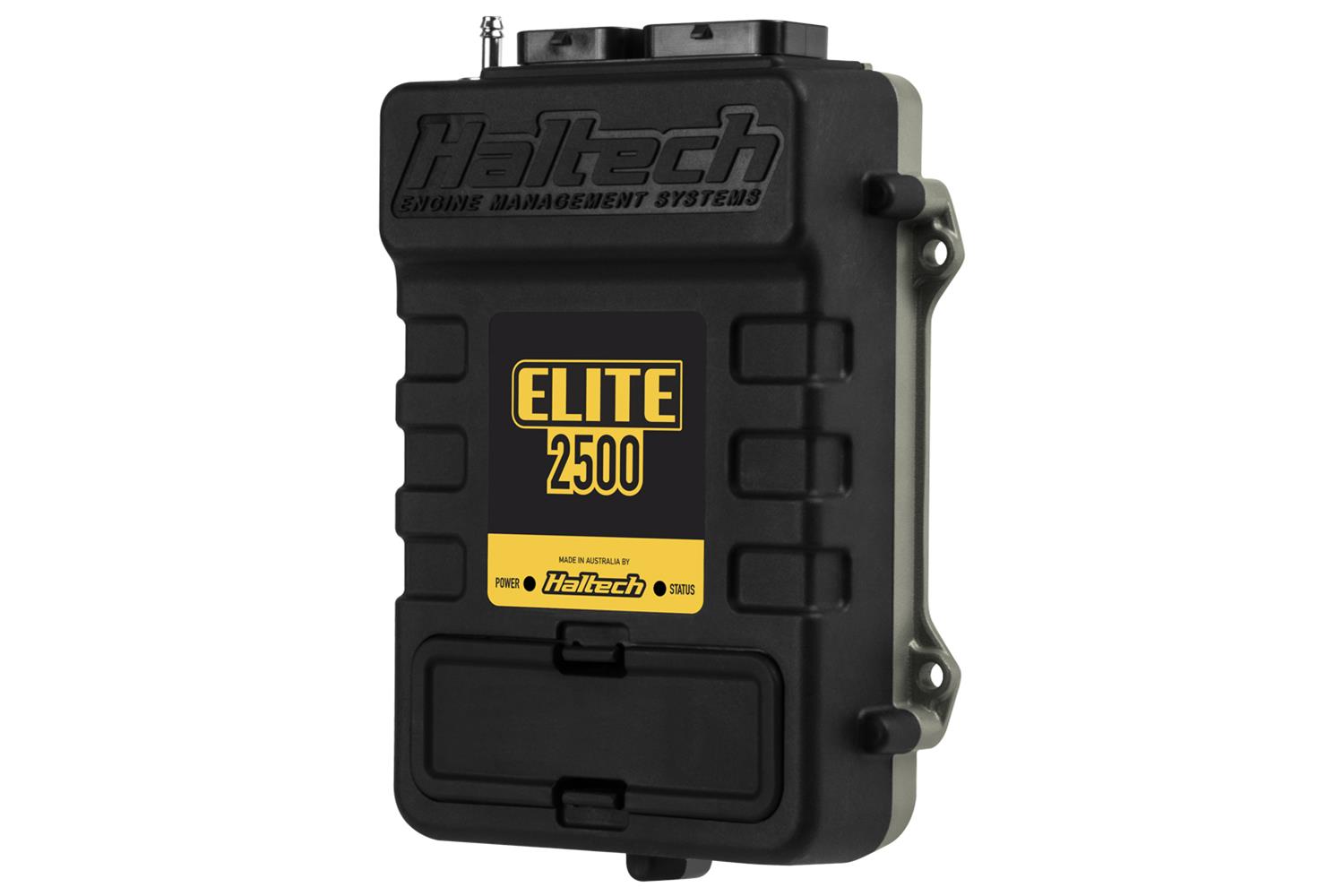

Haltech Elite 2500 ECU + Plug and Pin Set (AMP 26 & 34 Pin Superseal) - HT-151301

The Haltech Elite 2500 ECU paired with AMP 26 & 34 Pin Superseal plug and pin set offers a robust and flexible engine management solution for advanced EFI conversions and high-performance builds. Designed for 4–12 cylinder or 2–4 rotor engines, this fully programmable stand-alone ECU delivers cutting-edge control with easy integration using the included connector kit.

Important Emissions Notice:
This product is designed and sold for sanctioned off-road/competition use only and may not be used on public roads or highways unless a specific regulatory exemption applies.

Key Features:

• Stand-alone ECU with advanced race and DBW functions

• Includes:

  • Haltech Elite 2500 ECU

  • AMP 26 & 34 Pin Superseal 4-row, 3-key plug and pin set

  • Quickstart guide included for installation reference

ECU Highlights:

• Waterproof IP67-rated case

• Supports 1–12 cylinder and 2–4 rotor engines

• Sequential, staged, semi-sequential or batch injection

• Load sensing by TPS, MAP, or MAF

• 8 fuel and 8 ignition outputs

• 12 digital outputs, 10 analog inputs, 4 pulsed inputs

• USB tuning with NSP Calibration Software

• Dual CAN bus support for Haltech dashes and expansion

• On-board data logging (up to 40 channels, 5ms sample rate)

• Flex fuel, knock control, DBW, VCT, traction and launch control

• Support for advanced race functions including boost, nitrous, anti-lag, flat shift, trans brake, and torque management

Advanced Tuning Capabilities:

• 32 x 32 x 8 table resolution

• 4D tuning tables with per-cylinder 3D compensation

• Wideband O2 and EGT support via CAN

• Adjustable tuning by ethanol content, gear, speed, race time, ride height, and more

• Multiple safety limits and engine protection strategies

Applications:
Ideal for 4, 6, 8-cylinder or 2, 3, 4 rotor engines in custom EFI conversions and high-performance/race builds using DBW or multiple VCT setups.

Brand: Haltech
SKU: HT-151301
