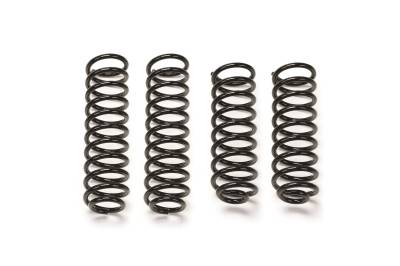

20-21 Jeep Gladiator 4WD Diesel 3 inch Trail Lift Front and Rear Long Travel Coils

Corner specific Dual Rate coils springs provide a level stance side to side and offer factory load carrying capacity with a smooth ride. As a true dual rate coil, the first stage of the coil allows the spring to respond to small bumps for a very complaint ride at lower speeds. As the spring travels further, the rate increases to absorb larger impacts and support cargo in the Jeep Gladiator. These American made springs are the best on the market for all around driving while providing increased suspension travel for offroad use.

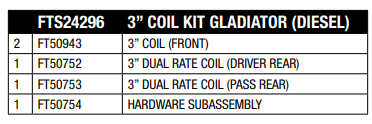

FTS24296 3” COIL KIT GLADIATOR (DIESEL)
2 FT50943 3” COIL (FRONT)
1 FT50752 3” DUAL RATE COIL (DRIVER REAR)
1 FT50753 3” DUAL RATE COIL (PASS REAR)
1 FT50754 HARDWARE SUBASSEMBLY

• Other Parts Required For A Complete Lift Kit

Additional information

Tires & Wheels

Stock Fenders

• Tire Size – 35/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/minor trimming
• Tire Size – 35/12.50R18 Wheel Size – 18X9 w/ 4.5in BS w/minor trimming
• Tire Size – 325/65R18 Wheel Size – 18X9 w/ 4.5in BS w/minor trimming
• Tire Size – 35/12.50R20 Wheel Size – 20X9 w/ 5in BS w/minor trimming
• Tire Size – 325/60R20 Wheel Size – 20X9 w/ 5in BS w/minor trimming

High Clearance Fenders

• Tire Size – 37/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/cutting
• Tire Size – 37/12.50R18 Wheel Size – 18X9 w/ 4.5in BS w/cutting
• Tire Size – 37/12.50R20 Wheel Size – 20X9 w/ 5in BS w/cutting
