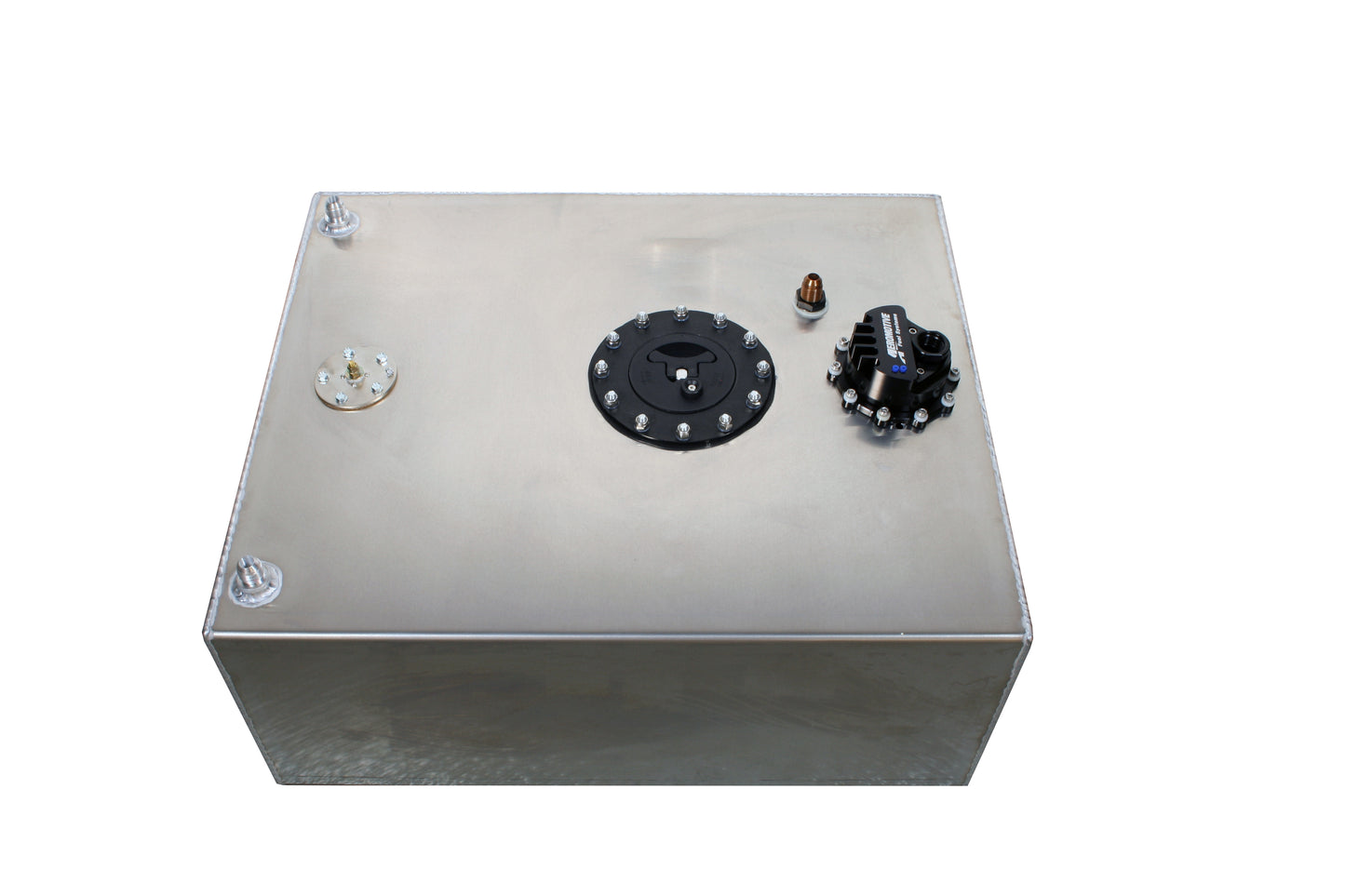

Aeromotive 20 Gallon Brushless 5.0 GPM Fuel Cell - 18373

The Aeromotive 18373 Fuel Cell features a 20-gallon capacity and an integrated brushless 5.0 GPM in-tank fuel pump module with a pre-pump fuel filter for high-performance fuel delivery. Designed for EFI and carbureted racing applications, this advanced fuel cell uses a new spur-gear pumping mechanism that provides efficient fuel flow with reduced current draw at higher EFI pressures. The brushless pump design delivers extended service life when used with methanol and ethanol fuels while remaining lighter than traditional Pro-Series pump systems. An external brushless controller ensures cooler fuel operation, simplified installation, and improved reliability. With a continuous operating pressure of 90 PSI and peak pressure capability up to 150 PSI, this fuel system is built to support demanding performance environments.

Key Features & Specs:

• 20-gallon fuel cell with integrated brushless in-tank fuel pump module
• High-flow brushless pump rated at 5.0 GPM
• New integral spur-gear pump design for efficient fuel delivery
• EFI rated flow: 1,250 lbs/hr @ 40 PSI and 13.5V
• Carbureted rated flow: 1,350 lbs/hr @ 9 PSI and 13.5V
• Continuous operating pressure: 90 PSI
• Peak pressure capability: up to 150 PSI (base plus boost)
• Reduced current draw at high EFI pressures
• Extended service life with methanol and ethanol fuels
• Integrated pre-pump fuel filter
• External brushless controller included for improved reliability
• ORB-10 outlet port
• Fuel cell dimensions: 20" W x 24" L x 10" H
• Requires 12–16 VDC power supply
• Not compatible with pulse width modulation systems or fuel pump speed controllers
• 16V charging systems require voltage regulator or step-down to 12V range

Fitment:

Universal
