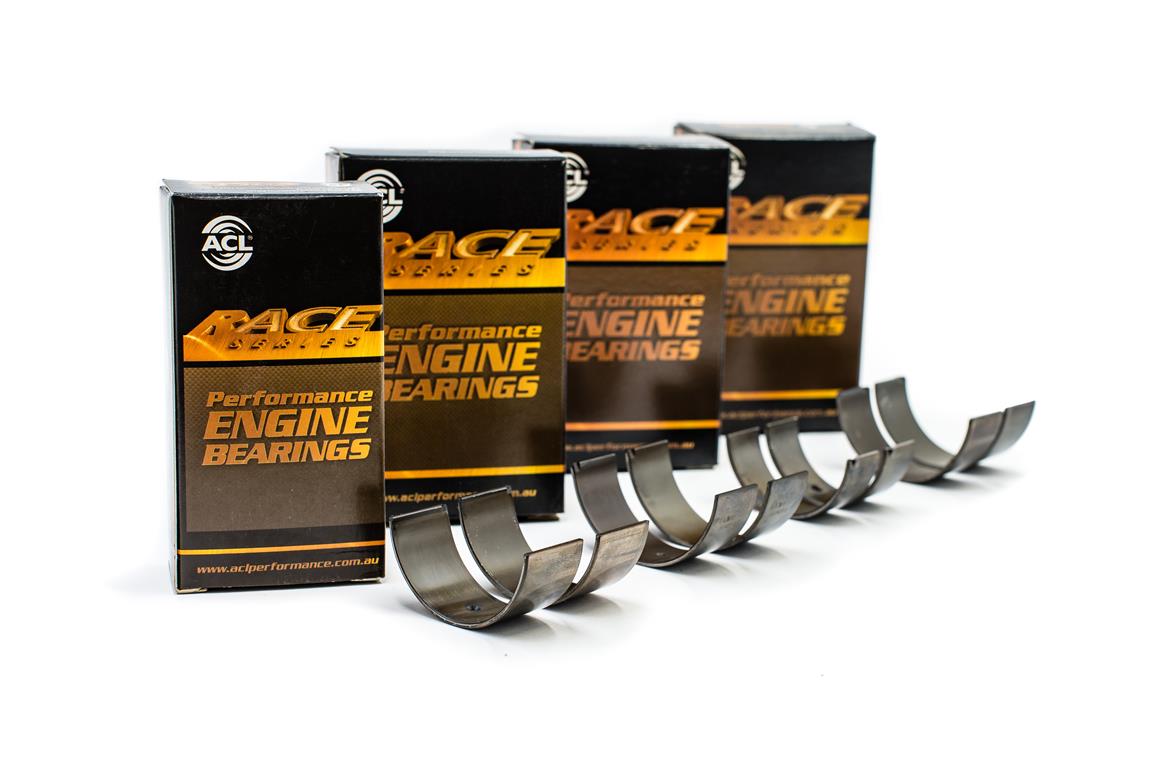

The ACL Race Series Conrod Bearing Set (.025) is designed for Honda H22 and F20C/F22C performance engines, providing unmatched reliability under high-RPM and high-load conditions. Built with ACL’s proven trimetal construction, these bearings deliver superior fatigue resistance, excellent oil film stability, and precise tolerances for performance and racing applications.
Key Features
.025 undersize conrod bearing set (also available in STD and .25)
No oil hole design
Trimetal construction with a high-strength overlay for fatigue resistance
Consistent wall tolerances ensure precise oil clearance
Suitable for high-RPM and high-performance builds
Identical half design for secure installation
Technical Specifications
Sizes Available: STD, .025, .25
Tunnel (housing) diameter: 51.004 – 51.024 mm
Shaft diameter: 47.980 – 48.000 mm
Max Wall Thickness: 1.496 mm
Max Length: 19.4 mm
Half Type: Identical halves
Note: No oil hole
Weight: 0.16 kg
Fitment / Applications
This ACL conrod bearing set fits the following Honda engines:
Honda Accord VI (CK, CG, CH, CF, CL) – H22A7 (2.2 Type-R, Euro R)
Honda Prelude IV (BB_) – H22A1, H22A2 (2.2 16V, VTi-R)
Honda Prelude V (BB_) – H22A2, H22A4, H22A5, H22A8, H22Z1 (2.2 16V)
Honda S2000 (AP) – F20C1, F20C2, F22C1 (2.0 & 2.2 VTEC)
