Specifications
Specifications |
|
Item Description |
HD/Perf Street Sprung |
Product Weight (lbs.) |
14.6 |
Torque Capacity (ft/lbs.) |
275 |
Torque Capacity Over OE |
54% |
Disc Material |
Organic |
Clutch Disc Diameter (Inches) |
8.8 |
Clutch Disc Diameter (Millimeters) |
224 |
Input Shaft Diameter (inches) |
1 |
Pressure Plate Type |
Heavy Duty |
Warranty |
12 Months (view details) |
Description

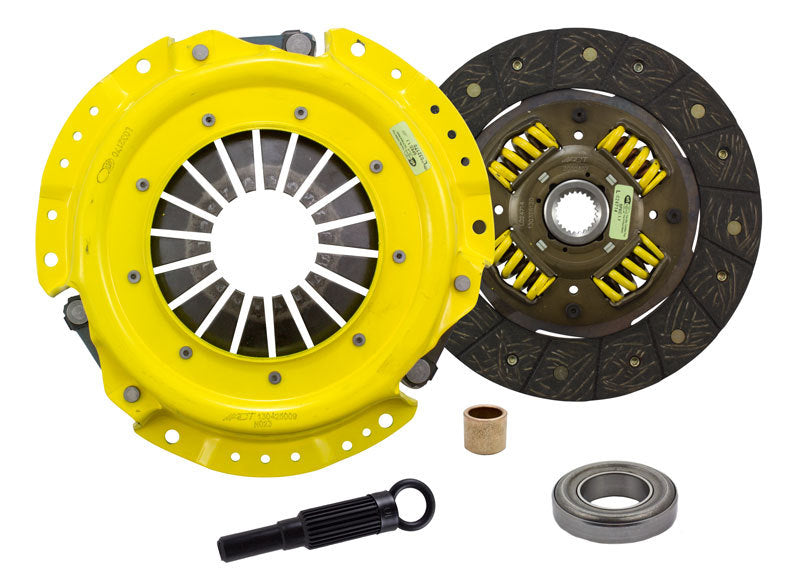

NX1-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.
Description |
|
Feel |
Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle |
Life |
Longer friction life, extended by ACT's exclusive diaphragm design |
Quality |
Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade |
Recommended Use |
Recommended for street and race use |
ACT Difference |
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
Vehicle Fitment
Fitment Info |
|
Application |
Engine |
1975 Nissan 280Z Base |
2.8 L6 GAS FI 2753cc | SOHC | Naturally Aspirated |
1975 Nissan 620 Base |
2.0 L4 GAS FI 1952cc | SOHC | Naturally Aspirated |
1976 Nissan 280Z Base |
2.8 L6 GAS FI 2753cc | SOHC | Naturally Aspirated |
1976 Nissan 620 Base |
2.0 L4 GAS FI 1952cc | SOHC | Naturally Aspirated |
1977 Nissan 280Z Base |
2.8 L6 GAS FI 2753cc | SOHC | Naturally Aspirated |
1977 Nissan 620 Base |
2.0 L4 GAS FI 1952cc | SOHC | Naturally Aspirated |
1978 Nissan 280Z Base |
2.8 L6 GAS FI 2753cc | SOHC | Naturally Aspirated |
1978 Nissan 620 Base |
2.0 L4 GAS FI 1952cc | SOHC | Naturally Aspirated |
1979 Nissan 280ZX Base |
2.8 L6 GAS FI 2753cc | SOHC | Naturally Aspirated |
1979 Nissan 620 Base |
2.0 L4 GAS FI 1952cc | SOHC | Naturally Aspirated |
1980 Nissan 280ZX Base |
2.8 L6 GAS FI 2753cc | SOHC | Naturally Aspirated |
1980 Nissan 280ZX GL |
2.8 L6 GAS FI 2753cc | SOHC | Naturally Aspirated |
1980 Nissan 720 Base |
2.0 L4 GAS FI 1952cc | SOHC | Naturally Aspirated |
1980 Nissan 720 Deluxe |
2.0 L4 GAS FI 1952cc | SOHC | Naturally Aspirated |
1981 Nissan 280ZX 2+2 GL |
2.8 L6 GAS ELECTRONIC 2753cc | SOHC | Naturally Aspirated |
1981 Nissan 280ZX Base |
2.8 L6 GAS FI 2753cc | SOHC | Naturally Aspirated |
1981 Nissan 280ZX GL |
2.8 L6 GAS FI 2753cc | SOHC | Naturally Aspirated |
1981 Nissan 720 Base |
2.2 L4 GAS FI 2187cc | SOHC | Naturally Aspirated |
1981 Nissan 720 Deluxe |
2.2 L4 GAS FI 2187cc | SOHC | Naturally Aspirated |
1981 Nissan 720 Deluxe |
2.2 L4 GAS FI 2164cc | OHV | Naturally Aspirated |
1981 Nissan Maxima SL |
2.8 L6 GAS FI 2793cc |
1981 Nissan Maxima SL |
2.4 L6 GAS FI 2393cc |
1982 Nissan 280ZX Base |
2.8 L6 GAS FI 2753cc | SOHC | Naturally Aspirated |
1982 Nissan 720 Base |
2.2 L4 GAS FI 2187cc | SOHC | Naturally Aspirated |
1982 Nissan 720 Deluxe |
2.2 L4 GAS FI 2187cc | SOHC | Naturally Aspirated |
1982 Nissan 720 Deluxe |
2.2 L4 GAS FI 2164cc | OHV | Naturally Aspirated |
1982 Nissan Maxima GL |
2.4 L6 GAS FI 2393cc | SOHC | Naturally Aspirated |
1982 Nissan Maxima GL |
2.8 L6 GAS FI 2793cc | SOHC | Naturally Aspirated |
1983 Nissan 280ZX Base |
2.8 L6 GAS FI 2753cc | SOHC | Naturally Aspirated |
1983 Nissan 720 Base |
2.2 L4 GAS FI 2187cc | SOHC | Naturally Aspirated |
1983 Nissan 720 Deluxe |
2.2 L4 GAS FI 2164cc | OHV | Naturally Aspirated |
1983 Nissan 720 Deluxe |
2.2 L4 GAS FI 2187cc | SOHC | Naturally Aspirated |
1983 Nissan Maxima GL |
2.8 L6 GAS FI 2793cc | SOHC | Naturally Aspirated |
1983 Nissan Maxima GL |
2.4 L6 GAS FI 2393cc | SOHC | Naturally Aspirated |
1984 Nissan 720 Base |
2.0 L4 GAS FI 1952cc | Naturally Aspirated |
1984 Nissan 720 Base |
2.4 L4 GAS FI 2389cc | Naturally Aspirated |
1984 Nissan 720 Deluxe |
2.4 L4 GAS FI 2389cc | Naturally Aspirated |
1984 Nissan Maxima GL |
2.4 L6 GAS FI 2393cc | SOHC | Naturally Aspirated |
1985 Nissan 720 Base |
2.0 L4 GAS FI 1952cc | Naturally Aspirated |
1985 Nissan 720 Base |
2.4 L4 GAS FI 2389cc | Naturally Aspirated |
1985 Nissan 720 Deluxe |
2.4 L4 GAS FI 2389cc | Naturally Aspirated |
1985 Nissan 720 Sport Truck |
2.4 L4 GAS FI 2389cc | Naturally Aspirated |
1986 Nissan 720 Base |
2.4 L4 GAS FI 2389cc | Naturally Aspirated |
1986 Nissan 720 Base |
2.0 L4 GAS FI 1952cc | Naturally Aspirated |
1986 Nissan 720 Deluxe |
2.4 L4 GAS FI 2389cc | Naturally Aspirated |
1986 Nissan 720 Sport Truck |
2.4 L4 GAS FI 2389cc | Naturally Aspirated |
1989 Nissan 240SX SE |
2.4 L4 GAS FI 2389cc | SOHC | Naturally Aspirated |
1989 Nissan 240SX XE |
2.4 L4 GAS FI 2389cc | SOHC | Naturally Aspirated |
1990 Nissan 240SX SE |
2.4 L4 GAS FI 2389cc | SOHC | Naturally Aspirated |
1990 Nissan 240SX XE |
2.4 L4 GAS FI 2389cc | SOHC | Naturally Aspirated |
1990 Nissan Axxess SE |
2.4 L4 GAS FI 2389cc | SOHC | Naturally Aspirated |
1990 Nissan Axxess XE |
2.4 L4 GAS FI 2389cc | SOHC | Naturally Aspirated |
1995 Nissan 240SX Base |
2.4 L4 GAS FI 2389cc | DOHC | Naturally Aspirated |
1995 Nissan 240SX SE |
2.4 L4 GAS FI 2389cc | DOHC | Naturally Aspirated |
1996 Nissan 240SX Base |
2.4 L4 GAS FI 2389cc | DOHC | Naturally Aspirated |
1996 Nissan 240SX SE |
2.4 L4 GAS FI 2389cc | DOHC | Naturally Aspirated |
1997 Nissan 240SX Base |
2.4 L4 GAS FI 2389cc | DOHC | Naturally Aspirated |
1997 Nissan 240SX LE |
2.4 L4 GAS FI 2389cc | DOHC | Naturally Aspirated |
1997 Nissan 240SX SE |
2.4 L4 GAS FI 2389cc | DOHC | Naturally Aspirated |
1998 Nissan 240SX Base |
2.4 L4 GAS FI 2389cc | DOHC | Naturally Aspirated |
1998 Nissan 240SX LE |
2.4 L4 GAS FI 2389cc | DOHC | Naturally Aspirated |
1998 Nissan 240SX SE |
2.4 L4 GAS FI 2389cc | DOHC | Naturally Aspirated |
