ACT 1991 Mazda Miata HD/Race Sprung 6 Pad Clutch Kit - eliteracefab.com
ACT 1991 Mazda Miata HD/Race Sprung 6 Pad Clutch Kit - eliteracefab.com
ACT 1991 Mazda Miata HD/Race Sprung 6 Pad Clutch Kit - eliteracefab.com
Click to zoom in

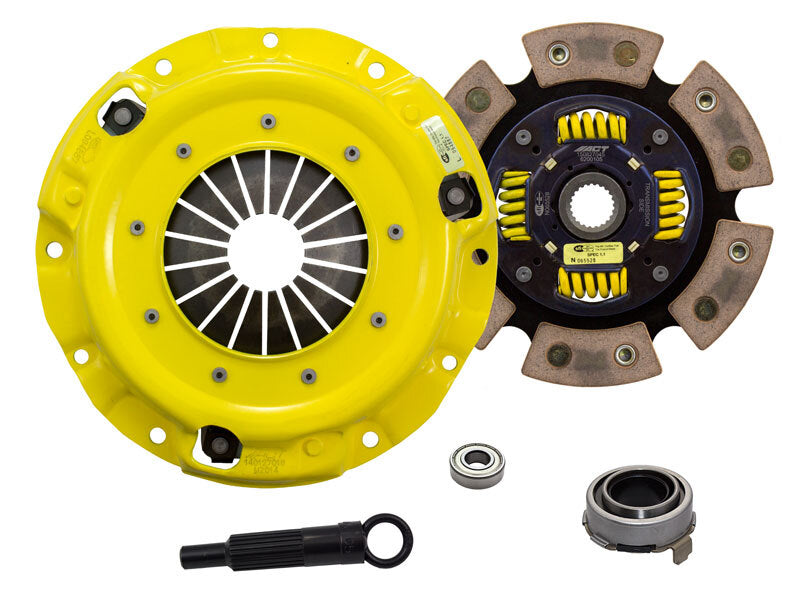

ACT ZM2-HDG6 Mazda Miata HD/Race Sprung 6 Pad Clutch Kit

2 sold in last 8 hours
ACT
ACTZM2-HDG6
In stock
Clutch Kits - Single
$693.00 $541.00
Specifications Specifications Item Description HD/Race Sprung 6 Pad Product Weight (lbs.) 12.9 Torque Capacity (ft/lbs.) 310  Torque Capacity Over OE 74% Disc Material Ceramic Clutch Disc Diameter (Inches) 8.8 Clutch...

ACT ZM2-HDG6 Mazda Miata HD/Race Sprung 6 Pad Clutch Kit

Specifications

Specifications

Item Description

HD/Race Sprung 6 Pad

Product Weight (lbs.)

12.9

Torque Capacity (ft/lbs.)

310

Torque Capacity Over OE

74%

Disc Material

Ceramic

Clutch Disc Diameter (Inches)

8.8

Clutch Disc Diameter (Millimeters)

224

Input Shaft Diameter (inches)

0.9375

Pressure Plate Type

Heavy Duty

Warranty

12 Months (view details)

Description

ZM2-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Description

Feel

Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle

Life

Moderate friction life, extended by ACT's exclusive diaphragm design

Quality

Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance

Recommended Use

Recommended for high horsepower street or race use

ACT Difference

100% clamp load tested and dynamically computer balanced for smooth high RPM reliability



Vehicle Fitment

Fitment Info
Application Engine
1990 Mazda Miata Base 1.6 L4 GAS FI 1597cc | DOHC
1991 Mazda Miata Base 1.6 L4 GAS FI 1597cc | DOHC
1991 Mazda Miata SE 1.6 L4 GAS FI 1597cc | DOHC
1992 Mazda Miata Base 1.6 L4 GAS FI 1597cc | DOHC
1993 Mazda Miata Base 1.6 L4 GAS FI 1597cc | DOHC
1993 Mazda Miata LE 1.6 L4 GAS FI 1597cc | DOHC
1994 Mazda Miata Base 1.8 L4 GAS FI 1839cc | DOHC
1994 Mazda Miata M Edition 1.8 L4 GAS FI 1839cc | DOHC
1995 Mazda Miata Base 1.8 L4 GAS FI 1839cc | DOHC
1995 Mazda Miata M Edition 1.8 L4 GAS FI 1839cc | DOHC
1996 Mazda Miata Base 1.8 L4 GAS FI 1839cc | DOHC
1996 Mazda Miata M Edition 1.8 L4 GAS FI 1839cc | DOHC
1997 Mazda Miata Base 1.8 L4 GAS FI 1839cc | DOHC
1997 Mazda Miata M Edition 1.8 L4 GAS FI 1839cc | DOHC
1997 Mazda Miata STO 1.8 L4 GAS FI 1839cc | DOHC
1999 Mazda Miata 10th Anniversary 1.8 L4 GAS FI 1839cc | DOHC
1999 Mazda Miata Base 1.8 L4 GAS FI 1839cc | DOHC
2000 Mazda Miata Base 1.8 L4 GAS FI 1839cc | DOHC
2000 Mazda Miata LS 1.8 L4 GAS FI 1839cc | DOHC
2000 Mazda Miata SE 1.8 L4 GAS FI 1839cc | DOHC
2001 Mazda Miata Base 1.8 L4 GAS FI 1839cc | DOHC
2001 Mazda Miata LS 1.8 L4 GAS FI 1839cc | DOHC
2001 Mazda Miata SE 1.8 L4 GAS FI 1839cc | DOHC
2002 Mazda Miata Base 1.8 L4 GAS FI 1839cc | DOHC
2002 Mazda Miata LS 1.8 L4 GAS FI 1839cc | DOHC
2002 Mazda Miata SE 1.8 L4 GAS FI 1839cc | DOHC
2003 Mazda Miata Base 1.8 L4 GAS FI 1839cc | DOHC
2003 Mazda Miata LS 1.8 L4 GAS FI 1839cc | DOHC
2003 Mazda Miata SE 1.8 L4 GAS FI 1839cc | DOHC
2003 Mazda Miata Shinsen 1.8 L4 GAS FI 1839cc | DOHC
2004 Mazda Miata Base 1.8 L4 GAS FI 1839cc | DOHC
2004 Mazda Miata LS 1.8 L4 GAS FI 1839cc | DOHC
2004 Mazda Miata Mazdaspeed 1.8 L4 GAS FI 1839cc | DOHC
2005 Mazda Miata Base 1.8 L4 GAS FI 1839cc | DOHC
2005 Mazda Miata LS 1.8 L4 GAS FI 1839cc | DOHC
2005 Mazda Miata Mazdaspeed 1.8 L4 GAS FI 1839cc | DOHC
