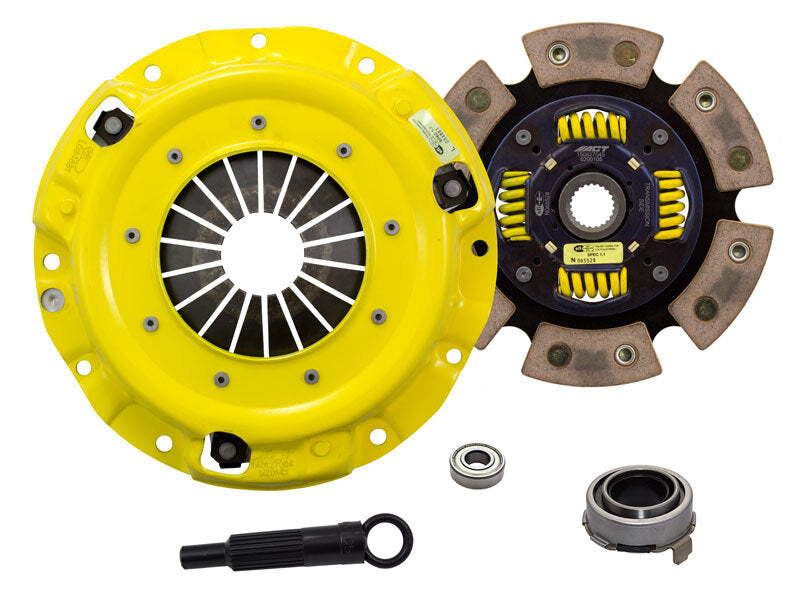

ACT ZM2-XTG6 Mazda Miata XT/Race Sprung 6 Pad Clutch Kit

2 sold in last 8 hours
ACT
ACTZM2-XTG6
In stock
Clutch Kits - Single
$767.00 $598.00
Specifications Specifications Item Description XT/Race Sprung 6 Pad Product Weight (lbs.) 13.4 Torque Capacity (ft/lbs.) 405  Torque Capacity Over OE 126% Disc Material Ceramic Clutch Disc Diameter (Inches) 8.8 Clutch...

ACT ZM2-XTG6 Mazda Miata XT/Race Sprung 6 Pad Clutch Kit
Description

Specifications

Specifications

Item Description

XT/Race Sprung 6 Pad

Product Weight (lbs.)

13.4

Torque Capacity (ft/lbs.)

405

Torque Capacity Over OE

126%

Disc Material

Ceramic

Clutch Disc Diameter (Inches)

8.8

Clutch Disc Diameter (Millimeters)

224

Input Shaft Diameter (inches)

0.9375

Pressure Plate Type

Xtreme

Warranty

12 Months (view details)

Description

ZM2-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Description

Feel

Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle

Life

Moderate friction life, extended by ACT's exclusive diaphragm design

Quality

Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance

Recommended Use

Recommended for high horsepower street or race use

ACT Difference

100% clamp load tested and dynamically computer balanced for smooth high RPM reliability





Instructions/Warranty

Product Warranty

Installation Instructions





Vehicle Fitment

Fitment Info

Application

Engine

1990 Mazda Miata Base

1.6 L4 GAS FI 1597cc | DOHC

1991 Mazda Miata Base

1.6 L4 GAS FI 1597cc | DOHC

1991 Mazda Miata SE

1.6 L4 GAS FI 1597cc | DOHC

1992 Mazda Miata Base

1.6 L4 GAS FI 1597cc | DOHC

1993 Mazda Miata Base

1.6 L4 GAS FI 1597cc | DOHC

1993 Mazda Miata LE

1.6 L4 GAS FI 1597cc | DOHC

1994 Mazda Miata Base

1.8 L4 GAS FI 1839cc | DOHC

1994 Mazda Miata M Edition

1.8 L4 GAS FI 1839cc | DOHC

1995 Mazda Miata Base

1.8 L4 GAS FI 1839cc | DOHC

1995 Mazda Miata M Edition

1.8 L4 GAS FI 1839cc | DOHC

1996 Mazda Miata Base

1.8 L4 GAS FI 1839cc | DOHC

1996 Mazda Miata M Edition

1.8 L4 GAS FI 1839cc | DOHC

1997 Mazda Miata Base

1.8 L4 GAS FI 1839cc | DOHC

1997 Mazda Miata M Edition

1.8 L4 GAS FI 1839cc | DOHC

1997 Mazda Miata STO

1.8 L4 GAS FI 1839cc | DOHC

1999 Mazda Miata 10th Anniversary

1.8 L4 GAS FI 1839cc | DOHC

1999 Mazda Miata Base

1.8 L4 GAS FI 1839cc | DOHC

2000 Mazda Miata Base

1.8 L4 GAS FI 1839cc | DOHC

2000 Mazda Miata LS

1.8 L4 GAS FI 1839cc | DOHC

2000 Mazda Miata SE

1.8 L4 GAS FI 1839cc | DOHC

2001 Mazda Miata Base

1.8 L4 GAS FI 1839cc | DOHC

2001 Mazda Miata LS

1.8 L4 GAS FI 1839cc | DOHC

2001 Mazda Miata SE

1.8 L4 GAS FI 1839cc | DOHC

2002 Mazda Miata Base

1.8 L4 GAS FI 1839cc | DOHC

2002 Mazda Miata LS

1.8 L4 GAS FI 1839cc | DOHC

2002 Mazda Miata SE

1.8 L4 GAS FI 1839cc | DOHC

2003 Mazda Miata Base

1.8 L4 GAS FI 1839cc | DOHC

2003 Mazda Miata LS

1.8 L4 GAS FI 1839cc | DOHC

2003 Mazda Miata SE

1.8 L4 GAS FI 1839cc | DOHC

2003 Mazda Miata Shinsen

1.8 L4 GAS FI 1839cc | DOHC

2004 Mazda Miata Base

1.8 L4 GAS FI 1839cc | DOHC

2004 Mazda Miata LS

1.8 L4 GAS FI 1839cc | DOHC

2004 Mazda Miata Mazdaspeed

1.8 L4 GAS FI 1839cc | DOHC

2005 Mazda Miata Base

1.8 L4 GAS FI 1839cc | DOHC

2005 Mazda Miata LS

1.8 L4 GAS FI 1839cc | DOHC

2005 Mazda Miata Mazdaspeed

1.8 L4 GAS FI 1839cc | DOHC
