Specifications
Specifications |
|
Item Description |
Sport/Race Rigid 6 Pad |
Product Weight (lbs.) |
12.5 |
Torque Capacity (ft/lbs.) |
280 |
Torque Capacity Over OE |
52% |
Disc Material |
Ceramic |
Clutch Disc Diameter (Inches) |
8.7 |
Clutch Disc Diameter (Millimeters) |
220 |
Input Shaft Diameter (inches) |
1.03125 |
Pressure Plate Type |
Sport |
Warranty |
12 Months (view details) |
Description

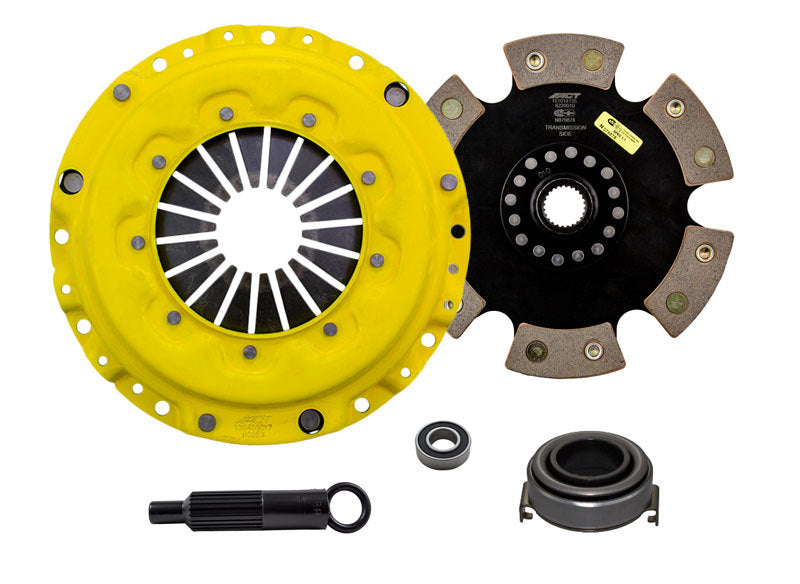

AI4-SPR6 kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
Description |
|
Feel |
Light to moderate pedal effort, aggressive engagement, increased gear rattle |
Life |
Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear |
Quality |
Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance |
Recommended Use |
Recommended for race use only |
ACT Difference |
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
Vehicle Fitment
Fitment Info
Application Engine
1994 Acura Integra GS-R 1.8 L4 GAS FI 1797cc
1994 Acura Integra LS 1.8 L4 GAS FI 1834cc
1994 Acura Integra RS 1.8 L4 GAS FI 1834cc
1994 Honda Civic del Sol VTEC 1.6 L4 GAS FI 1588cc
1995 Acura Integra GS-R 1.8 L4 GAS FI 1797cc
1995 Acura Integra LS 1.8 L4 GAS FI 1834cc
1995 Acura Integra RS 1.8 L4 GAS FI 1834cc
1995 Acura Integra Special Edition 1.8 L4 GAS FI 1834cc
1995 Honda Civic del Sol VTEC 1.6 L4 GAS FI 1588cc
1996 Acura Integra GS-R 1.8 L4 GAS FI 1797cc
1996 Acura Integra LS 1.8 L4 GAS FI 1834cc
1996 Acura Integra RS 1.8 L4 GAS FI 1834cc
1996 Acura Integra Special Edition 1.8 L4 GAS FI 1834cc
1996 Honda Civic del Sol VTEC 1.6 L4 GAS FI 1595cc
1997 Acura Integra GS 1.8 L4 GAS FI 1834cc
1997 Acura Integra GS-R 1.8 L4 GAS FI 1797cc
1997 Acura Integra LS 1.8 L4 GAS FI 1834cc
1997 Acura Integra RS 1.8 L4 GAS FI 1834cc
1997 Acura Integra Type R 1.8 L4 GAS FI 1797cc
1997 Honda Civic del Sol VTEC 1.6 L4 GAS FI 1595cc
1998 Acura Integra GS 1.8 L4 GAS FI 1834cc
1998 Acura Integra GS-R 1.8 L4 GAS FI 1797cc
1998 Acura Integra LS 1.8 L4 GAS FI 1834cc
1998 Acura Integra RS 1.8 L4 GAS FI 1834cc
1998 Acura Integra Type R 1.8 L4 GAS FI 1797cc
1998 Honda CR-V EX 2.0 L4 GAS FI 1972cc
1998 Honda CR-V LX 2.0 L4 GAS FI 1972cc
1999 Acura Integra GS 1.8 L4 GAS FI 1834cc
1999 Acura Integra GS-R 1.8 L4 GAS FI 1797cc
1999 Acura Integra LS 1.8 L4 GAS FI 1834cc
1999 Acura Integra Type R 1.8 L4 GAS FI 1797cc
1999 Honda CR-V EX 2.0 L4 GAS FI 1972cc
1999 Honda CR-V LX 2.0 L4 GAS FI 1972cc
1999 Honda Civic Si 1.6 L4 GAS FI 1595cc
2000 Acura Integra GS 1.8 L4 GAS FI 1834cc
2000 Acura Integra GS-R 1.8 L4 GAS FI 1797cc
2000 Acura Integra LS 1.8 L4 GAS FI 1834cc
2000 Acura Integra Type R 1.8 L4 GAS FI 1797cc
2000 Honda CR-V EX 2.0 L4 GAS FI 1972cc
2000 Honda CR-V LX 2.0 L4 GAS FI 1972cc
2000 Honda Civic Si 1.6 L4 GAS FI 1595cc
2001 Acura Integra GS 1.8 L4 GAS FI 1834cc
2001 Acura Integra GS-R 1.8 L4 GAS FI 1797cc
2001 Acura Integra LS 1.8 L4 GAS FI 1834cc
2001 Acura Integra Type R 1.8 L4 GAS FI 1797cc
2001 Honda CR-V EX 2.0 L4 GAS FI 1972cc
2001 Honda CR-V LX 2.0 L4 GAS FI 1972cc
