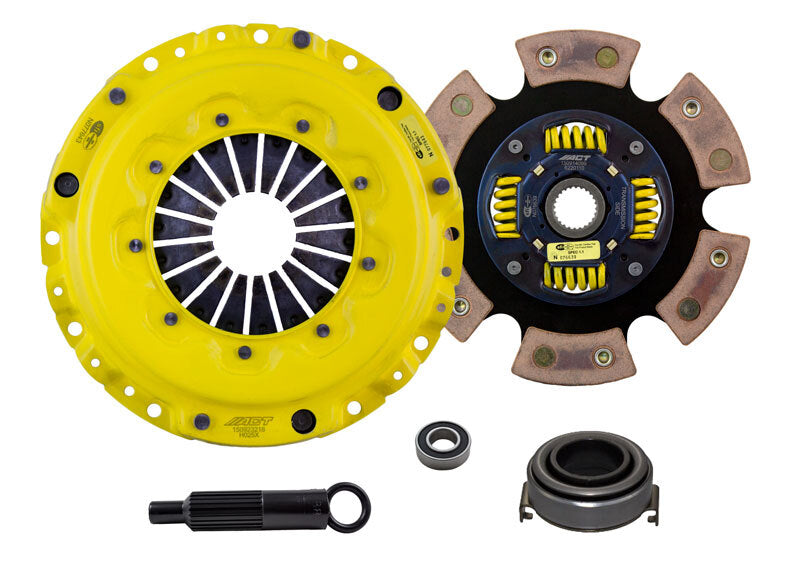

ACT AI4-XTG6 Acura/Honda XT/Race Sprung 6 Pad Clutch Kit
Specifications Specifications Item Description XT/Race Sprung 6 Pad Product Weight (lbs.) 13.4 Torque Capacity (ft/lbs.) 410 ...
- $589.00
$755.00- $589.00
- Unit price
- per
Please hurry! Only 4 left in stock
Subtotal:
$589.00
10 customers are viewing this product
Couldn't load pickup availability
Description
x
Specifications
|
Specifications |
|
|
Item Description |
XT/Race Sprung 6 Pad |
|
Product Weight (lbs.) |
13.4 |
|
Torque Capacity (ft/lbs.) |
410 |
|
Torque Capacity Over OE |
120% |
|
Disc Material |
Ceramic |
|
Clutch Disc Diameter (Inches) |
8.7 |
|
Clutch Disc Diameter (Millimeters) |
220 |
|
Input Shaft Diameter (inches) |
1.03125 |
|
Pressure Plate Type |
Xtreme |
|
Warranty |
12 Months (view details) |
Description
AI4-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.
|
Description |
|
|
Feel |
Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle |
|
Life |
Moderate friction life, extended by ACT's exclusive diaphragm design |
|
Quality |
Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance |
|
Recommended Use |
Recommended for high horsepower street or race use |
|
ACT Difference |
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
Instructions/Warranty
Vehicle Fitment
|
Fitment Info |
|
|
Application |
Engine |
|
1994 Acura Integra GS-R |
1.8 L4 GAS FI 1797cc |
|
1994 Acura Integra LS |
1.8 L4 GAS FI 1834cc |
|
1994 Acura Integra RS |
1.8 L4 GAS FI 1834cc |
|
1994 Honda Civic del Sol VTEC |
1.6 L4 GAS FI 1588cc |
|
1995 Acura Integra GS-R |
1.8 L4 GAS FI 1797cc |
|
1995 Acura Integra LS |
1.8 L4 GAS FI 1834cc |
|
1995 Acura Integra RS |
1.8 L4 GAS FI 1834cc |
|
1995 Acura Integra Special Edition |
1.8 L4 GAS FI 1834cc |
|
1995 Honda Civic del Sol VTEC |
1.6 L4 GAS FI 1588cc |
|
1996 Acura Integra GS-R |
1.8 L4 GAS FI 1797cc |
|
1996 Acura Integra LS |
1.8 L4 GAS FI 1834cc |
|
1996 Acura Integra RS |
1.8 L4 GAS FI 1834cc |
|
1996 Acura Integra Special Edition |
1.8 L4 GAS FI 1834cc |
|
1996 Honda Civic del Sol VTEC |
1.6 L4 GAS FI 1595cc |
|
1997 Acura Integra GS |
1.8 L4 GAS FI 1834cc |
|
1997 Acura Integra GS-R |
1.8 L4 GAS FI 1797cc |
|
1997 Acura Integra LS |
1.8 L4 GAS FI 1834cc |
|
1997 Acura Integra RS |
1.8 L4 GAS FI 1834cc |
|
1997 Acura Integra Type R |
1.8 L4 GAS FI 1797cc |
|
1997 Honda Civic del Sol VTEC |
1.6 L4 GAS FI 1595cc |
|
1998 Acura Integra GS |
1.8 L4 GAS FI 1834cc |
|
1998 Acura Integra GS-R |
1.8 L4 GAS FI 1797cc |
|
1998 Acura Integra LS |
1.8 L4 GAS FI 1834cc |
|
1998 Acura Integra RS |
1.8 L4 GAS FI 1834cc |
|
1998 Acura Integra Type R |
1.8 L4 GAS FI 1797cc |
|
1998 Honda CR-V EX |
2.0 L4 GAS FI 1972cc |
|
1998 Honda CR-V LX |
2.0 L4 GAS FI 1972cc |
|
1999 Acura Integra GS |
1.8 L4 GAS FI 1834cc |
|
1999 Acura Integra GS-R |
1.8 L4 GAS FI 1797cc |
|
1999 Acura Integra LS |
1.8 L4 GAS FI 1834cc |
|
1999 Acura Integra Type R |
1.8 L4 GAS FI 1797cc |
|
1999 Honda CR-V EX |
2.0 L4 GAS FI 1972cc |
|
1999 Honda CR-V LX |
2.0 L4 GAS FI 1972cc |
|
1999 Honda Civic Si |
1.6 L4 GAS FI 1595cc |
|
2000 Acura Integra GS |
1.8 L4 GAS FI 1834cc |
|
2000 Acura Integra GS-R |
1.8 L4 GAS FI 1797cc |
|
2000 Acura Integra LS |
1.8 L4 GAS FI 1834cc |
|
2000 Acura Integra Type R |
1.8 L4 GAS FI 1797cc |
|
2000 Honda CR-V EX |
2.0 L4 GAS FI 1972cc |
|
2000 Honda CR-V LX |
2.0 L4 GAS FI 1972cc |
|
2000 Honda Civic Si |
1.6 L4 GAS FI 1595cc |
|
2001 Acura Integra GS |
1.8 L4 GAS FI 1834cc |
|
2001 Acura Integra GS-R |
1.8 L4 GAS FI 1797cc |
|
2001 Acura Integra LS |
1.8 L4 GAS FI 1834cc |
|
2001 Acura Integra Type R |
1.8 L4 GAS FI 1797cc |
|
2001 Honda CR-V EX |
2.0 L4 GAS FI 1972cc |
|
2001 Honda CR-V LX |
2.0 L4 GAS FI 1972cc |
