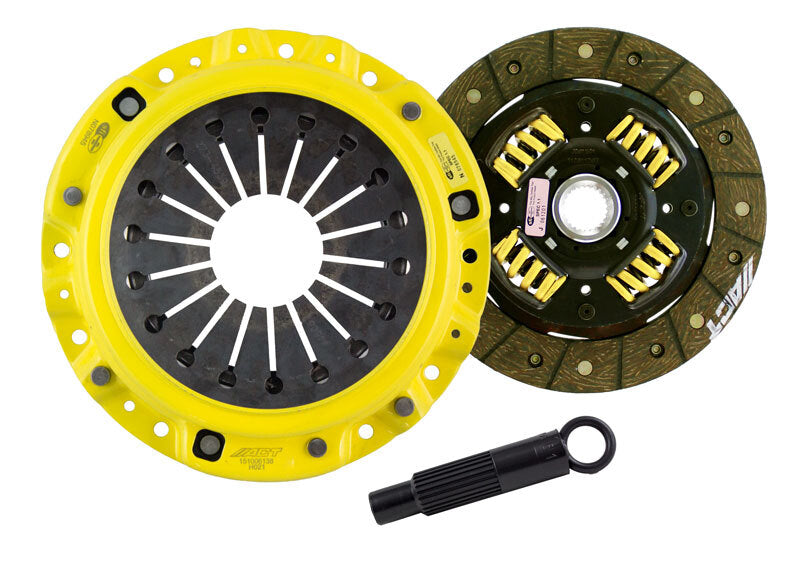

ACT HD Street Clutch Kit 2000-2009 Honda S2000 - HS1-HDSS

212mm | 370 ft-lb | 2000-2009 Honda S2000 | Bearings Not Included

The ACT HS1-HDSS Heavy Duty Performance Street Sprung clutch kit gives the 2000-2009 Honda S2000 a 370 ft-lb engine torque rating with the progressive engagement of an organic street disc. The Heavy Duty pressure plate increases holding force, while a spring-centered hub cushions torsional vibration through the driveline. Steel-backed organic lining helps transfer heat and strengthens the friction assembly, and reduced engagement cushioning supports quicker shift action. This package includes the alignment tool and grease, with the release bearing, pilot bearing, and flywheel excluded. It is a useful option when the rest of the clutch service components are being selected separately.

Key Features & Specs:

• Brand: ACT
• Part Number: HS1-HDSS
• Clutch Configuration: Single disc
• Disc Series: Performance Street Sprung
• Product Weight: 13.2 lb
• Torque Capacity at Engine/Crank: 370 ft-lb
• Torque Capacity Increase over OE: 39%
• Pressure Plate Type: Heavy Duty
• Clutch Disc Diameter: 212 mm
• Input Spline Count: 24
• Input Shaft Diameter: 1.03125 in
• Disc Material: Organic
• Alignment Tool Included: Yes
• Grease Included: Yes
• Disc Hub: Sprung
• Clutch Slave Cylinder Included: No
• Clutch Master Cylinder Included: No
• Grade Type: Performance
• Flywheel Included: No
• Pilot Bushing Included: No
• Release Bearing Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: No
• Pressure Plate Bolts Included: No
• Feature: Four-stage heat-treated pressure plate diaphragm
• Feature: Precision cover stampings support rigidity and consistency
• Feature: Copper-containing organic friction material supports heat transfer
• Feature: Steel-backed friction lining supports strength and durability
• Feature: Reduced engagement cushioning supports quicker shift action
• Pressure Plate and Disc Assembly: Included

Fitment:

• 2000-2003 Honda S2000 Base — 2.0L L4, 1997cc
• 2004-2009 Honda S2000 Base — 2.2L L4, 2157cc
• 2008-2009 Honda S2000 CR — 2.2L L4, 2157cc

Notes:

• Kit does not include bearings.
• ACT recommends 300-500 miles of mild engagement for organic street discs before spirited driving or racing. Follow the application-specific installation instructions.
