Specifications
Specifications |
|
Item Description |
HD-M/Race Sprung 6 Pad |
Product Weight (lbs.) |
16.7 |
Torque Capacity (ft/lbs.) |
555 |
Torque Capacity Over OE |
63% |
Disc Material |
Ceramic |
Clutch Disc Diameter (Inches) |
9 |
Clutch Disc Diameter (Millimeters) |
228 |
Input Shaft Diameter (inches) |
1 |
Input Spline Quantity |
24 |
Pressure Plate Type |
Heavy Duty |
Warranty |
12 Months (view details) |
Description

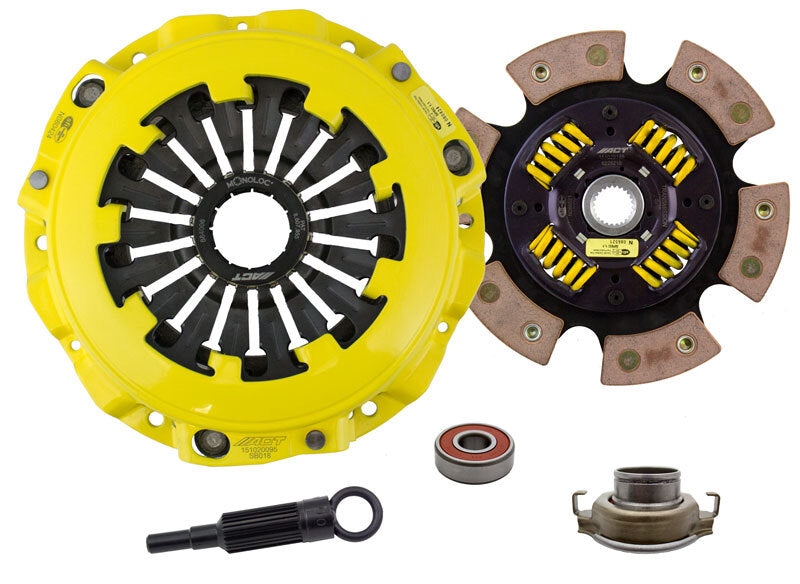

SB9-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened Chrome-moly steel construction will provide years of service.
Description |
|
Feel |
Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle, confidence during hard shifts |
Life |
Moderate friction life, extended by ACT's exclusive diaphragm design, dramatic improvement in release mechanism life |
Quality |
Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance, major improvement in release mechanism |
Recommended Use |
Recommended for high horsepower street or race use |
ACT Difference |
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT's patented Monoloc |
Vehicle Fitment
Fitment Info |
|
Application |
Engine |
1991 Subaru Legacy Sport |
2.2 H4 GAS FI 2212cc | SOHC | Turbocharged |
1992 Subaru Legacy Sport |
2.2 H4 GAS FI 2212cc | SOHC | Turbocharged |
1993 Subaru Legacy Sport |
2.2 H4 GAS FI 2212cc | SOHC | Turbocharged |
1994 Subaru Legacy Sport |
2.2 H4 GAS FI 2212cc | SOHC | Turbocharged |
2002 Subaru Impreza WRX |
2.0 H4 GAS FI 1994cc | DOHC | Turbocharged |
2003 Subaru Impreza WRX |
2.0 H4 GAS FI 1994cc | DOHC | Turbocharged |
2004 Subaru Baja Turbo |
2.5 H4 GAS FI 2458cc | DOHC | Turbocharged |
2004 Subaru Forester XT |
2.5 H4 GAS FI 2458cc | DOHC | Turbocharged |
2004 Subaru Impreza WRX |
2.0 H4 GAS FI 1994cc | DOHC | Turbocharged |
2005 Saab 9-2X Aero |
GAS FI |
2005 Subaru Baja Turbo |
2.5 H4 GAS FI 2458cc | DOHC | Turbocharged |
2005 Subaru Forester XT |
2.5 H4 GAS FI 2458cc | DOHC | Turbocharged |
2005 Subaru Forester XT Premium |
2.5 H4 GAS FI 2458cc | DOHC | Turbocharged |
2005 Subaru Impreza WRX |
2.0 H4 GAS FI 1994cc | DOHC | Turbocharged |
2008 Subaru Legacy GT spec.B |
2.5 H4 GAS FI 2458cc |
2009 Subaru Legacy GT spec.B |
2.5 H4 GAS FI 2458cc |
1993 Subaru Impreza GT, WRX [JDM] |
2.0L F4 FI| T |
1994 Subaru Impreza GT, WRX [JDM] |
2.0L F4 FI| T |
1995 Subaru Impreza GT, WRX [JDM] |
2.0L F4 FI| T |
1996 Subaru Impreza GT, WRX [JDM] |
2.0L F4 FI| T |
1997 Subaru Impreza GT, WRX [JDM] |
2.0L F4 FI| T |
1998 Subaru Impreza GT, WRX [JDM] |
2.0L F4 FI| T |
1999 Subaru Impreza GT, WRX [JDM] |
2.0L F4 FI| T |
2000 Subaru Impreza GT, WRX [JDM] |
2.0L F4 FI| T |
2001 Subaru Impreza WRX [JDM] |
2.0L F4 FI| T |
2002 Subaru Impreza WRX [JDM] |
2.0L F4 FI| T |
2003 Subaru Impreza WRX [JDM] |
2.0L F4 FI| T |
2004 Subaru Impreza WRX [JDM] |
2.0L F4 FI| T |
2005 Subaru Impreza WRX [JDM] |
2.0L F4 FI| T |
