ACT HD Street Clutch Kit with Streetlite Flywheel - SB11-HDSS

240mm Conversion Kit | 449 ft-lb | Organic Sprung Disc | Streetlite Flywheel

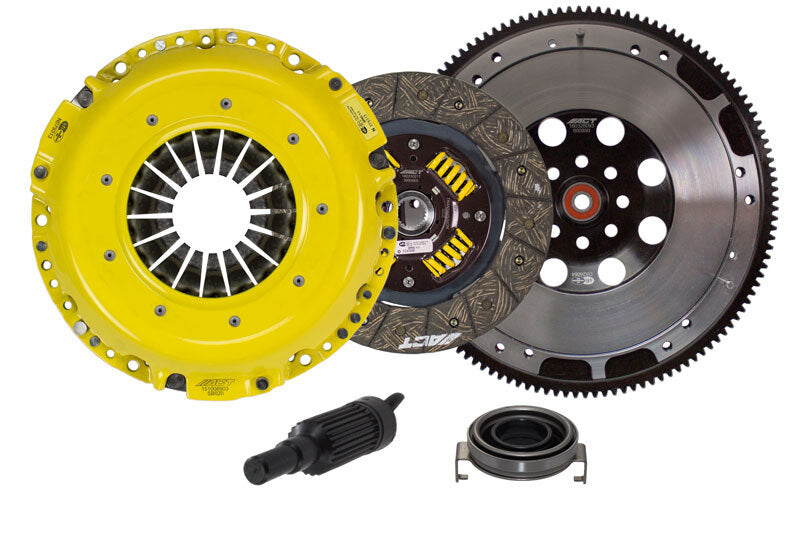

The ACT SB11-HDSS Heavy Duty Performance Street Sprung kit upgrades the listed Subaru applications with a matched 240mm clutch and Streetlite flywheel. Its 449 ft-lb engine torque rating gives the build additional holding capacity, while an organic spring-centered disc supports progressive engagement and cushions drivetrain vibration. Steel-backed lining helps transfer heat, and the lighter flywheel reduces rotating inertia for a more responsive engine. The package includes the required flywheel, release bearing, pilot bearing, alignment tool, and pressure plate bolts. This is a conversion assembly, so observe the flywheel requirement and the revised factory-component compatibility note rather than selecting it by clutch diameter alone.

Key Features & Specs:

• Brand: ACT
• Part Number: SB11-HDSS
• Clutch Configuration: Single disc
• Disc Series: Performance Street Sprung
• Product Weight: 28.6 lb
• Torque Capacity at Engine/Crank: 449 ft-lb
• Torque Capacity Increase over OE: 46%
• Pressure Plate Type: Heavy Duty
• Clutch Disc Diameter: 240 mm
• Input Spline Count: 24
• Input Shaft Diameter: 1 in
• Disc Material: Organic
• Alignment Tool Included: Yes
• Flywheel Included: Yes
• Release Bearing Included: Yes
• Flywheel Type: Streetlite
• Grease Included: Yes
• Disc Hub: Sprung
• Clutch Slave Cylinder Included: No
• Clutch Master Cylinder Included: No
• Grade Type: Performance
• Pressure Plate Bolts Included: Yes
• Flywheel Bolts Included: No
• Pilot Bushing Included: No
• Pilot Bearing Included: Yes
• Feature: Four-stage heat-treated pressure plate diaphragm
• Feature: Precision cover stampings support rigidity and consistency
• Feature: Copper-containing organic friction material supports heat transfer
• Feature: Steel-backed friction lining supports strength and durability
• Feature: Reduced engagement cushioning supports quicker shift action
• Pressure Plate and Disc Assembly: Included

Fitment:

• 2006 Subaru Baja Turbo
• 2008 Subaru Forester Sports 2.5 XT
• 2006-2008 Subaru Forester XT Limited
• 2006-2014 Subaru Impreza WRX
• 2006-2007,2010-2014 Subaru Impreza WRX Limited
• 2009-2014 Subaru Impreza WRX Premium
• 2006-2007 Subaru Impreza WRX TR
• 2005-2006 Subaru Legacy GT
• 2005,2007-2009 Subaru Legacy GT Limited
• 2006-2009 Subaru Legacy GT spec.B
• 2005-2006 Subaru Outback XT
• 2005-2009 Subaru Outback XT Limited
• 2015-2024 Subaru WRX Base; ACT conversion assembly required; do not mix with revised factory 240mm components introduced at VIN J806877 during the 2018 model year.
• 2015-2026 Subaru WRX Limited; ACT conversion assembly required; do not mix with revised factory 240mm components introduced at VIN J806877 during the 2018 model year.
• 2015-2026 Subaru WRX Premium; ACT conversion assembly required; do not mix with revised factory 240mm components introduced at VIN J806877 during the 2018 model year.
• 2026 Subaru WRX Series.Yellow; ACT conversion assembly required; do not mix with revised factory 240mm components introduced at VIN J806877 during the 2018 model year.
• 2024 Subaru WRX TR; ACT conversion assembly required; do not mix with revised factory 240mm components introduced at VIN J806877 during the 2018 model year.
• 2025-2026 Subaru WRX TS; ACT conversion assembly required; do not mix with revised factory 240mm components introduced at VIN J806877 during the 2018 model year.

Notes:

• Conversion Kit. Replaces original 230mm clutch. Must use ACT Flywheel (included in kit). Subaru has incorporated 240mm clutch components into production during mid-2018MY production starting with VIN J806877. ACT clutch kits and flywheels are not compatible with the revised OEM components. Pressure plate bolts included (M8-1.25 x 16mm).
• ACT recommends 300-500 miles of mild engagement for organic street discs before spirited driving or racing. Follow the application-specific installation instructions.
