ACT 26-Spline Clutch Alignment Tool BMW - AT105

26 Splines | 1.375in Shaft Size | BMW | Input-Shaft Pilot Bearing Required

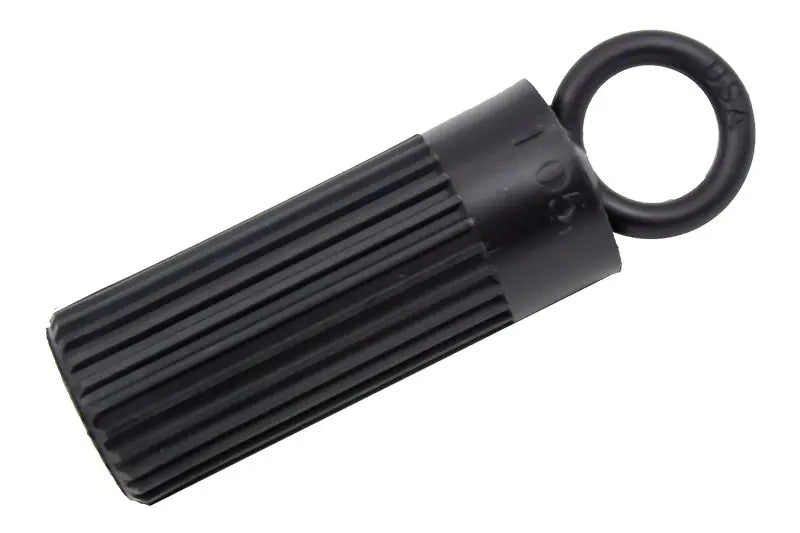

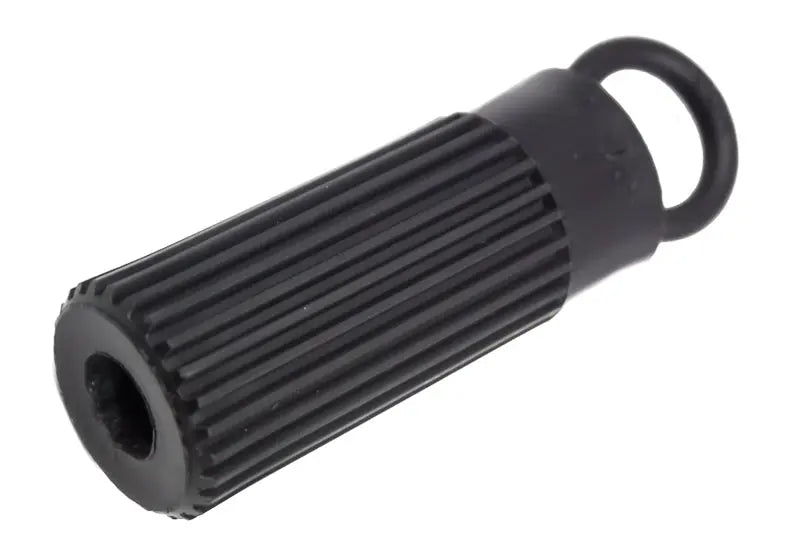

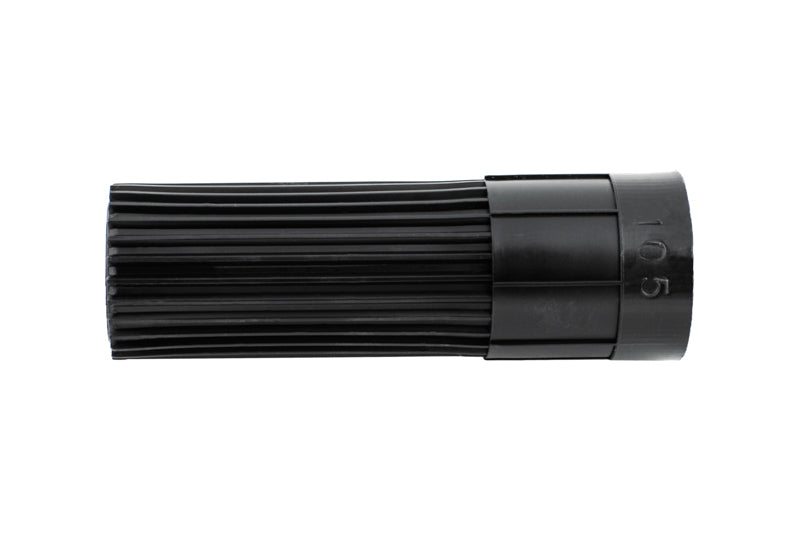

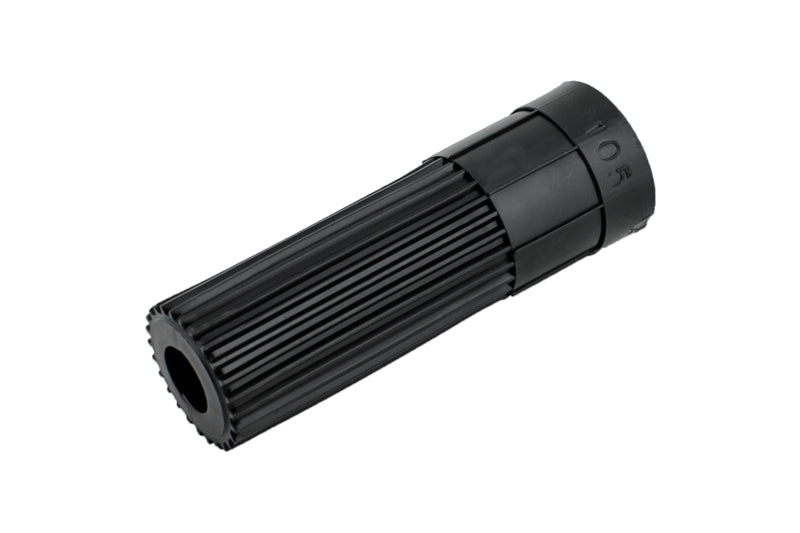

Make the alignment step of your BMW clutch installation easier with the ACT AT105 clutch alignment tool. It holds the disc in the correct position while the pressure plate is installed, helping the transmission input shaft line up with the clutch hub during reassembly. This black plastic tool has 26 splines and a specified 1.375-inch input shaft size, and it is intended for the applications listed below. The supplied fitment notes specifically require the pilot bearing to be located in the transmission input shaft. Confirm that arrangement before choosing AT105 so the tool matches the clutch and pilot support being installed.

Key Features & Specs:

• Brand: ACT
• Part Number: AT105
• Product Weight: 0.1 lb

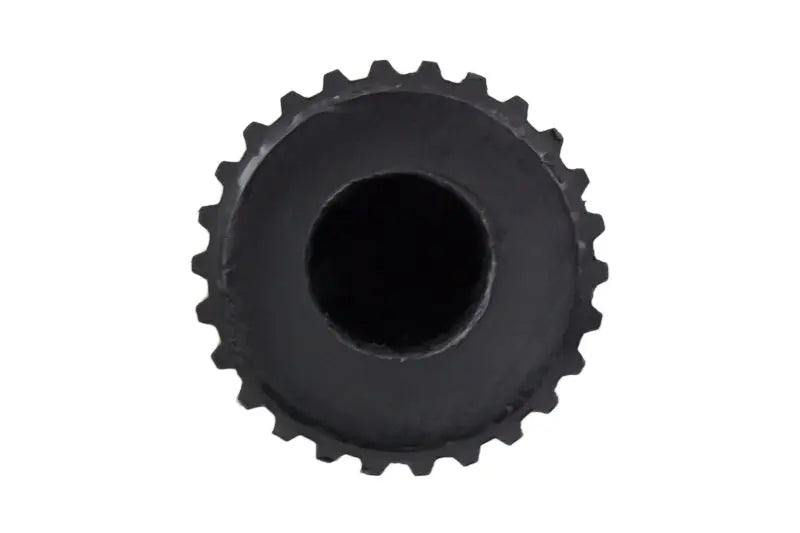

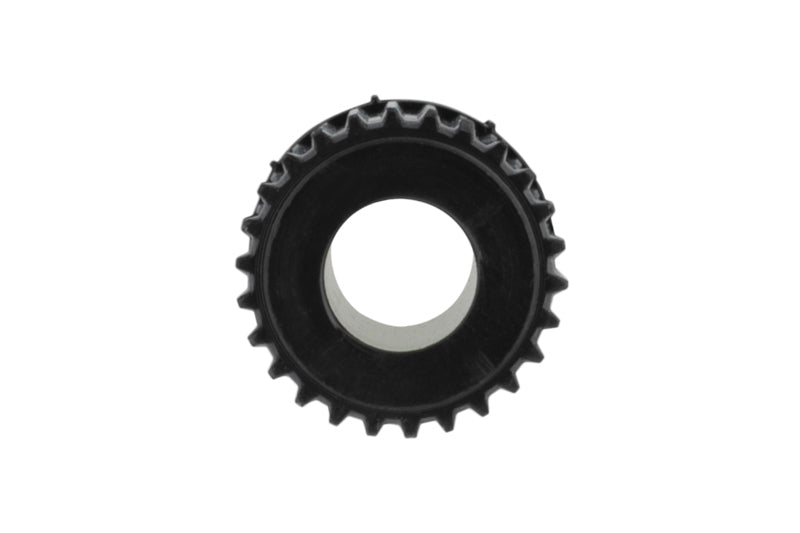

• Spline Count: 26
• Input Shaft Diameter: 1.375 in
• Material: Plastic
• Color: Black
• Fit Type: Specific

Fitment:

• 2008-2013 BMW 135i Base — 3.0L L6, 2979cc; For use when the pilot bearing is located in the transmission input shaft.
• 2007-2015 BMW 335i Base — 3.0L L6, 2979cc; For use when the pilot bearing is located in the transmission input shaft.
• 2009-2015 BMW 335i xDrive Base — 3.0L L6, 2979cc; For use when the pilot bearing is located in the transmission input shaft.
• 2011-2013 BMW 335is Base — 3.0L L6, 2979cc; For use when the pilot bearing is located in the transmission input shaft.
• 2007-2008 BMW 335xi Base — 3.0L L6, 2979cc; For use when the pilot bearing is located in the transmission input shaft.
• 2014-2016 BMW 435i Base — 3.0L L6, 2979cc; For use when the pilot bearing is located in the transmission input shaft.
• 2014-2016 BMW 435i xDrive Base — 3.0L L6, 2979cc; For use when the pilot bearing is located in the transmission input shaft.
• 2008-2014 BMW 535i Base — 3.0L L6, 2979cc; For use when the pilot bearing is located in the transmission input shaft.
• 2009-2010 BMW 535i xDrive Base — 3.0L L6, 2979cc; For use when the pilot bearing is located in the transmission input shaft.
• 2008 BMW 535xi Base — 3.0L L6, 2979cc; For use when the pilot bearing is located in the transmission input shaft.
• 2009-2016 BMW Z4 sDrive35i — 3.0L L6, 2979cc; For use when the pilot bearing is located in the transmission input shaft.

Notes:

• For the listed BMW applications, use AT105 only when the pilot bearing is located in the transmission input shaft.
