ACT HD 6-Pad Sprung Clutch Kit with Flywheel - SB11-HDG6

240mm Conversion Kit | 574 ft-lb | Ceramic Sprung Disc | Streetlite Flywheel

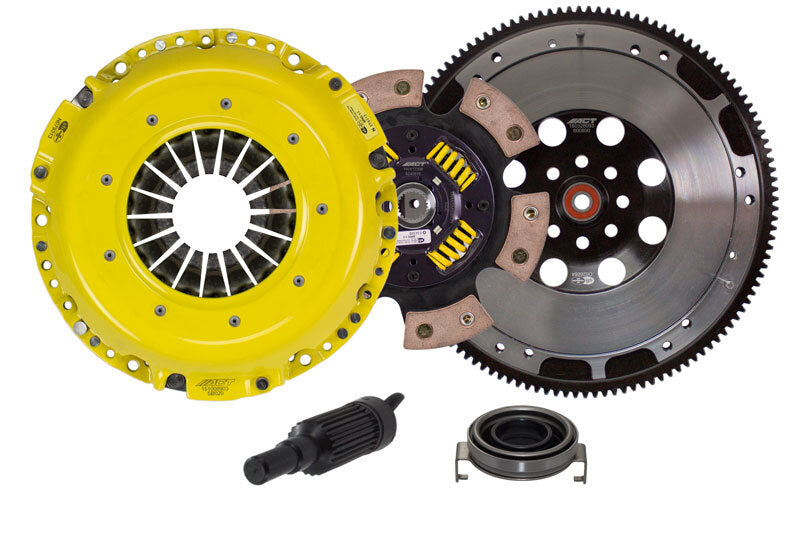

The ACT SB11-HDG6 Heavy Duty 6-Pad Race Sprung kit converts the listed Subaru applications to a matched 240mm clutch and Streetlite flywheel assembly. Its ceramic race disc and Heavy Duty pressure plate provide a 574 ft-lb engine torque rating, with a spring-centered hub to reduce torsional shock through the driveline. The six-pad layout supports demanding heat conditions, but engagement is more abrupt than an organic street disc. The required ACT flywheel, release bearing, pilot bearing, alignment tool, and pressure plate bolts are included. Follow the conversion requirements below, particularly on WRX models with revised factory 240mm components introduced during the 2018 model year.

Key Features & Specs:

• Brand: ACT
• Part Number: SB11-HDG6
• Clutch Configuration: Single disc
• Disc Series: 6-Pad Race Sprung
• Product Weight: 29.0 lb
• Torque Capacity at Engine/Crank: 574 ft-lb
• Torque Capacity Increase over OE: 86%
• Pressure Plate Type: Heavy Duty
• Clutch Disc Diameter: 240 mm
• Input Spline Count: 24
• Input Shaft Diameter: 1 in
• Disc Material: Ceramic
• Flywheel Included: Yes
• Release Bearing Included: Yes
• Alignment Tool Included: Yes
• Flywheel Type: Streetlite
• Grease Included: Yes
• Disc Hub: Sprung
• Clutch Slave Cylinder Included: No
• Clutch Master Cylinder Included: No
• Grade Type: Performance
• Pressure Plate Bolts Included: Yes
• Flywheel Bolts Included: No
• Pilot Bushing Included: No
• Pilot Bearing Included: Yes
• Feature: Six-pad ceramic race disc with a sprung hub
• Feature: Matched ACT Streetlite flywheel included
• Feature: Four-stage heat-treated Heavy Duty pressure plate diaphragm
• Feature: Four-stage heat-treated pressure plate diaphragm
• Feature: Precision cover stampings support rigidity and consistency
• Feature: Wraparound spring windows and reinforced retainers support the sprung disc
• Pressure Plate and Disc Assembly: Included

Fitment:

• 2006 Subaru Baja Turbo
• 2008 Subaru Forester Sports 2.5 XT
• 2006-2008 Subaru Forester XT Limited
• 2006-2014 Subaru Impreza WRX
• 2006-2007,2010-2014 Subaru Impreza WRX Limited
• 2009-2014 Subaru Impreza WRX Premium
• 2006-2007 Subaru Impreza WRX TR
• 2005-2006 Subaru Legacy GT
• 2005,2007-2009 Subaru Legacy GT Limited
• 2006-2009 Subaru Legacy GT spec.B
• 2005-2006 Subaru Outback XT
• 2005-2009 Subaru Outback XT Limited
• 2015-2024 Subaru WRX Base; ACT conversion assembly required; do not mix with revised factory 240mm components introduced at VIN J806877 during the 2018 model year.
• 2015-2026 Subaru WRX Limited; ACT conversion assembly required; do not mix with revised factory 240mm components introduced at VIN J806877 during the 2018 model year.
• 2015-2026 Subaru WRX Premium; ACT conversion assembly required; do not mix with revised factory 240mm components introduced at VIN J806877 during the 2018 model year.
• 2026 Subaru WRX Series.Yellow; ACT conversion assembly required; do not mix with revised factory 240mm components introduced at VIN J806877 during the 2018 model year.
• 2024 Subaru WRX TR; ACT conversion assembly required; do not mix with revised factory 240mm components introduced at VIN J806877 during the 2018 model year.
• 2025-2026 Subaru WRX TS; ACT conversion assembly required; do not mix with revised factory 240mm components introduced at VIN J806877 during the 2018 model year.

Notes:

• Conversion Kit - replaces original 230mm clutch. Must use ACT Flywheel (included in kit). Subaru has incorporated 240mm clutch components into production during mid-2018MY production starting with VIN J806877. ACT clutch kits and flywheels are not compatible with the revised OEM components. Pressure plate bolts included (M8-1.25 x 16mm).
• Ceramic race-disc engagement is more abrupt than an organic street disc. Follow the ACT installation and race-disc break-in instructions.
