ACT HD Street Clutch Kit BRZ/FR-S/86 with Streetlite - SB7-HDSS

224mm | 259 ft-lb | Streetlite | 2013-2020 BRZ | 2013-2016 FR-S | 2017-2020 86

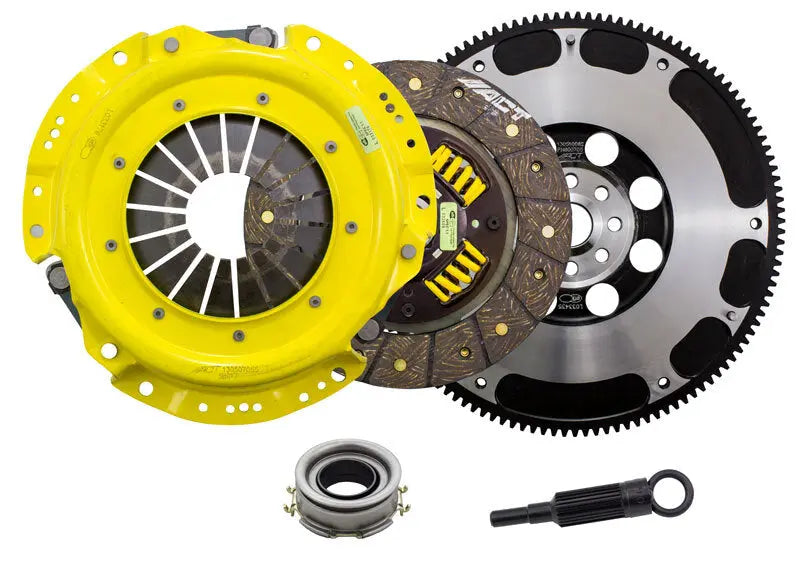

The ACT SB7-HDSS Heavy Duty Performance Street Sprung kit pairs a 224mm organic clutch with a Streetlite flywheel for the listed Subaru BRZ, Scion FR-S, and Toyota 86 applications. Its 259 ft-lb engine torque rating supports a street-focused holding upgrade, while the sprung hub cushions drivetrain vibration and the organic lining provides progressive engagement. The Streetlite flywheel reduces inertia while retaining material for strength and heat management, making it useful for a road-driven build that also sees performance use. This conversion package includes its required flywheel, release bearing, alignment tool, grease, and specified flywheel and pressure plate bolts. Use the matched ACT flywheel supplied with the kit.

Key Features & Specs:

• Brand: ACT
• Part Number: SB7-HDSS
• Clutch Configuration: Single disc
• Disc Series: Performance Street Sprung
• Product Weight: 26.2 lb
• Torque Capacity at Engine/Crank: 259 ft-lb
• Torque Capacity Increase over OE: 59%
• Pressure Plate Type: Heavy Duty
• Clutch Disc Diameter: 224 mm
• Input Spline Count: 24
• Input Shaft Diameter: 1 in
• Disc Material: Organic
• Flywheel Included: Yes
• Release Bearing Included: Yes
• Alignment Tool Included: Yes
• Flywheel Type: Streetlite
• Grease Included: Yes
• Flywheel Bolts Included: Yes
• Disc Hub: Sprung
• Clutch Slave Cylinder Included: No
• Clutch Master Cylinder Included: No
• Grade Type: Performance
• Pressure Plate Bolts Included: Yes
• Pilot Bushing Included: No
• Pilot Bearing Included: No
• Feature: Four-stage heat-treated pressure plate diaphragm
• Feature: Precision cover stampings support rigidity and consistency
• Feature: Copper-containing organic friction material supports heat transfer
• Feature: Steel-backed friction lining supports strength and durability
• Feature: Reduced engagement cushioning supports quicker shift action
• Pressure Plate and Disc Assembly: Included

Fitment:

• 2013-2016 Scion FR-S Base
• 2013-2020 Subaru BRZ Limited
• 2013-2019 Subaru BRZ Premium
• 2015 Subaru BRZ Series.Blue
• 2019 Subaru BRZ Series.Gray
• 2016 Subaru BRZ Series.HyperBlue
• 2017 Subaru BRZ Series.Yellow
• 2018,2020 Subaru BRZ TS
• 2017-2020 Toyota 86 Base
• 2018-2020 Toyota 86 GT
• 2020 Toyota 86 Hakone Edition
• 2017 Toyota 86 Special Edition
• 2019 Toyota 86 TRD Special Edition

Notes:

• Conversion kit. Includes ACT Streetlite flywheel. Must use ACT flywheel (included in kit). Flywheel bolts included (M10-1.0 x 25mm). Pressure plate bolts included (M8-1.25 x 16mm).
• ACT recommends 300-500 miles of mild engagement for organic street discs before spirited driving or racing. Follow the application-specific installation instructions.
