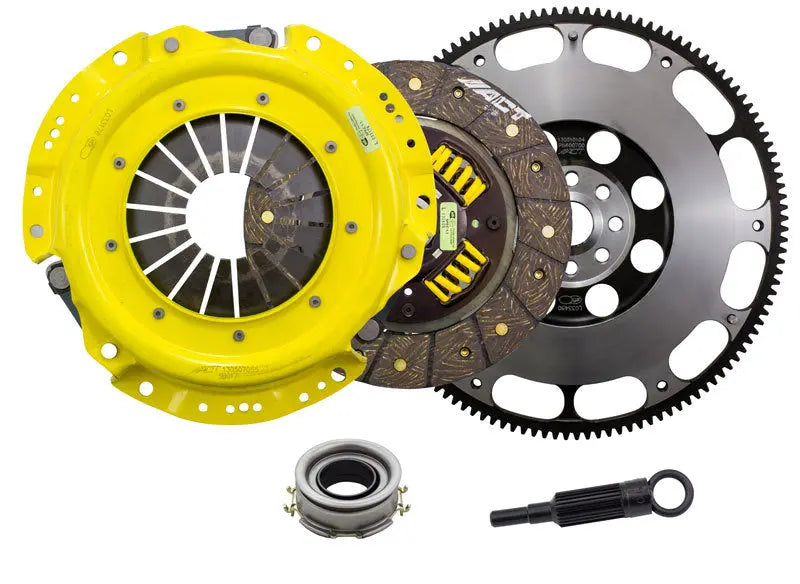

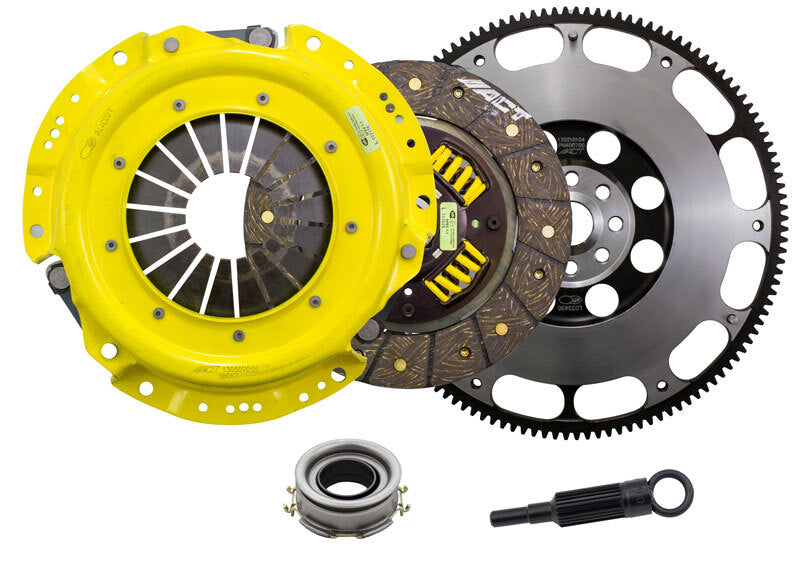

ACT HD Street Clutch Kit BRZ/FR-S/86 with Prolite - SB8-HDSS

224mm | 259 ft-lb | Prolite | 2013-2020 BRZ | 2013-2016 FR-S | 2017-2020 86

The ACT SB8-HDSS Heavy Duty Performance Street Sprung kit gives the listed BRZ, FR-S, and Toyota 86 applications a 259 ft-lb engine torque rating with an included Prolite flywheel. The 224mm organic disc offers progressive engagement, and its sprung hub helps damp drivetrain vibration during starts and shifts. The Prolite flywheel emphasizes reduced rotating inertia for quicker engine response, making that flywheel choice a distinguishing detail for a performance-focused build. Compared with Streetlite, its lower-inertia design asks for more care with low-speed driving feel. The matched flywheel, release bearing, alignment tool, grease, and specified mounting bolts are included in this conversion package.

Key Features & Specs:

• Brand: ACT
• Part Number: SB8-HDSS
• Clutch Configuration: Single disc
• Disc Series: Performance Street Sprung
• Product Weight: 24.9 lb
• Torque Capacity at Engine/Crank: 259 ft-lb
• Torque Capacity Increase over OE: 59%
• Pressure Plate Type: Heavy Duty
• Clutch Disc Diameter: 224 mm
• Input Spline Count: 24
• Input Shaft Diameter: 1 in
• Disc Material: Organic
• Flywheel Included: Yes
• Release Bearing Included: Yes
• Alignment Tool Included: Yes
• Flywheel Type: Prolite
• Grease Included: Yes
• Flywheel Bolts Included: Yes
• Disc Hub: Sprung
• Clutch Slave Cylinder Included: No
• Clutch Master Cylinder Included: No
• Grade Type: Performance
• Pressure Plate Bolts Included: Yes
• Feature: Four-stage heat-treated pressure plate diaphragm
• Feature: Precision cover stampings support rigidity and consistency
• Feature: Copper-containing organic friction material supports heat transfer
• Feature: Steel-backed friction lining supports strength and durability
• Feature: Reduced engagement cushioning supports quicker shift action
• Pressure Plate and Disc Assembly: Included

Fitment:

• 2013-2016 Scion FR-S Base
• 2013-2020 Subaru BRZ Limited
• 2013-2019 Subaru BRZ Premium
• 2015 Subaru BRZ Series.Blue
• 2019 Subaru BRZ Series.Gray
• 2016 Subaru BRZ Series.HyperBlue
• 2017 Subaru BRZ Series.Yellow
• 2018,2020 Subaru BRZ TS
• 2017-2020 Toyota 86 Base
• 2018-2020 Toyota 86 GT
• 2020 Toyota 86 Hakone Edition
• 2017 Toyota 86 Special Edition
• 2019 Toyota 86 TRD Special Edition

Notes:

• Conversion kit. Includes ACT Prolite flywheel. Must use ACT flywheel (included in kit). Flywheel bolts included (M10-1.0 x 25mm). Pressure plate bolts included (M8-1.25 x 16mm).
• ACT recommends 300-500 miles of mild engagement for organic street discs before spirited driving or racing. Follow the application-specific installation instructions.
