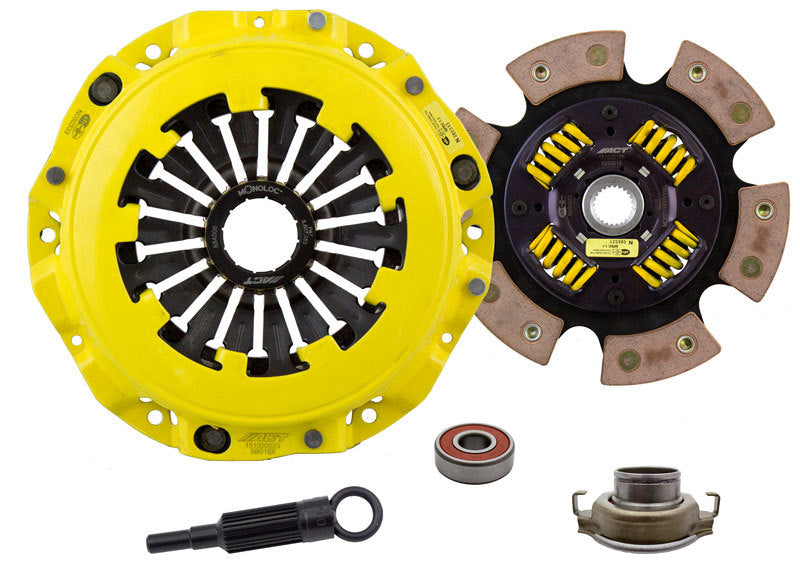

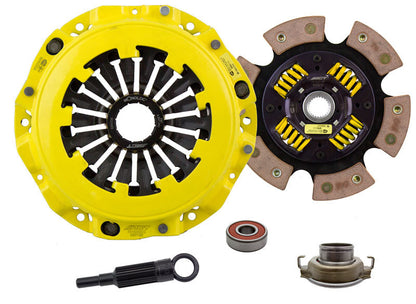

ACT Clutch XT-M/Race Sprung 6-Pad Transmission Clutch Kit Fits Select Subaru

ACT Clutch SB9-XTG6 Features:

SB9-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled Performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal Performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

• Includes Clutch Pilot Bearing (PB1004), Clutch Friction Disc (6228218), Clutch Pressure Plate (SB018X), Clutch Alignment Tool (AT90), Clutch Release Bearing (RB601)
• Moderate To Heavy Pedal Effort
• Aggressive Engagement
• Oe To Mild Gear Rattle
• Confidence During Hard Shifts; Moderate Friction Life
• Extended by ACT's Exclusive Diaphragm Design
• Dramatic Improvement In Release Mechanism Life; Carefully Engineered
• Precisely Assembled
• Accurately Balanced
• Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance
• Major Improvement In Release Mechanism; Recommended For High Horsepower Street Or Race Use; 100-percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
• Includes ACT's Patented Monoloc
• Weight: 16.8 lbs.
• Torque Capacity: 654 ft.-lbs.
• Torque Capacity Over OE: 92-percent
• Pilot Bushing: Yes
• Pressure Plate Type: Xtreme
• Release Bearing: Yes
• Clutch Disc Diameter: 9 in.
• Clutch Disc Diameter: 228 mm
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter: 1 in.
• Alignment Tool Included: Yes

ACT Clutch SB9-XTG6 Notes:

• Includes ACT Monoloc.

Vehicle Fitment
