ACT GM13-HDSS HD/Perf Street Sprung Clutch Kit

ACT Clutch GM13-HDSS Features:

GM13-HDSS kit features ACT's most popular Heavy-Duty pressure plate and most popular street disc. ACT Heavy-Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled Performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.

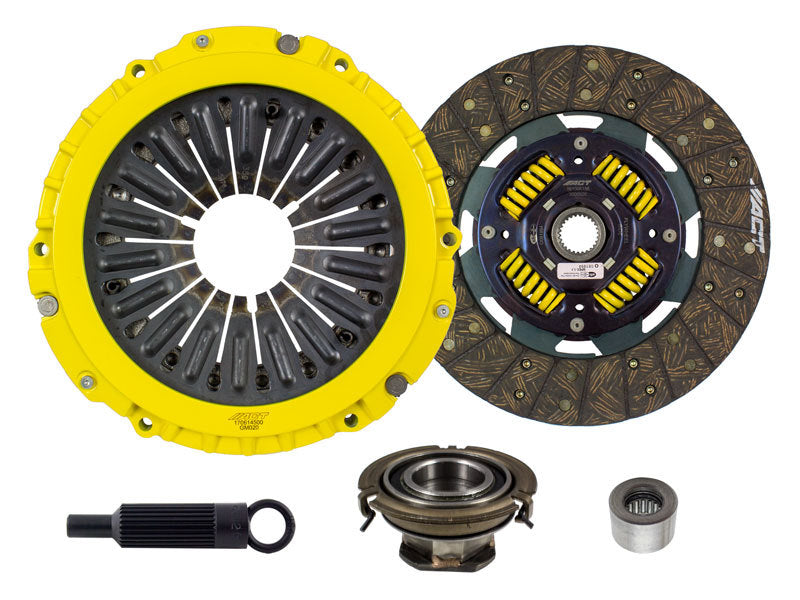

• Includes Clutch Release Bearing (RB845), Clutch Pilot Bearing (PB0656A), Clutch Alignment Tool (ATGM026), Clutch Friction Disc (3000926), Clutch Pressure Plate (GM020)
• Light To Moderate Pedal Effort
• Smooth Positive Engagement
• Oe To Mild Gear Rattle; Longer Friction Life
• Extended by ACT's Exclusive Diaphragm Design; Carefully Engineered
• Precisely Assembled
• Accurately Balanced
• With Premium Organic Friction Materials For Heat Tolerance And Reduced Fade; Recommended For Street And Race Use; 100-percent Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
• Weight: 19.9 lbs.
• Torque Capacity: 640 ft.-lbs.
• Torque Capacity Over OE: 38-percent
• Pilot Bushing: Yes
• Pressure Plate Type: Heavy-Duty
• Release Bearing: Yes
• Clutch Disc Diameter: 11 in.
• Clutch Disc Diameter: 280 mm
• Disc Material: Organic
• Input Spline Quantity: 26
• Input Shaft Diameter: 1.125 in.
• Alignment Tool Included: Yes

ACT Clutch GM13-HDSS Notes:

• Must be used with single-mass flywheel only. Not compatible with dual-mass flywheel (flywheel not included).
