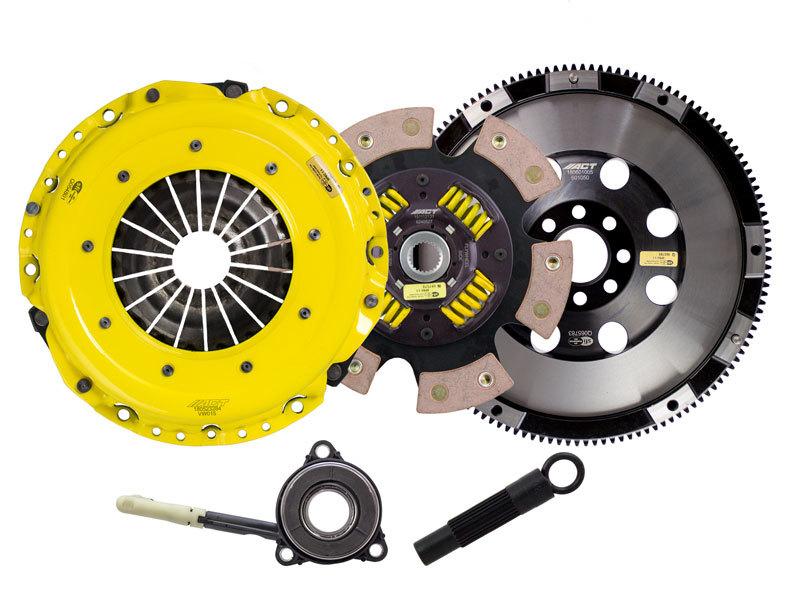

ACT Clutch VW9-XTG6 Features:
VW9-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled Performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.
- Includes Clutch Release Bearing (RB011), Transmission Clutch Friction Plate (6240527), Clutch Alignment Tool (AT126), Clutch Flywheel (601050), Transmission Clutch Pressure Plate (VW015X)
- Moderate To Heavy Pedal Effort
- Aggressive Engagement
- Oe To Mild Gear Rattle; Moderate Friction Life
- Extended by ACT's Exclusive Diaphragm Design; Carefully Engineered
- Precisely Assembled
- Accurately Balanced
- Uses Select Ceramic Friction Materials For High Heat Tolerance And Maximum Performance; Recommended For High Horsepower Street Or Race Use; 100% Clamp Load Tested And Dynamically Computer Balanced For Smooth High Rpm Reliability
- Weight: 31.8 lbs.
- Torque Capacity: 723 ft.-lbs.
- Torque Capacity Over OE: 129%
- Flywheel Included: Yes
- Pressure Plate Type: Xtreme
- Release Bearing: Yes
- Clutch Disc Diameter: 9.4 in.
- Clutch Disc Diameter: 240 mm
- Disc Material: Ceramic
- Input Spline Quantity: 23
- Input Shaft Diameter: 0.9375 in.
- Alignment Tool Included: Yes
Vehicle Fitment
|
Fitment Info |
|
|
Application |
Engine |
|
2015 Volkswagen GTI Autobahn |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2015 Volkswagen GTI Autobahn |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2015 Volkswagen GTI Base |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2015 Volkswagen GTI S |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2015 Volkswagen GTI S |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2015 Volkswagen GTI SE |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2015 Volkswagen GTI SE |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2015 Volkswagen Golf R Base |
2.0 L4 GAS FI 1984cc | DOHC |
|
2016 Volkswagen GTI Autobahn |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2016 Volkswagen GTI Autobahn |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2016 Volkswagen GTI Base |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2016 Volkswagen GTI Performance |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2016 Volkswagen GTI S |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2016 Volkswagen GTI S |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2016 Volkswagen GTI SE |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2016 Volkswagen GTI SE |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2016 Volkswagen Golf R Base |
2.0 L4 GAS FI 1984cc | DOHC |
|
2017 Volkswagen GTI Autobahn |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2017 Volkswagen GTI Autobahn |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2017 Volkswagen GTI Base |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2017 Volkswagen GTI Performance |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2017 Volkswagen GTI S |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2017 Volkswagen GTI SE |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2017 Volkswagen GTI Sport |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2017 Volkswagen Golf R Base |
2.0 L4 GAS FI 1984cc | DOHC |
|
2018 Volkswagen GTI Autobahn |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2018 Volkswagen GTI Base |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2018 Volkswagen GTI S |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2018 Volkswagen GTI SE |
2.0 L4 GAS FI 1984cc | DOHC | Turbocharged |
|
2018 Volkswagen Golf R Base |
2.0 L4 GAS FI 1984cc | DOHC |
|
2019 Volkswagen Golf R Base |
2.0 L4 GAS FI 1984cc | DOHC |
