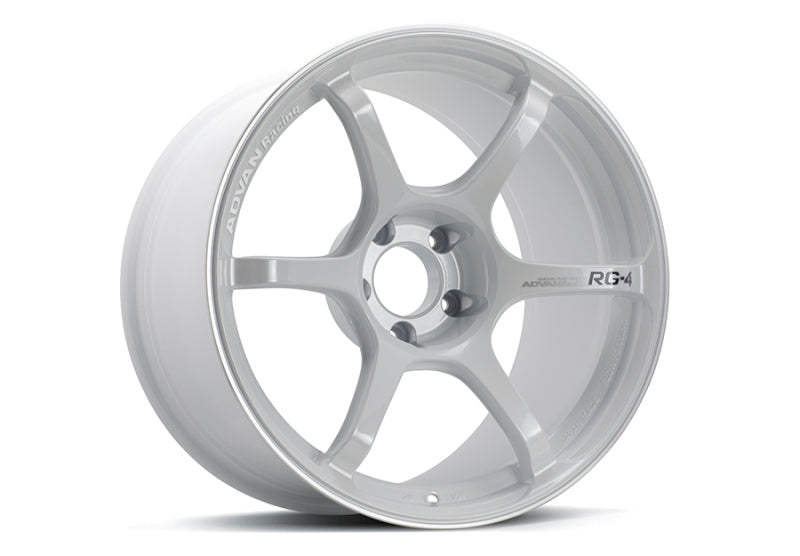

ADVAN Racing RG-4 18x8.5 +45 5x112 Wheel - White Metallic & Ring - YA48H45MWMR

The ADVAN Racing RG-4 YA48H45MWMR is a 18x8.5 performance wheel configured with a +45 offset and 5x112 bolt pattern. This version uses a 66.5mm hub bore, 73mm center-cap size, M14 lug-hole specification, and the GTR design configuration, finished in Racing White Metallic & Ring. The RG-4 series is offered in multiple diameters, widths, offsets, lug-hole specifications, hub bores, and design configurations, so the complete specification set must be matched to the intended vehicle. Confirm brake-caliper clearance, suspension clearance, fender clearance, tire sizing, hub compatibility, and wheel-hardware requirements before ordering rather than relying on wheel diameter or bolt pattern alone.

Key Features

• 18-inch diameter and 8.5-inch width
• +45 offset
• 5x112 bolt pattern with 5 lug holes
• M14 lug-hole specification
• GTR design configuration
• 66.5mm hub bore
• 73mm center-cap size
• Racing White Metallic & Ring finish

Specifications

• Brand: ADVAN RACING
• Product Type: Wheel
• Wheel Series: RG-4
• Wheel Size: 18X8.5
• Wheel Diameter: 18 in
• Wheel Width: 8.5 in
• Lug Holes: 5
• Lug Hole Size: M14
• Bolt Circle: 112 mm
• Bolt Pattern: 5-112
• Offset: +45
• Design: GTR
• Hub Bore: 66.5 mm
• Center Cap Size: 73 mm
• Manufacturer Color Code: WMR
• Finish: RACING WHITE METALLIC & RING
• Store / Variant SKU: avnYA48H45MWMR
• Manufacturer Part Number: YA48H45MWMR
• Manufacturer Article Number: V5038

Wheel Fitment Note: Confirm wheel diameter, width, offset, bolt pattern, lug-hole size, hub bore, design configuration, center-cap requirements, brake-caliper clearance, lug-seat and hardware requirements, tire size, suspension clearance, and fender clearance before ordering. A matching bolt pattern alone does not guarantee vehicle fitment.
