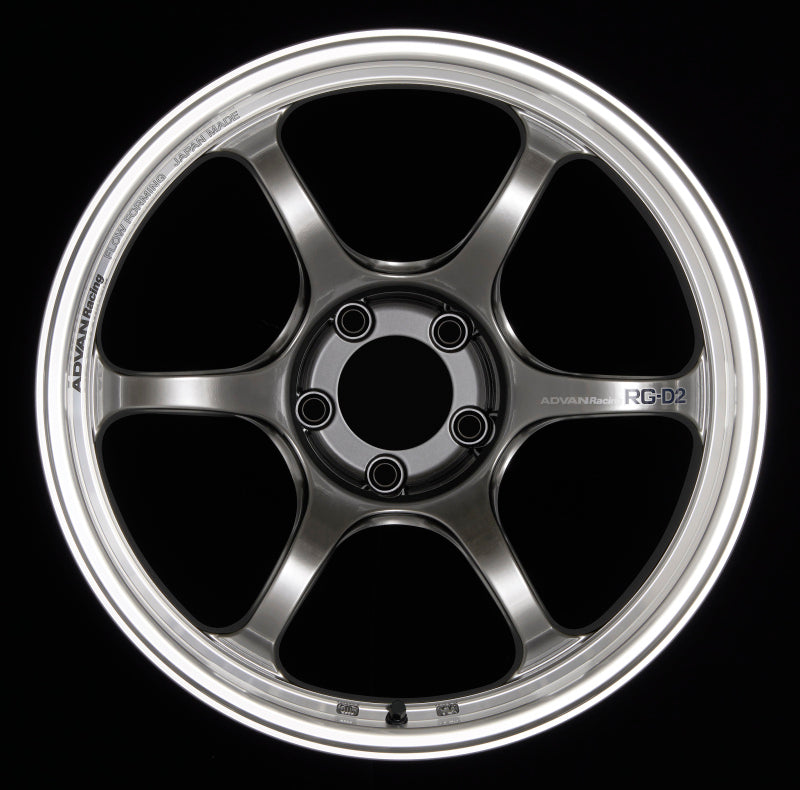

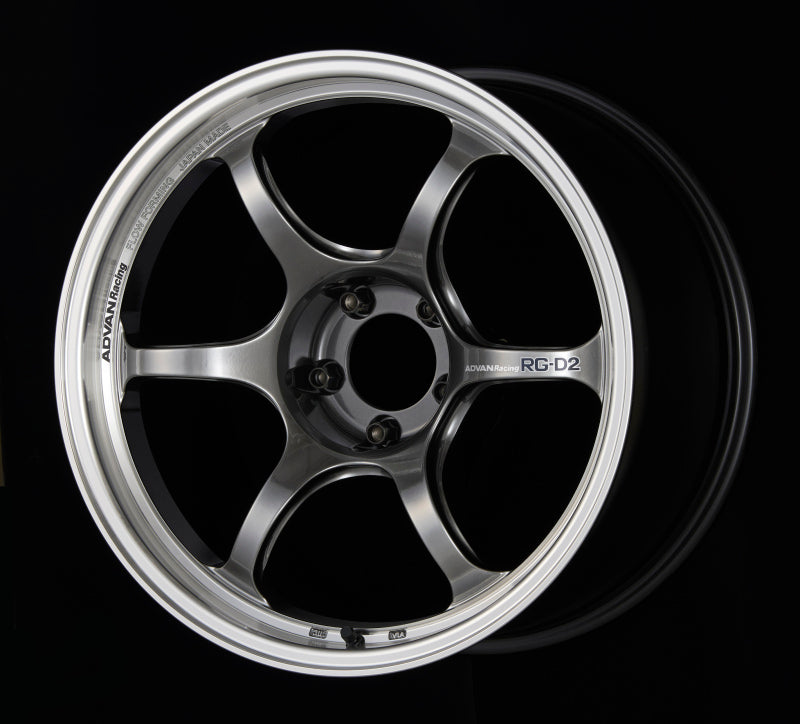

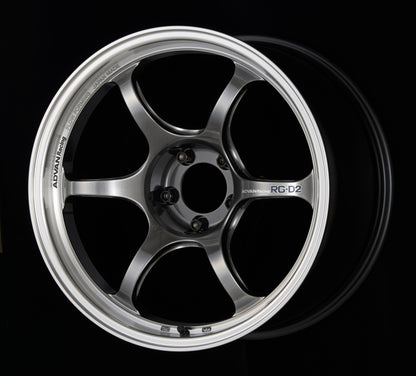

ADVAN Racing RG-D2 17x7.5 +38 5x100 Wheel - Machining & Racing Hyper Black - YAT7F38DHB

The ADVAN Racing RG-D2 YAT7F38DHB measures 17x7.5 and is configured with a +38 offset and 5x100 bolt pattern. This version uses a 57.1mm hub bore, 63mm center-cap size, M14 lug-hole specification, and the Standard design configuration, finished in Machining & Racing Hyper Black. The RG-D2 series is offered in multiple diameters, widths, offsets, bolt patterns, hub bores, and design configurations, so the complete specification set must be matched to the intended vehicle. Confirm brake-caliper clearance, suspension clearance, fender clearance, tire sizing, hub compatibility, and wheel-hardware requirements before ordering rather than relying on wheel diameter or bolt pattern alone.

Key Features

• 17-inch diameter and 7.5-inch width
• +38 offset
• 5x100 bolt pattern with 5 lug holes
• M14 lug-hole specification
• Standard design configuration
• 57.1mm hub bore
• 63mm center-cap size
• Machining & Racing Hyper Black finish

Specifications

• Brand: ADVAN RACING
• Product Type: Wheel
• Wheel Series: RG-D2
• Wheel Size: 17X7.5
• Wheel Diameter: 17 in
• Wheel Width: 7.5 in
• Lug Holes: 5
• Lug Hole Size: M14
• Bolt Circle: 100 mm
• Bolt Pattern: 5-100
• Offset: +38
• Hub Bore: 57.1 mm
• Center Cap Size: 63 mm
• Design: Standard
• Manufacturer Color Code: MHB
• Finish: MACHINING & RACING HYPER BLACK
• Store / Variant SKU: avnYAT7F38DHB
• Manufacturer Part Number: YAT7F38DHB
• Manufacturer Article Number: V2874

Wheel Fitment Note: Confirm wheel diameter, width, offset, bolt pattern, lug-hole size, hub bore, design configuration, center-cap requirements, brake-caliper clearance, lug-seat and hardware requirements, tire size, suspension clearance, and fender clearance before ordering. A matching bolt pattern alone does not guarantee vehicle fitment.
