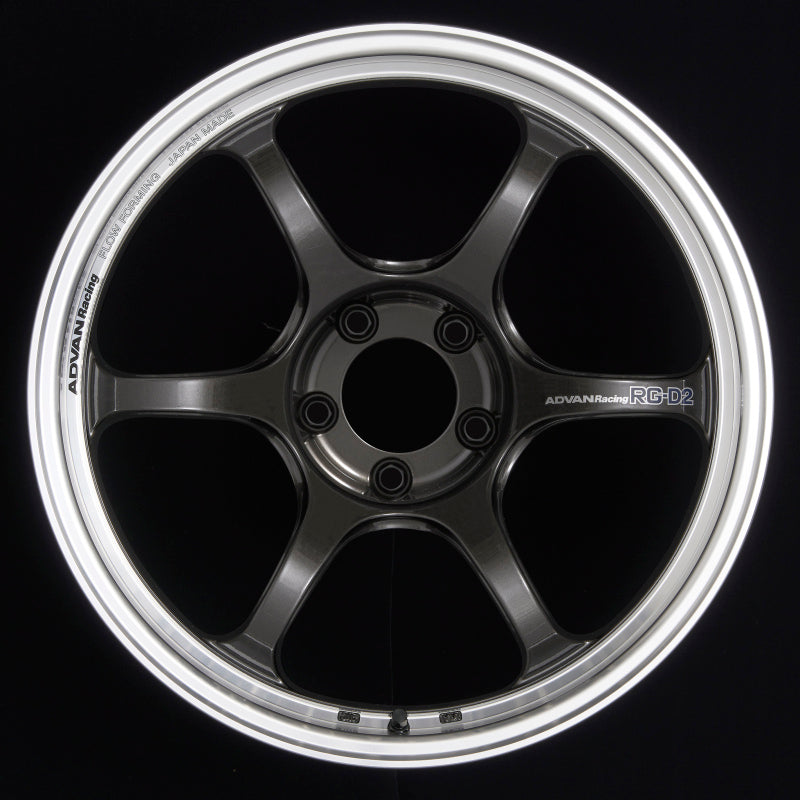

ADVAN Racing RG-D2 18x8.5 +45 5x100 Wheel - Machining & Black Gunmetallic - YAT8H45DMBG

The ADVAN Racing RG-D2 YAT8H45DMBG measures 18x8.5 and is configured with a +45 offset and 5x100 bolt pattern. This version uses a 63mm hub bore, 63mm center-cap size, M12 lug-hole specification, and the Standard design configuration, finished in Machining & Black Gunmetallic. The RG-D2 series is offered in multiple diameters, widths, offsets, bolt patterns, hub bores, and design configurations, so the complete specification set must be matched to the intended vehicle. Confirm brake-caliper clearance, suspension clearance, fender clearance, tire sizing, hub compatibility, and wheel-hardware requirements before ordering rather than relying on wheel diameter or bolt pattern alone.

Key Features

• 18-inch diameter and 8.5-inch width
• +45 offset
• 5x100 bolt pattern with 5 lug holes
• M12 lug-hole specification
• Standard design configuration
• 63mm hub bore
• 63mm center-cap size
• Machining & Black Gunmetallic finish

Specifications

• Brand: ADVAN RACING
• Product Type: Wheel
• Wheel Series: RG-D2
• Wheel Size: 18X8.5
• Wheel Diameter: 18 in
• Wheel Width: 8.5 in
• Lug Holes: 5
• Lug Hole Size: M12
• Bolt Circle: 100 mm
• Bolt Pattern: 5-100
• Offset: +45
• Hub Bore: 63 mm
• Center Cap Size: 63 mm
• Design: Standard
• Manufacturer Color Code: MBG
• Finish: MACHINING & BLACK GUNMETALLIC
• Store / Variant SKU: avnYAT8H45DMBG
• Manufacturer Part Number: YAT8H45DMBG
• Manufacturer Article Number: V2424

Wheel Fitment Note: Confirm wheel diameter, width, offset, bolt pattern, lug-hole size, hub bore, design configuration, center-cap requirements, brake-caliper clearance, lug-seat and hardware requirements, tire size, suspension clearance, and fender clearance before ordering. A matching bolt pattern alone does not guarantee vehicle fitment.
