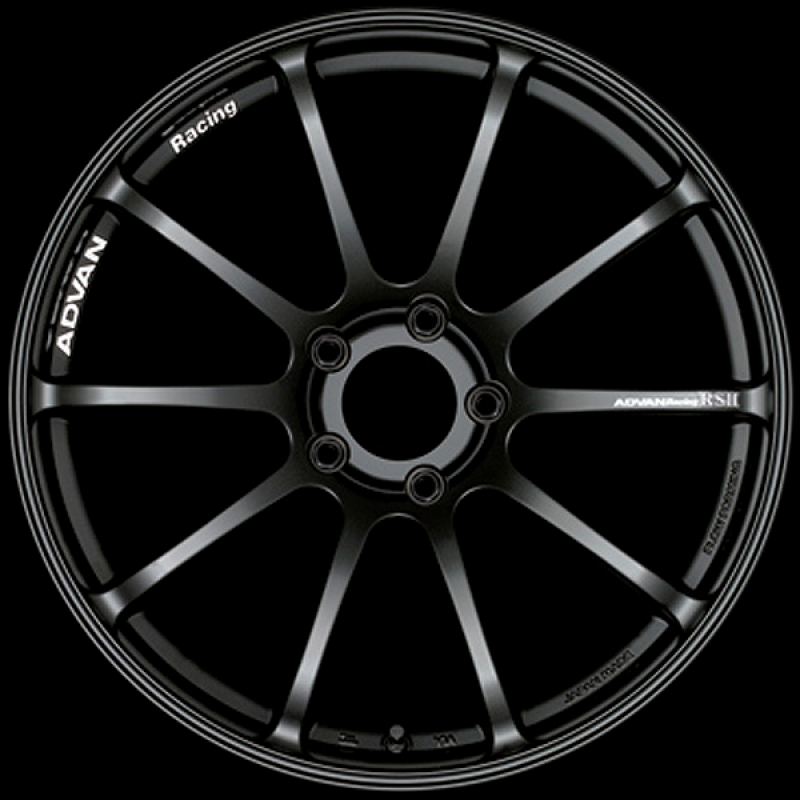

ADVAN Racing RSII 17x8.5 +35 5x120 Wheel - Semi Gloss Black - YAP7H35WSB

The ADVAN Racing RSII YAP7H35WSB is a 17x8.5 performance wheel configured with a +35 offset and 5x120 bolt pattern. This version uses a 72.5mm hub bore and M14 lug-hole specification, along with a 73mm center-cap size and the GTR face configuration, finished in Semi Gloss Black. The RSII series is offered in multiple diameters, widths, offsets, bolt patterns, hub bores, and hardware configurations, so the complete specification set must be matched to the intended vehicle. Confirm brake-caliper clearance, suspension clearance, fender clearance, tire sizing, hub compatibility, and wheel-hardware requirements before ordering rather than relying on wheel diameter or bolt pattern alone.

Key Features

• 17-inch diameter and 8.5-inch width
• +35 offset
• 5x120 bolt pattern with 5 lug holes
• M14 lug-hole specification
• 72.5mm hub bore
• 73mm center-cap size
• GTR face configuration
• Semi Gloss Black finish

Specifications

• Brand: ADVAN RACING
• Product Type: Wheel
• Wheel Series: RSII
• Wheel Size: 17X8.5
• Wheel Diameter: 17 in
• Wheel Width: 8.5 in
• Lug Holes: 5
• Lug Hole Size: M14
• Bolt Circle: 120 mm
• Bolt Pattern: 5-120
• Offset: +35
• Hub Bore: 72.5 mm
• Center Cap Size: 73 mm
• Face: GTR
• Manufacturer Color Code: SGB
• Finish: SEMI GLOSS BLACK
• Store / Variant SKU: avnYAP7H35WSB
• Manufacturer Part Number: YAP7H35WSB
• Manufacturer Article Number: V0415

Wheel Fitment Note: Confirm wheel diameter, width, offset, bolt pattern, lug-hole size, hub bore, face configuration when listed, center-cap requirements, brake-caliper clearance, lug-seat and hardware requirements, tire size, suspension clearance, and fender clearance before ordering. A matching bolt pattern alone does not guarantee vehicle fitment.
