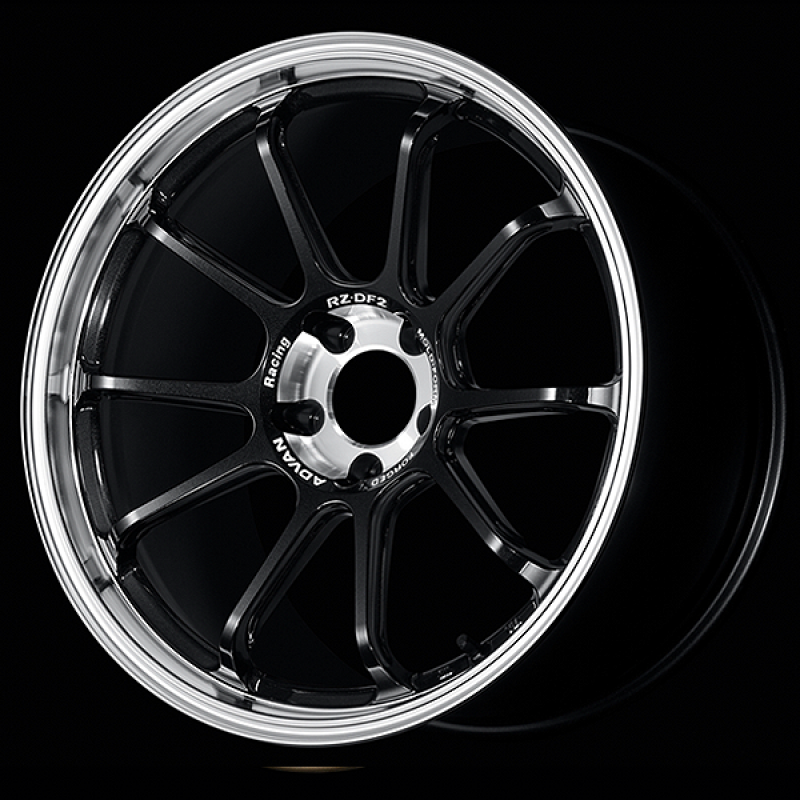

ADVAN Racing RZ-DF2 19x8.5 +45 5x112 Wheel - Diamond Cut Racing Titanium Black - YAF9H45MDRTB

The ADVAN Racing RZ-DF2 YAF9H45MDRTB is a 19x8.5 performance wheel configured with a +45 offset and 5x112 bolt pattern. This version uses a 66.5mm hub bore and 73mm center-cap size, finished in Diamond Cut & Racing Titanium Black. The RZ-DF2 series is offered in multiple widths, offsets, bolt patterns, hub bores, and face profiles, so the complete specification set must be matched to the intended vehicle. Confirm brake-caliper clearance, suspension clearance, fender clearance, tire sizing, hub compatibility, and wheel-hardware requirements before ordering rather than relying on wheel diameter or bolt pattern alone.

Key Features

• 19-inch diameter and 8.5-inch width
• +45 offset
• 5x112 bolt pattern with 5 lug holes
• 66.5mm hub bore
• 73mm center-cap size
• Diamond Cut & Racing Titanium Black finish

Specifications

• Brand: ADVAN RACING
• Product Type: Wheel
• Wheel Series: RZ-DF2
• Wheel Size: 19X8.5
• Wheel Diameter: 19 in
• Wheel Width: 8.5 in
• Lug Holes: 5
• Bolt Circle: 112 mm
• Bolt Pattern: 5-112
• Offset: +45
• Hub Bore: 66.5 mm
• Center Cap Size: 73 mm
• Manufacturer Color Code: DRTB
• Finish: DIAMOND CUT & RACING TITANIUM BLACK
• Store / Variant SKU: avnYAF9H45MDRTB
• Manufacturer Part Number: YAF9H45MDRTB
• Manufacturer Article Number: V5875

Wheel Fitment Note: Confirm wheel diameter, width, offset, bolt pattern, lug-hole specification when listed, hub bore, face profile when listed, center-cap requirements, brake-caliper clearance, lug-seat and hardware requirements, tire size, suspension clearance, and fender clearance before ordering. A matching bolt pattern alone does not guarantee vehicle fitment.
