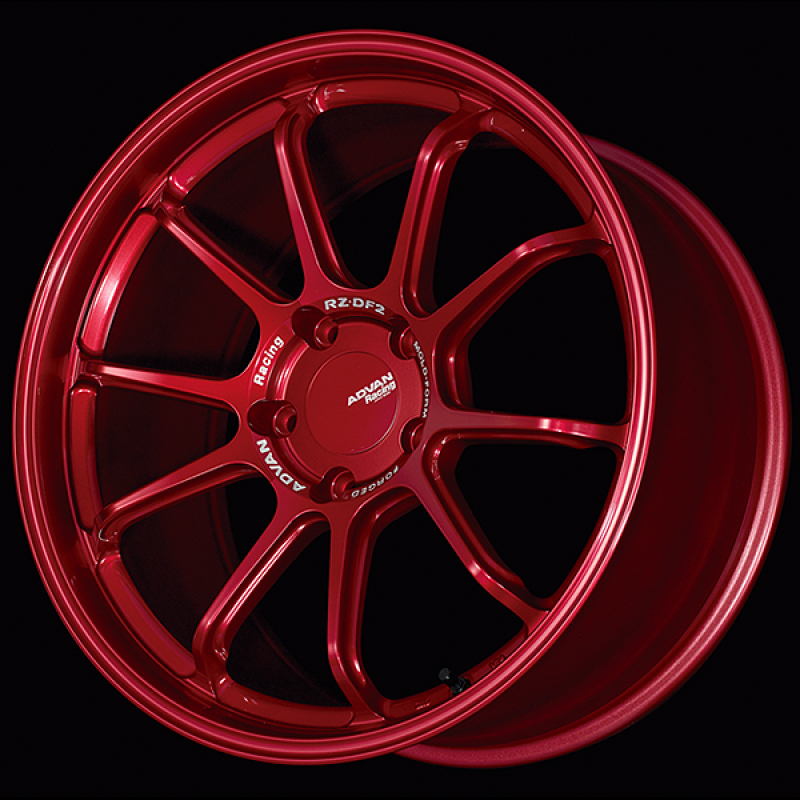

ADVAN Racing RZ-DF2 20x10.5 +45 5x130 Wheel - Racing Candy Red - YAF0L45PCR

The ADVAN Racing RZ-DF2 YAF0L45PCR is a 20x10.5 performance wheel configured with a +45 offset and 5x130 bolt pattern. This version uses a 71.6mm hub bore, 78mm center-cap size, M14 lug-hole specification, and the C-3 face profile, finished in Racing Candy Red. The RZ-DF2 series is offered in multiple widths, offsets, bolt patterns, hub bores, and face profiles, so the complete specification set must be matched to the intended vehicle. Confirm brake-caliper clearance, suspension clearance, fender clearance, tire sizing, hub compatibility, and wheel-hardware requirements before ordering rather than relying on wheel diameter or bolt pattern alone.

Key Features

• 20-inch diameter and 10.5-inch width
• +45 offset
• 5x130 bolt pattern with 5 lug holes
• M14 lug-hole specification
• C-3 face profile
• 71.6mm hub bore
• 78mm center-cap size
• Racing Candy Red finish

Specifications

• Brand: ADVAN RACING
• Product Type: Wheel
• Wheel Series: RZ-DF2
• Wheel Size: 20X10.5
• Wheel Diameter: 20 in
• Wheel Width: 10.5 in
• Lug Holes: 5
• Lug Hole Size: M14
• Bolt Circle: 130 mm
• Bolt Pattern: 5-130
• Offset: +45
• Face: C-3
• Hub Bore: 71.6 mm
• Center Cap Size: 78 mm
• Manufacturer Color Code: RCR
• Finish: RACING CANDY RED
• Store / Variant SKU: avnYAF0L45PCR
• Manufacturer Part Number: YAF0L45PCR
• Manufacturer Article Number: V6411

Wheel Fitment Note: Confirm wheel diameter, width, offset, bolt pattern, lug-hole size, hub bore, face profile, center-cap requirements, brake-caliper clearance, lug-seat and hardware requirements, tire size, suspension clearance, and fender clearance before ordering. A matching 5x130 bolt pattern alone does not guarantee vehicle fitment.
