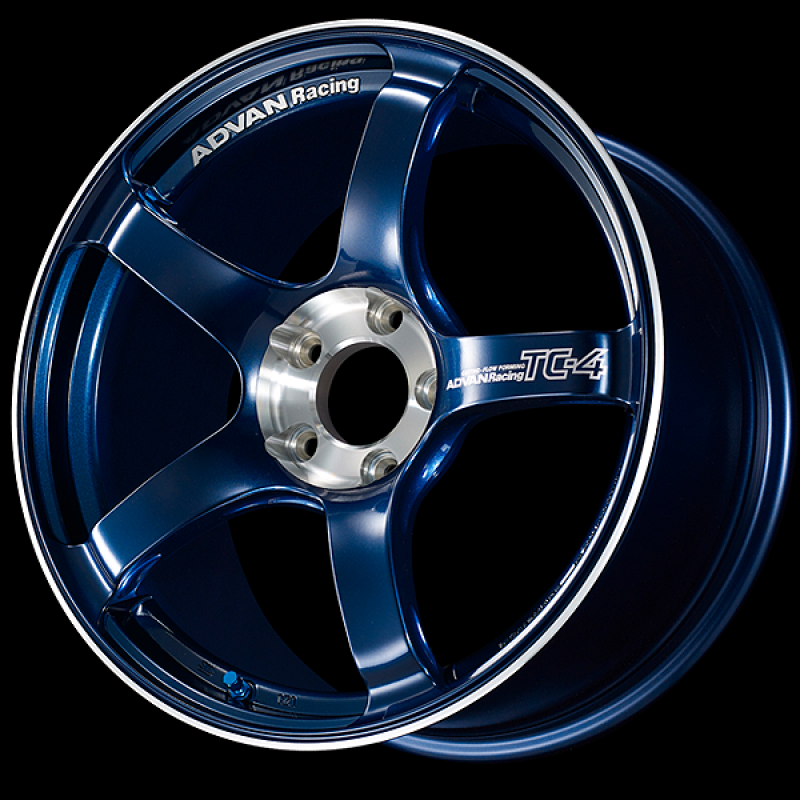

ADVAN Racing TC-4 SE 16x5.5 +45 4x100 Wheel - Indigo Blue & Diamond Cut - YADS6B45AEF

The ADVAN Racing TC-4 SE YADS6B45AEF is a 16x5.5 performance wheel configured with a +45 offset and 4x100 bolt pattern. This version uses a 63mm hub bore, 63mm center-cap size, M12 lug-hole specification, and the Standard design configuration, finished in Racing Indigo Blue & Diamond Cut. The TC-4 SE series is offered in multiple diameters, widths, offsets, bolt patterns, lug-hole specifications, hub bores, and design configurations, so the complete specification set must be matched to the intended vehicle. Confirm brake-caliper clearance, suspension clearance, fender clearance, tire sizing, hub compatibility, and wheel-hardware requirements before ordering rather than relying on wheel diameter or bolt pattern alone.

Key Features

• 16-inch diameter and 5.5-inch width
• +45 offset
• 4x100 bolt pattern with 4 lug holes
• M12 lug-hole specification
• Standard design configuration
• 63mm hub bore
• 63mm center-cap size
• Racing Indigo Blue & Diamond Cut finish

Specifications

• Brand: ADVAN RACING
• Product Type: Wheel
• Wheel Series: TC-4 SE
• Wheel Size: 16X5.5
• Wheel Diameter: 16 in
• Wheel Width: 5.5 in
• Lug Holes: 4
• Lug Hole Size: M12
• Bolt Circle: 100 mm
• Bolt Pattern: 4-100
• Offset: +45
• Design: Standard
• Hub Bore: 63 mm
• Center Cap Size: 63 mm
• Manufacturer Color Code: IBC
• Finish: RACING INDIGO BLUE & DIAMOND CUT
• Store / Variant SKU: avnYADS6B45AEF
• Manufacturer Part Number: YADS6B45AEF
• Manufacturer Article Number: V5616

Wheel Fitment Note: Confirm wheel diameter, width, offset, bolt pattern, lug-hole size, hub bore, design configuration, center-cap requirements, brake-caliper clearance, lug-seat and hardware requirements, tire size, suspension clearance, and fender clearance before ordering. A matching bolt pattern alone does not guarantee vehicle fitment.
