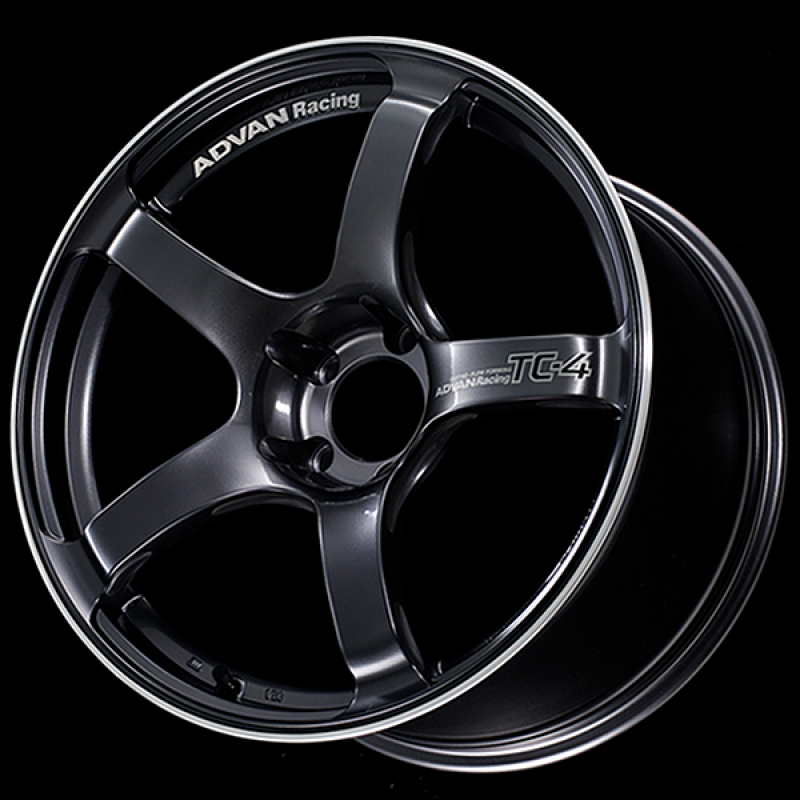

ADVAN Racing TC-4 16x7.5 +32 4x98 Wheel - Gunmetallic & Ring - YAD6F32SGMR

The ADVAN Racing TC-4 YAD6F32SGMR is a 16x7.5 performance wheel configured with a +32 offset and 4x98 bolt pattern. This version uses a 58mm hub bore, 65mm center-cap size, and M12 lug-hole specification, along with the GTR face configuration, finished in Racing Gunmetallic & Ring. The TC-4 series is offered in multiple diameters, widths, offsets, bolt patterns, lug-hole specifications, hub bores, face configurations, and finish combinations, so the complete specification set must be matched to the intended vehicle. Confirm brake-caliper clearance, suspension clearance, fender clearance, tire sizing, hub compatibility, and wheel-hardware requirements before ordering rather than relying on wheel diameter or bolt pattern alone.

Key Features

• 16-inch diameter and 7.5-inch width
• +32 offset
• 4x98 bolt pattern with 4 lug holes
• M12 lug-hole specification
• 58mm hub bore
• 65mm center-cap size
• GTR face configuration
• Racing Gunmetallic & Ring finish

Specifications

• Brand: ADVAN RACING
• Product Type: Wheel
• Wheel Series: TC-4
• Wheel Size: 16X7.5
• Wheel Diameter: 16 in
• Wheel Width: 7.5 in
• Lug Holes: 4
• Lug Hole Size: M12
• Bolt Circle: 98 mm
• Bolt Pattern: 4-98
• Offset: +32
• Face: GTR
• Hub Bore: 58 mm
• Center Cap Size: 65 mm
• Manufacturer Color Code: GMR
• Finish: RACING GUNMETALLIC & RING
• Store / Variant SKU: avnYAD6F32SGMR
• Manufacturer Part Number: YAD6F32SGMR
• Manufacturer Article Number: V6042

Wheel Fitment Note: Confirm wheel diameter, width, offset, bolt pattern, lug-hole size, hub bore, face configuration when listed, center-cap requirements, brake-caliper clearance, lug-seat and hardware requirements, tire size, suspension clearance, and fender clearance before ordering. A matching bolt pattern alone does not guarantee vehicle fitment.
