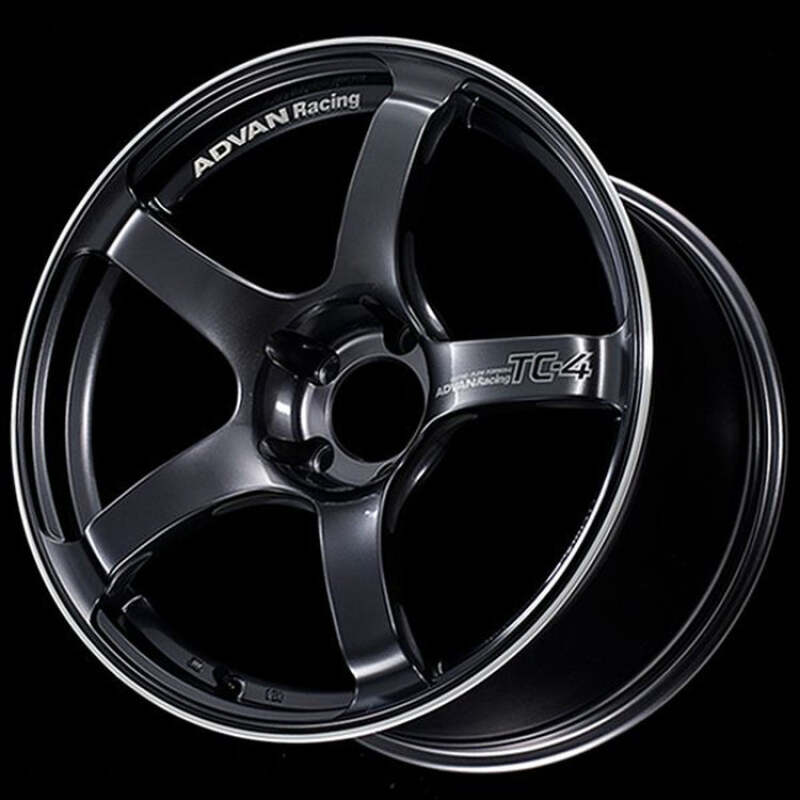

ADVAN Racing TC-4 16x8 +35 5x114.3 Wheel - Gunmetallic (No Ring) - YAD6G35EGM

The ADVAN Racing TC-4 YAD6G35EGM is a 16x8 performance wheel configured with a +35 offset and 5x114.3 bolt pattern. This version uses a 73mm hub bore, 73mm center-cap size, and M12 lug-hole specification, along with the GTR face configuration, finished in Racing Gunmetallic (No Ring). The TC-4 series is offered in multiple diameters, widths, offsets, bolt patterns, lug-hole specifications, hub bores, face configurations, and finish combinations, so the complete specification set must be matched to the intended vehicle. Confirm brake-caliper clearance, suspension clearance, fender clearance, tire sizing, hub compatibility, and wheel-hardware requirements before ordering rather than relying on wheel diameter or bolt pattern alone.

Key Features

• 16-inch diameter and 8-inch width
• +35 offset
• 5x114.3 bolt pattern with 5 lug holes
• M12 lug-hole specification
• 73mm hub bore
• 73mm center-cap size
• GTR face configuration
• Racing Gunmetallic (No Ring) finish

Specifications

• Brand: ADVAN RACING
• Product Type: Wheel
• Wheel Series: TC-4
• Wheel Size: 16X8.0
• Wheel Diameter: 16 in
• Wheel Width: 8 in
• Lug Holes: 5
• Lug Hole Size: M12
• Bolt Circle: 114.3 mm
• Bolt Pattern: 5-114.3
• Offset: +35
• Face: GTR
• Hub Bore: 73 mm
• Center Cap Size: 73 mm
• Manufacturer Color Code: GM
• Finish: RACING GUNMETALLIC (NO RING)
• Store / Variant SKU: avnYAD6G35EGM
• Manufacturer Part Number: YAD6G35EGM

Wheel Fitment Note: Confirm wheel diameter, width, offset, bolt pattern, lug-hole size, hub bore, face configuration when listed, center-cap requirements, brake-caliper clearance, lug-seat and hardware requirements, tire size, suspension clearance, and fender clearance before ordering. A matching bolt pattern alone does not guarantee vehicle fitment.
