Advanced 7-Inch Digital Dash with Built-In GPS and Lightweight Carbon Fiber Enclosure
The AEM CD-7G Carbon Digital Display (PN 30-5702) combines a 7-inch full-color, daylight-readable screen with the rugged durability of a carbon fiber composite enclosure. Designed for high-performance vehicles, it features integrated GPS functionality, compatibility with CAN-enabled devices, and customizable display layouts. The built-in 20Hz GPS receiver and antenna allow real-time tracking for motorsports applications, eliminating the need for external modules. With its bright LED indicators, programmable alerts, and user-friendly design, this dash is the perfect solution for monitoring critical vehicle data.
Key Features:
-
Large 7-Inch Display:
-
800x480 resolution with anti-glare filter for visibility in direct sunlight.
-
Integrated GPS Functionality:
- Built-in 20Hz GPS receiver and antenna included for real-time speed, track mapping, and lap timing.
-
Lightweight and Durable:
- Carbon fiber composite enclosure provides exceptional durability with a total weight of 20.9 oz (595 grams).
-
Water and Dust Resistant:
- IP65-rated for operation in open cockpit vehicles, motorcycles, and marine environments.
-
CAN Integration:
- Supports two independent CAN bus inputs, compatible with AEMnet devices and third-party systems.
- Works with stock 2008-up ECUs via OBDII CAN adapter (PN 30-2217, sold separately).
-
Customizable Pages:
- Includes seven programmable pages, including Main, Alarm, On-Change, and Start-Up.
- Fully customizable with DashDesign Graphics Editor software for tailored layouts and branding.
-
LED Indicators:
-
Seven ultra-bright shift light LEDs and two programmable LEDs for alerts and indicators.
-
Expandable Functionality:
- Add modules like the Vehicle Dynamics Module (PN 30-2206) or 8 Channel K-Type EGT CAN Module (PN 30-2224) for advanced features.
Specifications:
-
Brand: AEM
-
Part Number: 30-5702
-
Screen Size: 7 inches (diagonal)
-
Resolution: 800x480
-
Enclosure Material: Carbon Fiber Composite
-
Weight: 20.9 oz (595 grams)
-
GPS Receiver: Yes (20Hz)
-
IP Rating: IP65 (water and dust resistant)
-
CAN Ready: Yes
-
Datalogging: No
-
Built-in Buttons: Yes
-
Touchscreen: No
-
Warranty: 1 Year
-
Wiring Harness Included: Yes
-
UPC: 840879026042
Benefits of the AEM CD-7G Carbon Display:
-
Enhanced Data Monitoring: Real-time access to critical vehicle data with a large, sunlight-readable display.
-
Integrated GPS: Built-in functionality eliminates the need for external GPS modules.
-
Customizable Layouts: Fully programmable pages with the ability to upload user-specific graphics and text.
-
Durable Design: Lightweight carbon fiber enclosure withstands harsh environments.
-
Wide Compatibility: Seamless integration with CAN-enabled devices and stock or aftermarket ECUs.
Applications:
-
Performance and Race Vehicles: Track lap times, monitor engine parameters, and receive alerts.
-
Marine and Off-Road Use: IP65 rating ensures reliable operation in challenging environments.
-
Motorsports: Ideal for professional and amateur racers needing real-time data and GPS tracking.

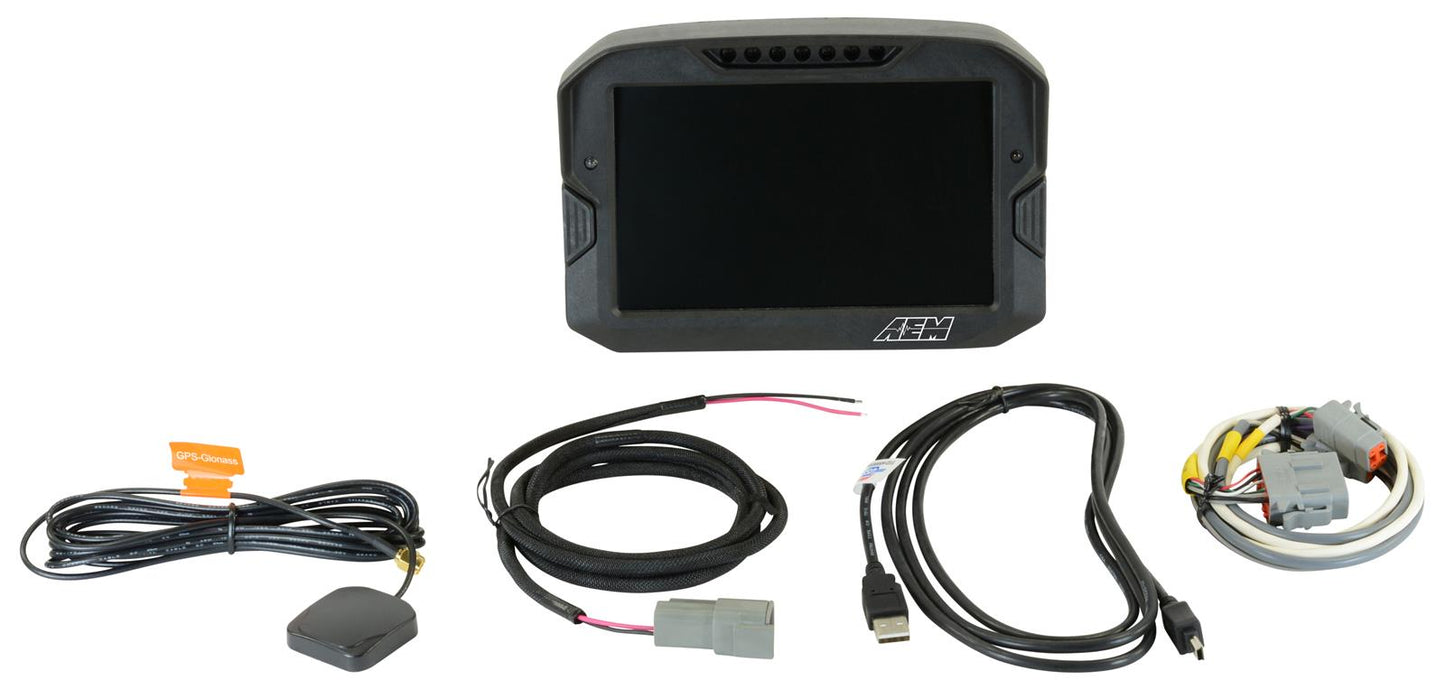

What’s Included:
- AEM CD-7G Carbon Display with GPS (PN 30-5702)
- Built-in 20Hz GPS receiver and antenna
- Wiring harness for plug-and-play installation
- Installation instructions
Optional Accessories:
-
OBDII CAN Adapter Cable (PN 30-2217): For seamless integration with 2008-up factory ECUs.
-
Vehicle Dynamics Module (PN 30-2206): Adds advanced tracking and motion data (roll, pitch, yaw).
-
8 Channel K-Type EGT CAN Module (PN 30-2224): Monitor up to 8 additional temperature inputs.
Upgrade Your Dashboard Today!
The AEM CD-7G Carbon Display with GPS (PN 30-5702) provides the perfect combination of style, functionality, and durability for high-performance applications. With its built-in GPS, customizable layouts, and seamless integration, it’s an essential upgrade for any enthusiast or professional racer.
Order now to unlock the full potential of your vehicle’s performance monitoring system!
