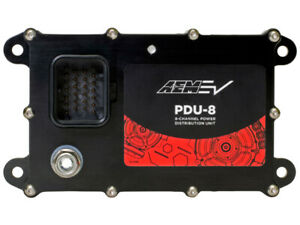

AEM EV 8 Channel CAN Driven Slave Type Power Distribution Unit (PDU)

Now available for internal combustion engines! The AEM EV PDU-8 is an eight channel Power Distribution Unit expansion device that gives you the power to program and control various switched devices using our ECU/VCUs, like high-voltage contactors, cooling fans, headlights, brake lights, turn signals, windshield wipers, fuel pumps, and more. The ability to connect up to eight PDU-8s (four on AEM Dashes, and one on Infinity ECU's) on the same CAN bus network lets installers mount the individual PDUs closer to the subsystems they are controlling, which simplifies wiring, reduces weight, and increases reliability. This CAN-based solid-state control module eliminates the need to install fuses and relays for the switched functions that it operates. The PDU-8 can easily be controlled by other CAN based controllers that support custom CAN settings, such as Motec, Link, FuelTech, Haltech, etc. Does work with Holley EFI if using the AEM dash display for logic based control.

Features and Benefits

• Four 20A and four 10A high-side 12V outputs for activating/deactivating various switched devices
• Module is fully sealed for installation close to switched controls, simplifying wiring and reducing weight
• CAN-commanded PDU, no logic programming required for PDU operation
• Small size and lightweight (103x67x33mm/4.05x2.70x1.5", 190g/6.7oz/0.42lbs.)
• Fully-sealed, waterproof billet-aluminum enclosure

NOT CARB-APPROVED. ILLEGAL TO USE OR INSTALL IN CALIFORNIA. IF YOU LIVE IN CA, WE CANNOT SHIP YOU THIS ITEM AND YOU WILL BE CHARGED A 10% CANCELLATION FEE IF YOU ORDER. PLEASE LOOK FOR OTHER PRODUCTS WITH CARB APPROVAL.
