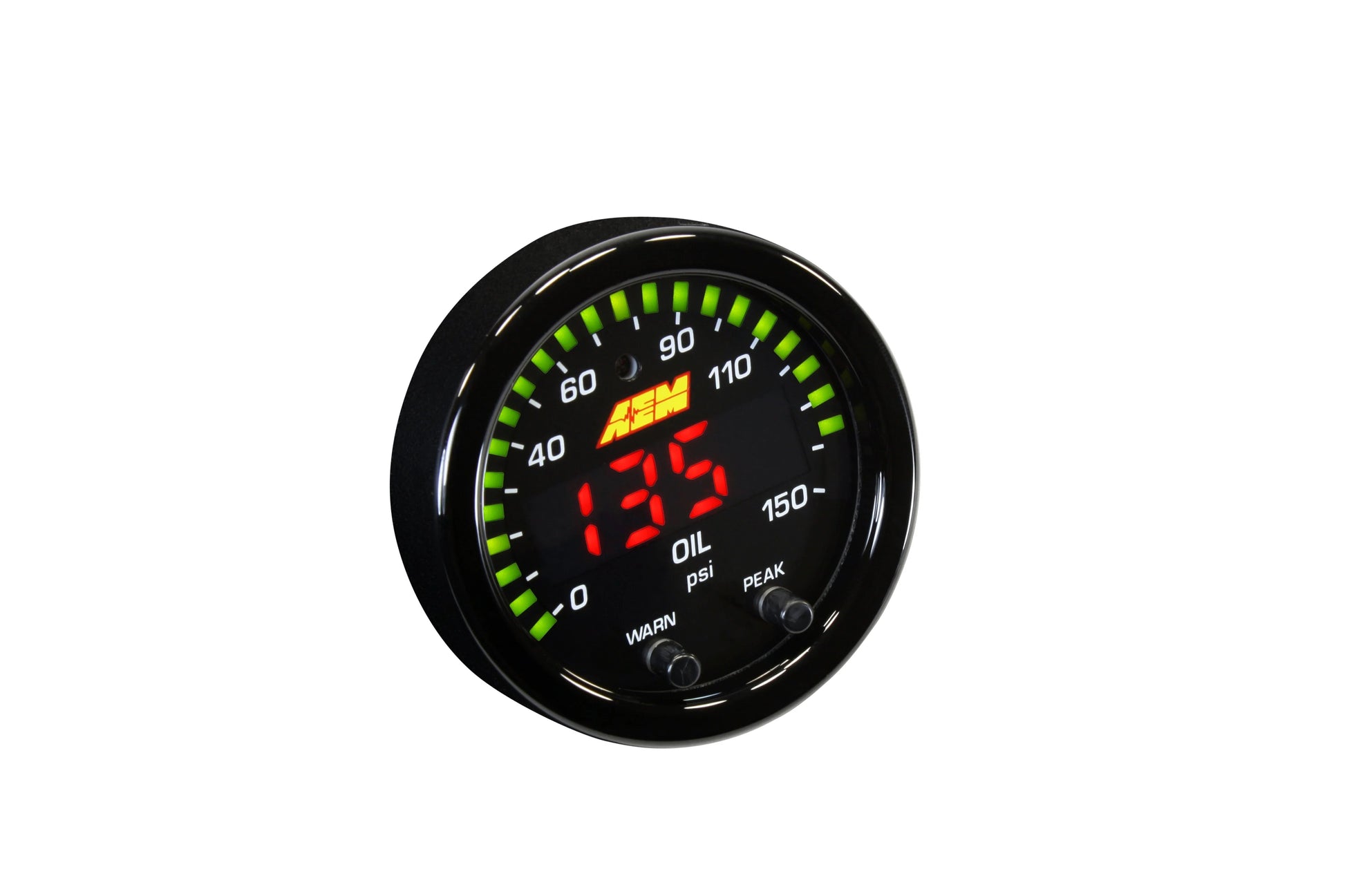

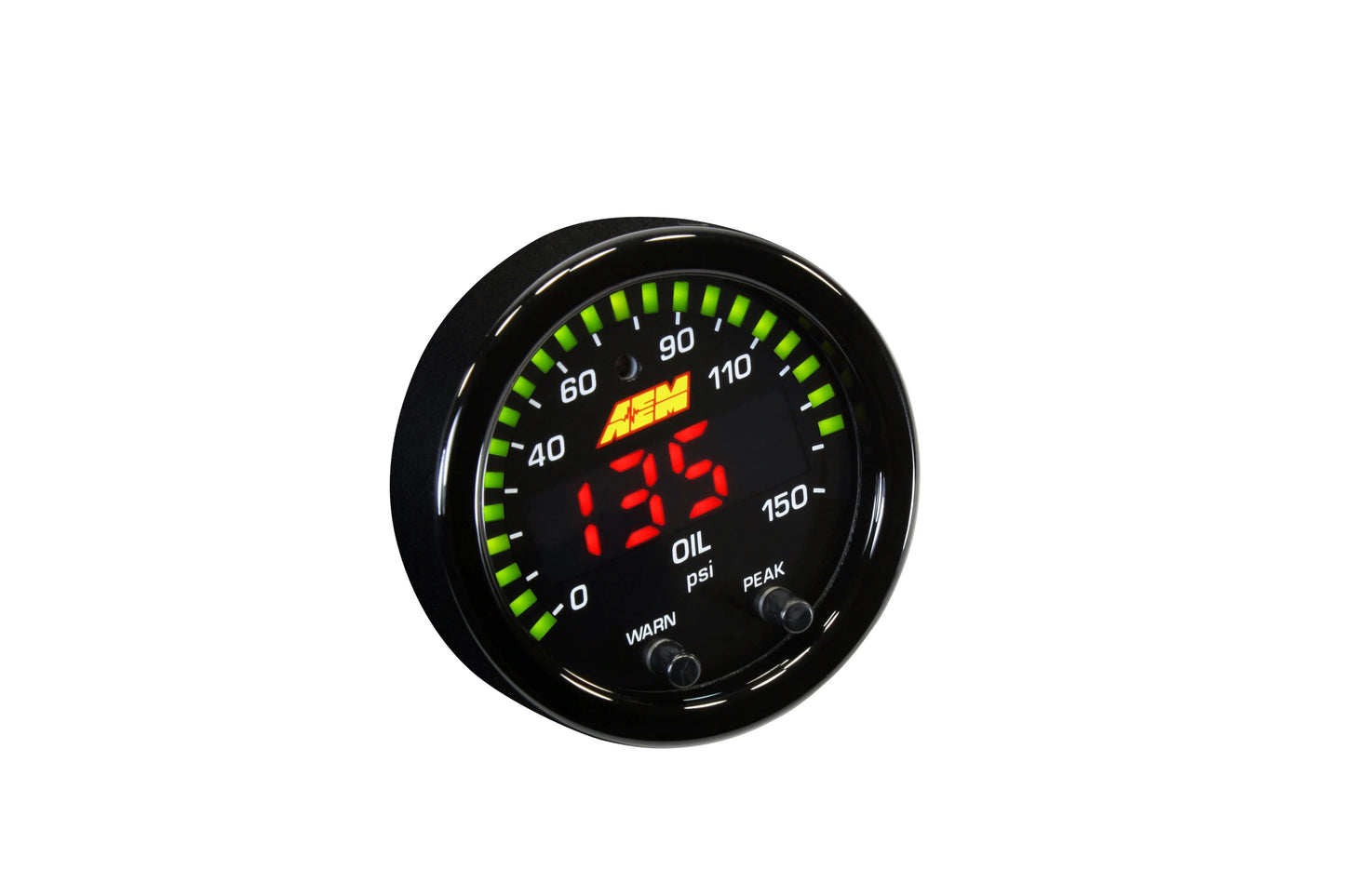

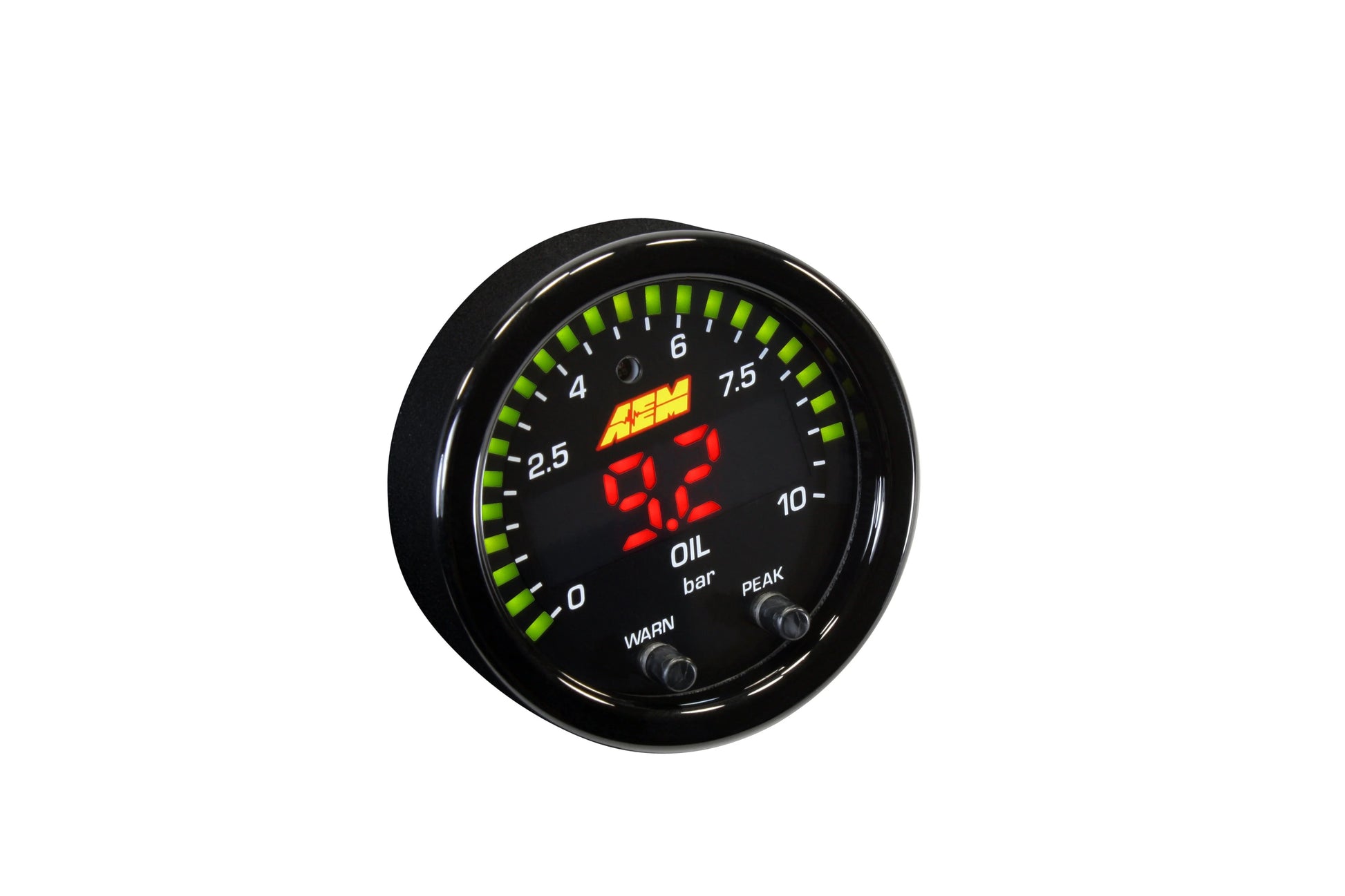

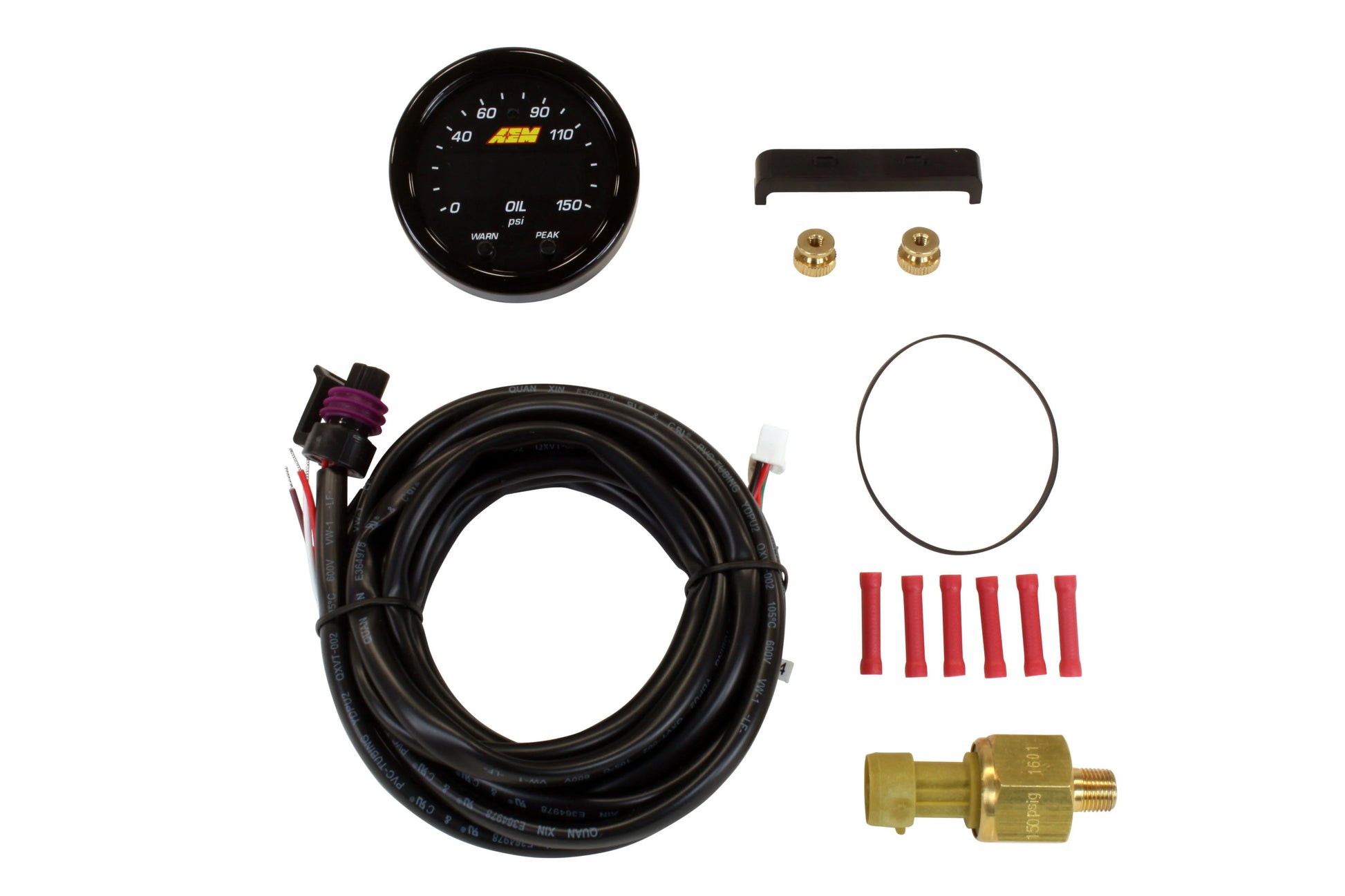

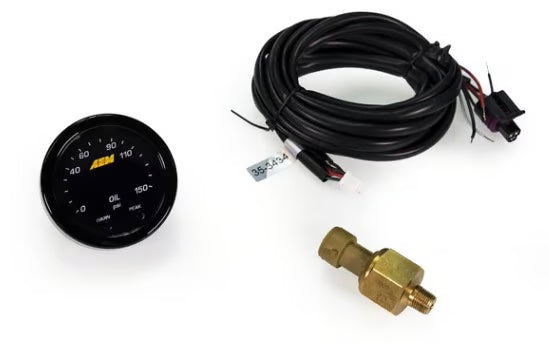

AEM X-Series Fluid Pressure Gauge Kit 0-150 PSI / 0-10 BAR – Black - 30-0307

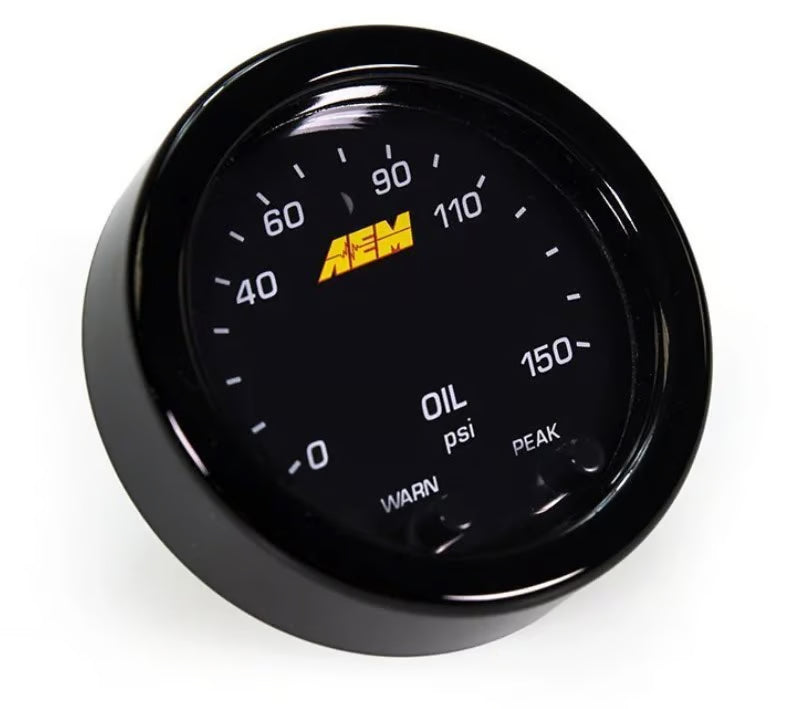

The AEM X-Series Fluid Pressure Gauge Kit is a high-accuracy digital pressure gauge designed for monitoring fluid pressure in performance and racing applications. Featuring a 2-1/16 inch (52mm) diameter and an ultra-slim body depth, this gauge is easy to mount in gauge pods or tight dashboard locations.

The gauge includes a programmable center LED that is significantly larger than previous AEM designs, along with 24 green outer LEDs for quick visual reference. Users can select between standard or metric pressure units, configure warning thresholds, and access peak/recall data directly from the gauge face. AEMnet CANbus and 0–5V analog outputs allow seamless integration with engine management systems or data loggers.

Key Features:

• Fluid pressure gauge kit
• Pressure range: 0–150 PSI / 0–10 BAR
• 2-1/16 inch (52mm) gauge diameter
• Slim profile for flexible mounting
• Black bezel with black face
• Programmable center LED (87% larger than previous AEM gauges)
• 24 green outer LEDs for quick pressure reference
• User-selectable standard or metric units
• Peak and recall functions via front buttons
• User-selectable warning thresholds
• Auto-dimming brightness sensor
• Positive locking electrical connectors

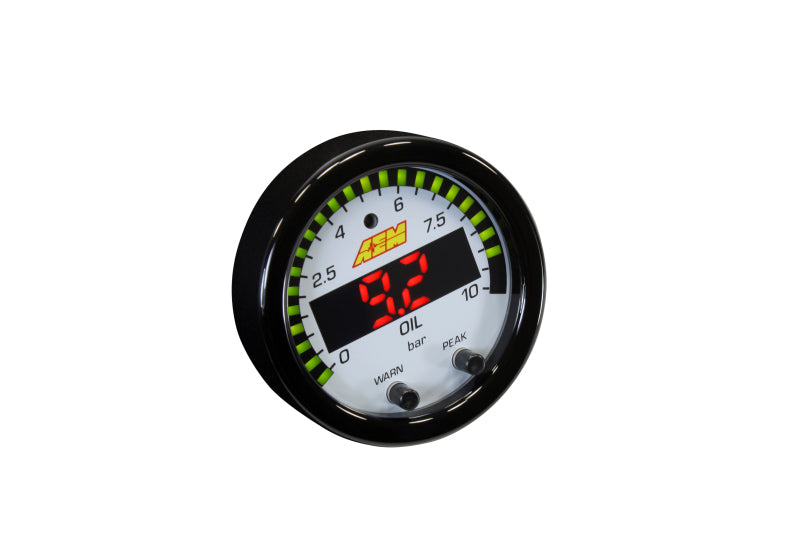

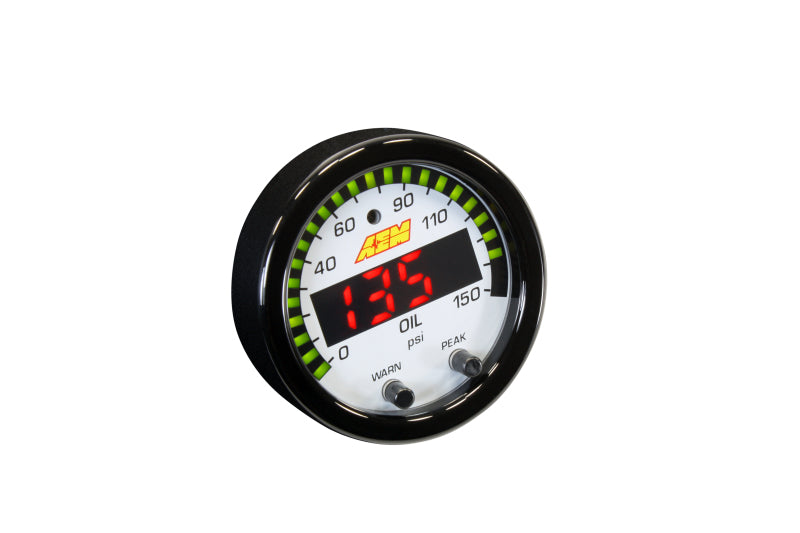

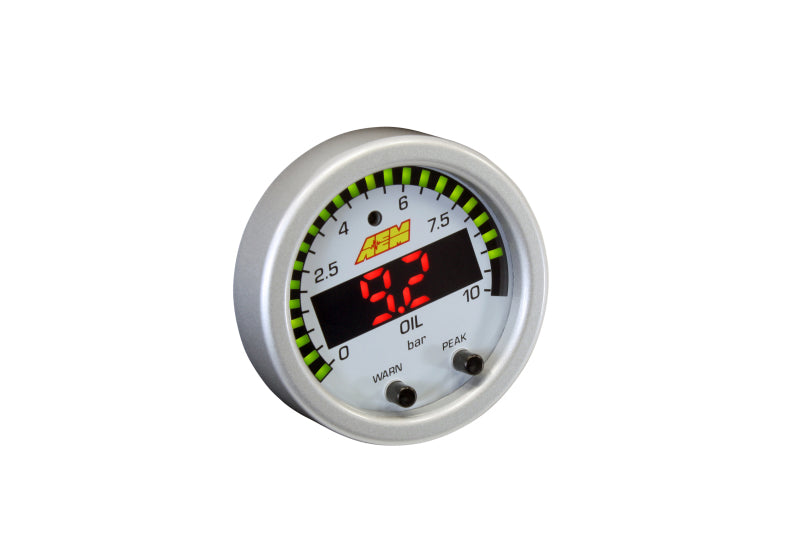

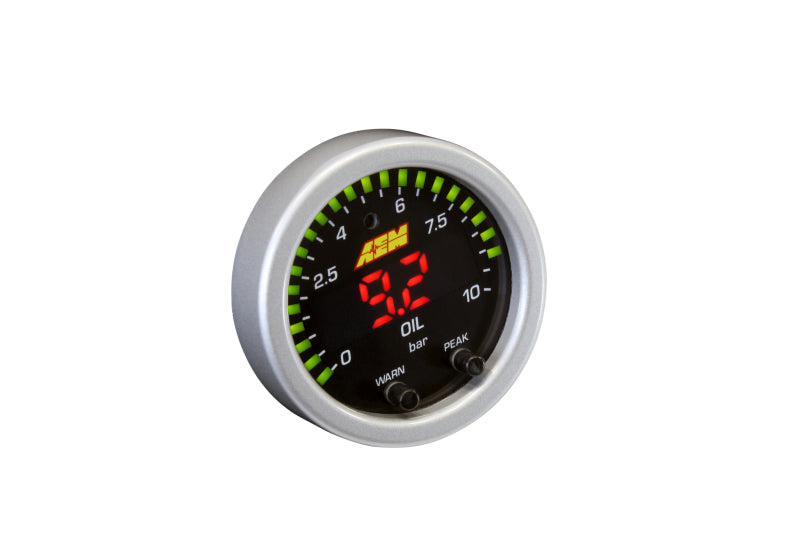

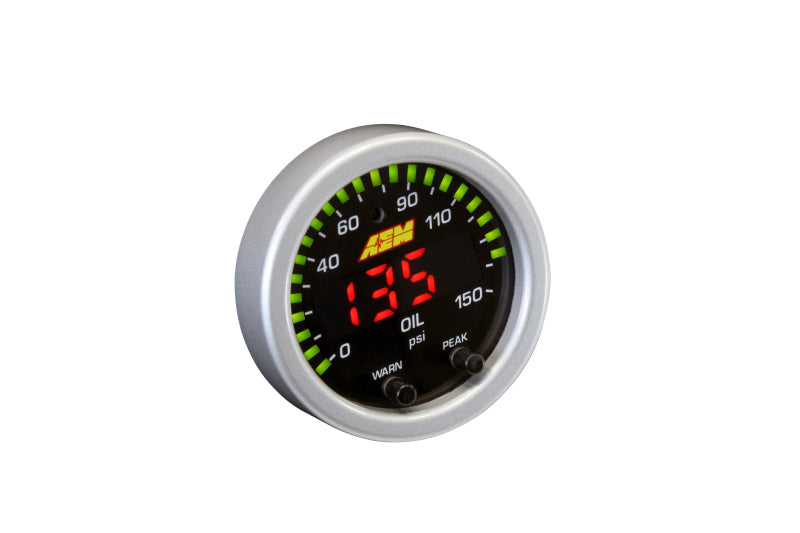

• Optional silver bezel and white faceplate available (sold separately)
• AEMnet CANbus compatible
• Dual 0–5V analog outputs
• Manufacturer’s 1-year warranty

Specifications:

• Gauge Diameter: 2-1/16 in (52mm)
• Pressure Range: 0–150 PSI / 0–10 BAR
• Overall Depth: 0.825 in
• Cup Depth: 0.200 in
• Display Units: PSI / BAR (user selectable)
• Bezel Color: Black
• Face Color: Black

Part Number:

30-0307
