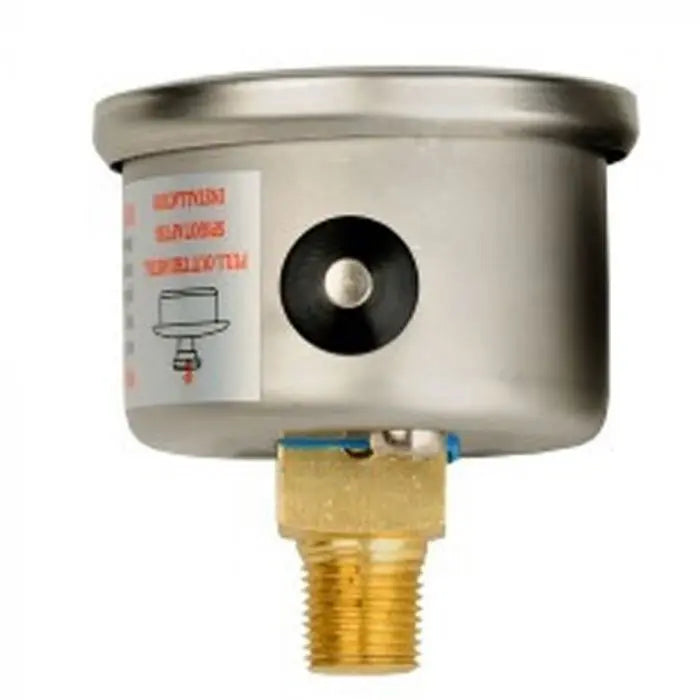

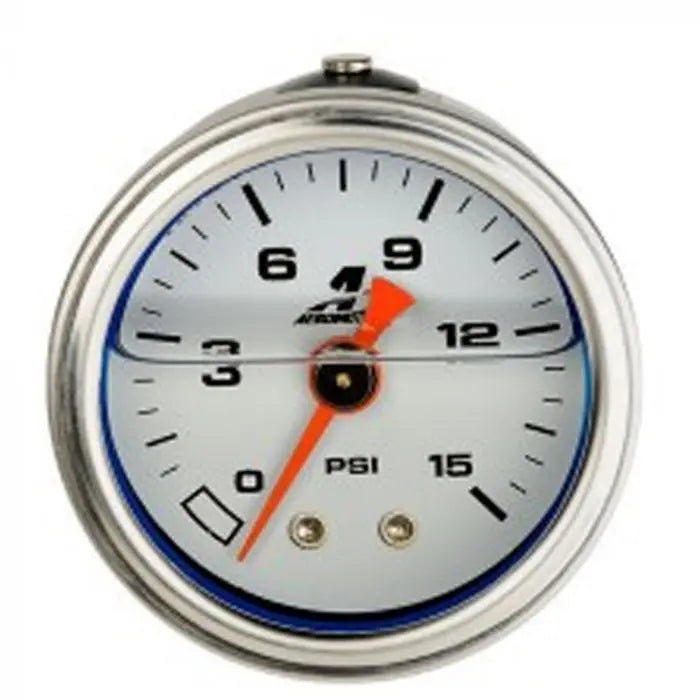

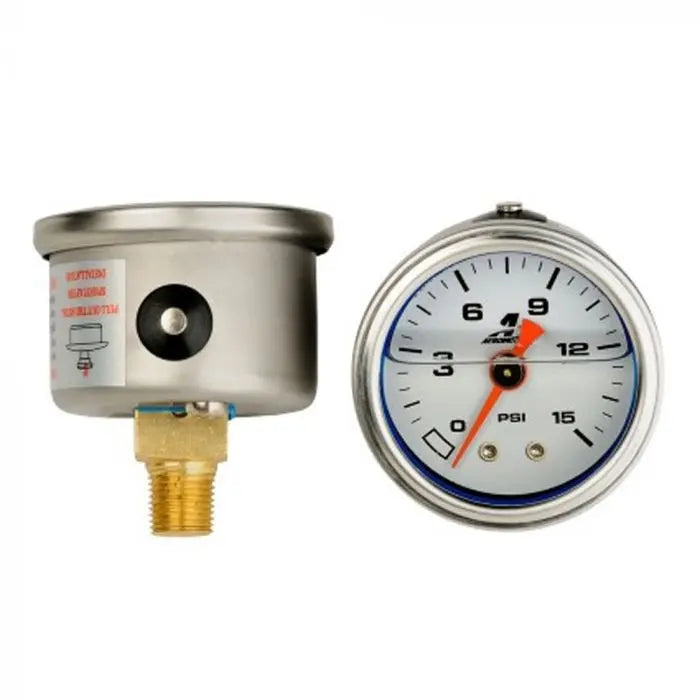

Aeromotive 0-100 PSI Fuel Pressure Gauge Liquid Filled Part # 15632

Liquid Filled Pressure Gauges

#15632 | 0 – 15psi (This unit your looking at)

#15633 | 0 – 100psi (Click Anywhere to the left)

• 1.5” Diameter
• 1/8″ NPT Male Connection
• 0-100 or 0-15 PSI Pressure Range
• Liquid Filled For Durability
• Integral Equalizer Valve Ensures Accuracy Regardless of Operating Temperature

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Description

Liquid Filled Gauges offer a better looking, more durable option for gauges that will live in a harsh environment, like under the hood, attached to a high performance engine.  The problem with regular liquid filled gauges is they can be temperature sensitive, with fuel pressure readings prone to rising and falling with the temperature of the oil in the gauge case, regardless of actual fuel pressure.  As under-hood and therefore gauge temperatures can swing across a large range, this can be especially frustrating.

Aeromotive Liquid Filled Gauges feature a custom equalizer valve that allows gauge case to be quickly equalized to atmosphere, instantly correcting the gauge reading regardless of operating temperature.

For more information on Liquid Filled Gauges and the Aeromotive solution check out Tech Bulletin TB-903:

Additional information

Mounting Configuration: External
