Aeromotive Eliminator Fuel System for 2010-2017 Ford Mustang GT 5.4L Cobra Jet - 17347

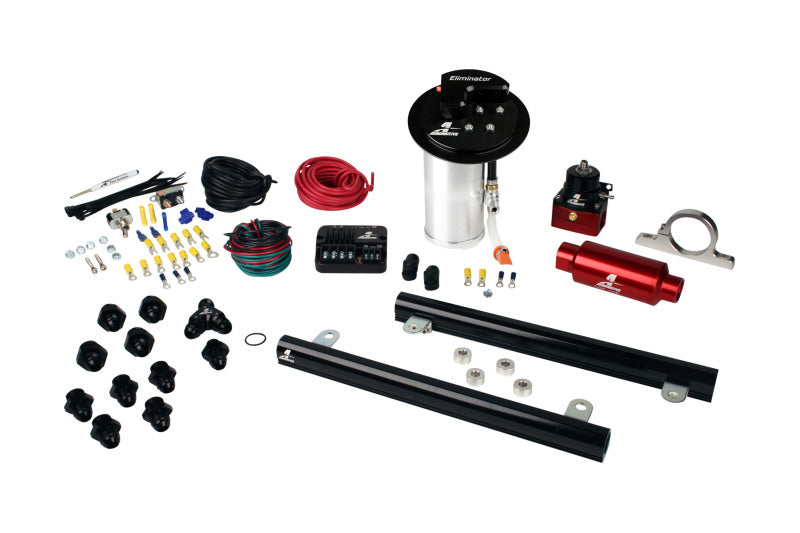

The Aeromotive 17347 Eliminator In-Tank Fuel System is engineered for 2010-2017 Ford Mustang GT chassis vehicles equipped with a 5.4L Cobra Jet supercharged 4-valve engine or equivalent intake setup. This high-performance system features the Aeromotive Stealth Eliminator in-tank fuel pump designed to install directly into the factory Mustang fuel tank while integrating with the OEM fuel level sending unit and jet-siphon transfer pump. The kit includes billet 5.4L Cobra Jet fuel rails, a billet EFI pressure regulator, a 40-micron high-flow fuel filter with bracket, CNC-machined AN-08 Y-block, and all required ORB high-flow fittings for installation. Aeromotive’s Fuel Pump Speed Controller is also included, allowing continuous-duty street operation while maintaining full pump performance for racing conditions. Capable of supporting up to 1,400 flywheel horsepower with forced induction or up to 1,900 flywheel horsepower naturally aspirated on gasoline, this system provides the fuel capacity required for extreme performance builds.

Key Features & Specs:

• Complete Eliminator in-tank EFI fuel system kit
• Designed for 2010-2017 Ford Mustang GT chassis with 5.4L Cobra Jet engine swap
• Includes Aeromotive Stealth Eliminator fuel pump assembly (18695)
• Includes billet 5.4L Cobra Jet fuel rails (14141)
• Includes billet EFI fuel pressure regulator (13134)
• Includes Fuel Pump Speed Controller (16306) for street/strip operation
• Includes 40-micron high-flow fuel filter and mounting bracket
• CNC-machined AN-08 Y-block for dual rail fuel distribution
• One-way check valve included
• Multiple ORB-08 to AN-08 and ORB-10 to AN-08 fittings included
• Integrates with OEM Mustang fuel tank, sending unit, and jet siphon system
• Supports up to 1,400 flywheel HP forced induction on gasoline
• Supports up to 1,900 flywheel HP naturally aspirated on gasoline
• Designed for high-performance street and racing applications
• Fuel lines and hose ends sold separately
• Tach adapter required to operate fuel pump speed controller

Fitment:

2010-2017 Ford Mustang GT (5.4L Cobra Jet engine swap)
