Aeromotive Eliminator Race Fuel System for 2010-2017 Ford Mustang GT 5.4L Cobra Jet - 17346

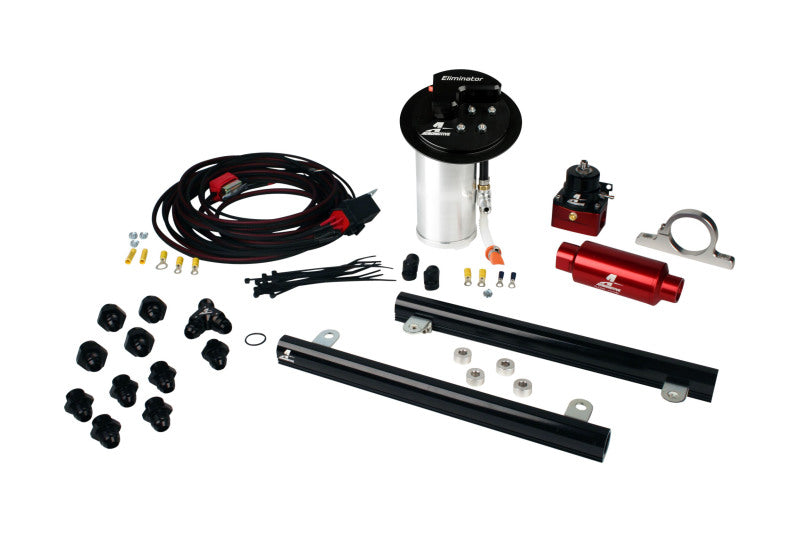

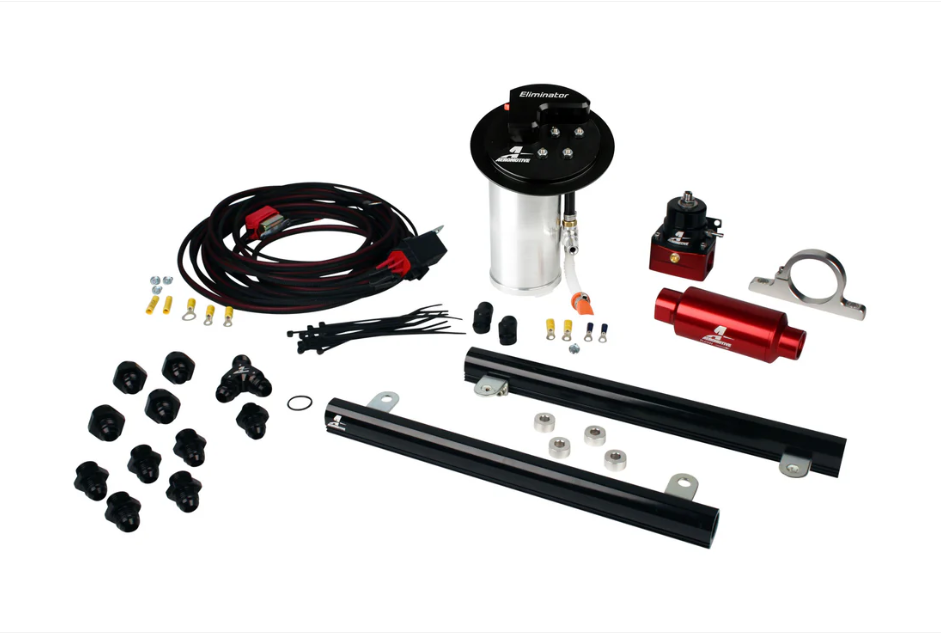

The Aeromotive 17346 Eliminator In-Tank Race Fuel System is designed for 2010-2017 Ford Mustang GT chassis vehicles equipped with a 5.4L Cobra Jet supercharged 4-valve engine swap or equivalent intake configuration. Built for serious racing applications, this system features the Aeromotive Stealth Eliminator in-tank fuel pump designed to install inside the factory Mustang fuel tank while integrating with the OEM fuel level sending unit and jet-siphon transfer pump. The kit includes billet 5.4L Cobra Jet fuel rails, a billet EFI pressure regulator, a 40-micron high-flow fuel filter with mounting bracket, a CNC-machined AN-08 Y-block, and all necessary high-flow ORB port fittings for installation. Aeromotive’s HD Fuel Pump Wiring Kit is also included to provide the electrical supply needed for high-performance race vehicles with limited street use. Capable of supporting up to 1,400 flywheel horsepower with forced induction or up to 1,900 flywheel horsepower naturally aspirated on gasoline, this system delivers the fuel volume required for extreme performance builds.

Key Features & Specs:

• Complete Eliminator in-tank race fuel system kit
• Designed for 2010-2017 Ford Mustang GT chassis with 5.4L Cobra Jet engine swap
• Includes Aeromotive Stealth Eliminator fuel pump assembly (18695)
• Includes billet 5.4L Cobra Jet high-flow fuel rails (14141)
• Includes billet EFI fuel pressure regulator (13134)
• Includes HD Fuel Pump Wiring Kit (16307) for race applications
• Includes 40-micron high-flow fuel filter and filter bracket
• CNC-machined AN-08 Y-block for dual rail fuel distribution
• One-way check valve included
• Multiple ORB-08 to AN-08 and ORB-10 to AN-08 fittings included
• Integrates with OEM Mustang fuel tank, sending unit, and jet siphon system
• Supports up to 1,400 flywheel HP forced induction on gasoline
• Supports up to 1,900 flywheel HP naturally aspirated on gasoline
• Designed for high-performance racing applications with limited street use
• Fuel lines and hose ends sold separately

Fitment:

2010-2017 Ford Mustang GT (5.4L Cobra Jet engine swap)
