Aeromotive Eliminator Fuel System for 2010-2017 Ford Mustang GT 5.4L GT500 - 17345

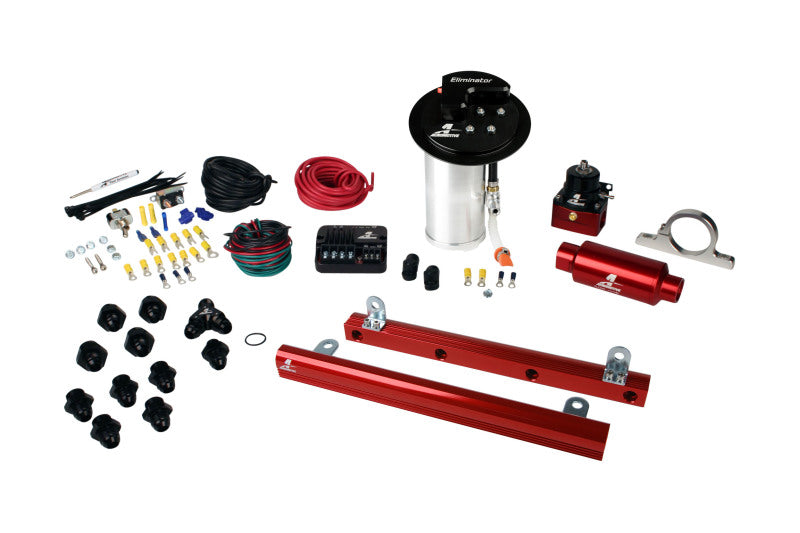

The Aeromotive 17345 Eliminator In-Tank Fuel System is engineered for 2010-2017 Ford Mustang GT chassis vehicles equipped with a 5.4L GT500 supercharged 4-valve engine swap or equivalent intake setup. This high-performance fuel system features the Aeromotive Stealth Eliminator in-tank fuel pump designed to install directly inside the factory Mustang fuel tank while integrating with the OEM fuel level sending unit and jet-siphon transfer pump. The system includes billet 5.4L fuel rails, a billet EFI pressure regulator, a 40-micron high-flow fuel filter with mounting bracket, a CNC-machined AN-08 Y-block, and all required ORB high-flow fittings for installation. Aeromotive’s Fuel Pump Speed Controller is included to allow continuous-duty street operation while maintaining full pump performance for racing conditions. Capable of supporting up to 1,400 flywheel horsepower with forced induction or up to 1,900 flywheel horsepower naturally aspirated on gasoline, this system delivers the fuel flow required for extreme performance street and strip builds.

Key Features & Specs:

• Complete Eliminator in-tank EFI fuel system kit
• Designed for 2010-2017 Ford Mustang GT chassis with 5.4L GT500 engine swap
• Includes Aeromotive Stealth Eliminator fuel pump assembly (18695)
• Includes billet 5.4L high-flow fuel rails (14144)
• Includes billet EFI fuel pressure regulator (13134)
• Includes Fuel Pump Speed Controller (16306) for street and strip applications
• Includes 40-micron high-flow fuel filter and filter bracket
• CNC-machined AN-08 Y-block for dual rail fuel distribution
• One-way check valve included
• Multiple ORB-08 to AN-08 and ORB-10 to AN-08 fittings included
• Integrates with OEM Mustang fuel tank, sending unit, and jet siphon transfer system
• Supports up to 1,400 flywheel HP forced induction on gasoline
• Supports up to 1,900 flywheel HP naturally aspirated on gasoline
• Designed for high-performance street and racing applications
• Fuel lines and hose ends sold separately
• Tach adapter required to operate fuel pump speed controller

Fitment:

2010-2017 Ford Mustang GT (5.4L GT500 engine swap)
