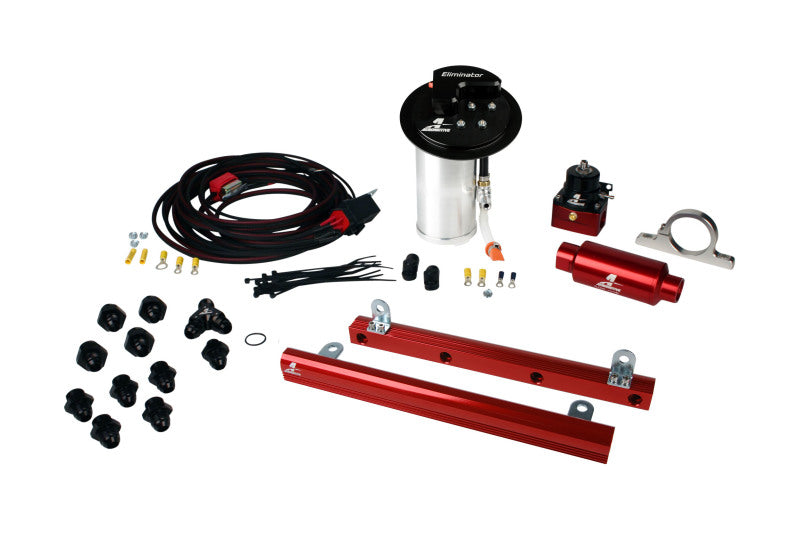

Aeromotive Eliminator Race Fuel System for 2010-2017 Ford Mustang GT 5.4L GT500 - 17344

The Aeromotive 17344 Eliminator In-Tank Race Fuel System is designed for 2010-2017 Ford Mustang GT chassis vehicles equipped with a 5.4L GT500 supercharged 4-valve engine swap or equivalent intake configuration. Built for high-horsepower racing applications, this system features the Aeromotive Stealth Eliminator in-tank fuel pump that installs directly inside the factory Mustang fuel tank while integrating with the OEM fuel-level sending unit and jet-siphon transfer pump. The system includes billet 5.4L high-flow fuel rails, a billet EFI fuel pressure regulator, a 40-micron high-flow fuel filter with mounting bracket, a CNC-machined AN-08 Y-block, and all required ORB high-flow fittings. Aeromotive’s HD Fuel Pump Wiring Kit is included to provide the electrical supply needed for race-focused vehicles with limited street use. Capable of supporting up to 1,400 flywheel horsepower with forced induction or up to 1,900 flywheel horsepower naturally aspirated on gasoline, this system provides the fuel capacity required for extreme performance builds.

Key Features & Specs:

• Complete Eliminator in-tank race fuel system kit
• Designed for 2010-2017 Ford Mustang GT chassis with 5.4L GT500 engine swap
• Includes Aeromotive Stealth Eliminator fuel pump assembly (18695)
• Includes billet 5.4L high-flow fuel rails (14144)
• Includes billet EFI fuel pressure regulator (13134)
• Includes HD Fuel Pump Wiring Kit (16307) for race applications
• Includes 40-micron high-flow fuel filter and filter bracket
• CNC-machined AN-08 Y-block for dual rail fuel distribution
• One-way check valve included
• Multiple ORB-08 to AN-08 and ORB-10 to AN-08 fittings included
• Integrates with OEM Mustang fuel tank, sending unit, and jet siphon transfer system
• Supports up to 1,400 flywheel HP forced induction on gasoline
• Supports up to 1,900 flywheel HP naturally aspirated on gasoline
• Designed for high-performance racing applications with limited street use
• Fuel lines and hose ends sold separately

Fitment:

2010-2017 Ford Mustang GT (5.4L GT500 engine swap)
