Aeromotive 3.5 Brushless Stealth Fuel Cell – 20 Gallon P/N 18371

P/N 18371 3.5 Brushless Stealth Cell – 20 Gal
Pro-Series Performance Plus Advanced Technology

20-gallon Racing Fuel Cell with 3.5 Brushless Gear Pump, aircraft filler cap, ORB-10 outlet, AN-08 baffled return and roll-over protected AN-08 vent.  This is the same fuel cell design used in the Ford Cobra Jet, Chevy COPO Camaro and many of the MOPAR Drag Pack cars.

• Baffled design keeps fuel at the pump inlet
• Fluted pickup with integrated 100-m prefilter
• Fuel Cell Dimensions: 20″w x 24″l x 10″h
• The Pro-Series performance you expect and more:
  • Fuel injected engines: GAS
    up to 2400 FWHP – naturally aspirated
    up to 1800 FWHP – forced air induction
  • Carbureted engines: GAS
    Up to 2600 FWHP – naturally aspirated
    Up to 2000 FWHP – forced air induction
  • Fuel injected engines: E85
    up to 1680 FWHP – naturally aspirated
    up to 1260 FWHP – forced air induction
  • Carbureted engines: E85
    Up to 1820 FWHP – naturally aspirated
    Up to 1400 FWHP – forced air induction
  • Fuel injected engines: METHANOL
    up to 840 FWHP – naturally aspirated
    up to 630 FWHP – forced air induction
  • Carbureted engines: METHANOL
    Up to 910 FWHP – naturally aspirated
    Up to 700 FWHP – forced air induction
• Lighter than the traditional Pro-Series pump.
• Reduced current draw at higher, EFI pressures.
• Extended service life in methanol and ethanol.
• New integral spur-gear pumping mechanism.
• 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
• ORB-10 outlet port.
• Requires straight 12-VDC to 16-VDC power supply.
• Not compatible with pulse modulated systems or fuel pump speed controllers.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

EFI Rated flow of 1,250 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,350 lbs./hr. @ 9 psi, 13.5 volts

Description

The market leader in fuel delivery systems and components, Aeromotive introduces its first brushless fuel pump series. The 3.5 Brushless Gear pump provides the Pro-Series Fuel Pump performance the world has come to trust and depend on, now available with the latest Spur-Gear pumping mechanism and brushless-motor technology. Built for up to 90 psi of sustained pressure, this new pump supports Pro-Series flow at higher pressures with minimal drop in flow. This new brushless spur-gear pump is able to move more fuel and sustain higher pressures without failure.

• ORB-10 outlet port.
• ORB-12 inlet with integrated pickup and 100-m Prefilter.

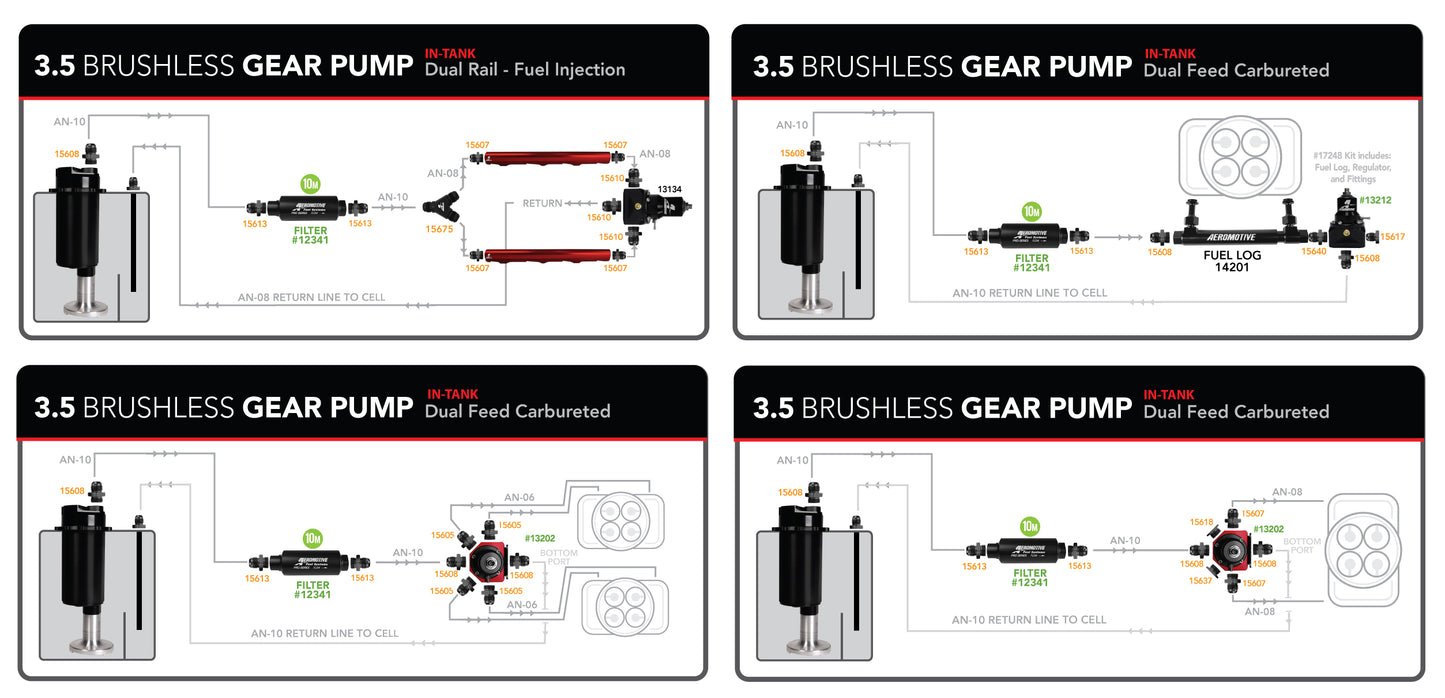

• For EFI applications use regulator P/N 13134 or P/N 13305.
• For carbureted applications use regulator P/N 13202 or P/N 13212.
• Capable of 90-PSI continuous operating pressure, 150 PSI peak pressure, base plus boost.
• Perfect for ‘blow-through’ carbureted engines up to 2,000 FWHP.
• Upgrade your standard brushless pump to make it True Variable Speed by buying the 18047 retrofit kit cap
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Brushless motors employ sensors to monitor rotor angle to provide faster and more reliable phase shifting, producing more torque capacity and motor efficiency. Instead of the armature rotating, in a brushless motor the magnets rotate around the armature and the motor controller manages the phase shift to keep the motor rotating under load (load is related to pressure in a fuel pump).  With more torque per watt and a higher torque to weight ratio, brushless motors produce lower noise and deliver higher reliability.

With a higher level of efficiency, down to fractions of a second in design speed control, the new Aeromotive brushless fuel pumps provide precise control of fuel pump RPM as pressure rises, better maintaining pump RPM and flow, producing a flatter flow curve.  Tight tolerances result in less current draw, less heat and extended life. Now there is the ability to upgrade to a premium brushless pump for faster, more reliable and uninterrupted fuel delivery with less power consumption and potential for wear or failure.

Additional information

Mounting Configuration: In Tank
