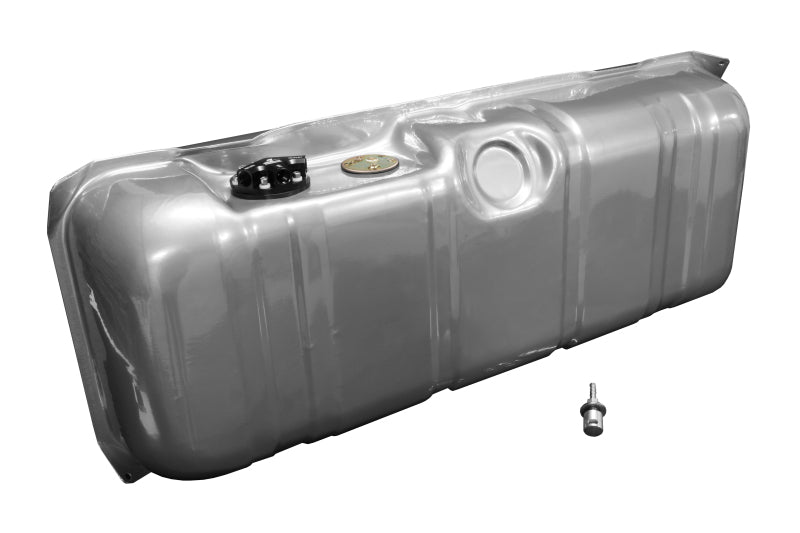

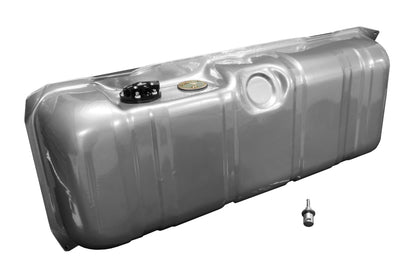

Aeromotive Stealth Fuel Tank for 1961-1964 Chevrolet Impala - 18334

The Aeromotive 18334 Gen I Stealth Fuel Tank is designed specifically for 1961-1964 Chevrolet Impala models, providing a modern high-performance fuel delivery solution while maintaining an OEM-style appearance. Built to support both EFI and carbureted engines, this 20-gallon steel fuel tank features an integrated 340 LPH Stealth in-tank fuel pump capable of supporting demanding street and performance applications. A wide internal surge baffle and large EFI-friendly fuel pump reservoir help maintain consistent fuel delivery during acceleration, braking, and cornering. The tank is finished in a durable silver powder-coated exterior for corrosion resistance and long-term durability. It includes a billet pump hat with ORB-06 outlet, return, and vent ports and comes fully assembled with a 0-30 Ohm fuel level sending unit for straightforward installation.

Key Features & Specs:

• Integrated Aeromotive 340 LPH Stealth in-tank fuel pump
• Designed for EFI and carbureted fuel systems
• 20-gallon capacity with OEM-style appearance
• Durable powder-coated silver steel construction
• Wide internal surge baffle for improved fuel control
• Large EFI-friendly internal fuel pump reservoir
• Billet hat with ORB-06 outlet, return, and vent ports
• 0–30 Ohm fuel level sending unit included
• Turbine impeller pump design for high flow and quiet operation
• Maximum flow rating: 340 LPH
• Maximum pressure: 105 PSI
• Voltage range: 12–16V
• Maximum current draw: 13A @ 40 PSI
• Pulse width modulation compatible
• Brushed motor style with threaded stud terminals
• Fully assembled and ready to install

Fitment:

1961-1964 Chevrolet Impala
