Aeromotive 340 Stealth Fuel Tank for 1969-70 Mustang - 18347

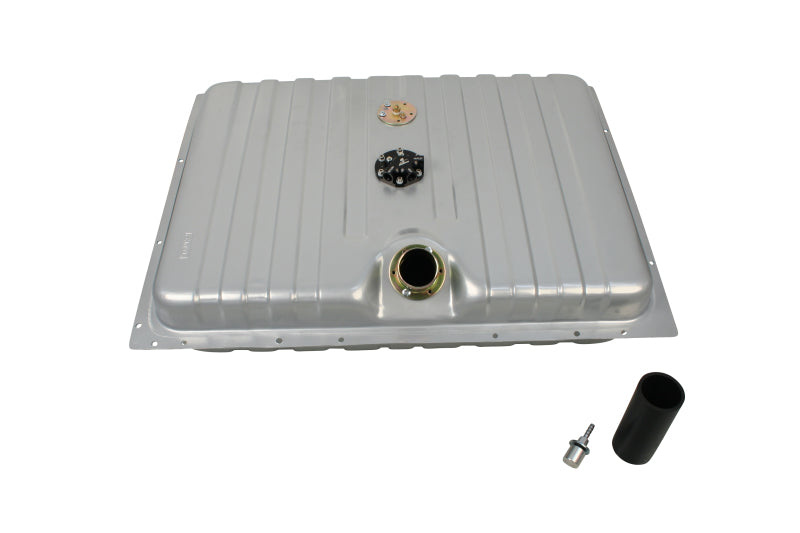

The Aeromotive 340 Stealth Fuel Tank (18347) is a complete performance fuel system upgrade designed for 1969–1970 Ford Mustang models. This Gen I Stealth tank maintains an OEM-style appearance with a durable silver-painted finish while integrating a powerful and quiet 340 LPH Stealth in-tank fuel pump capable of supporting both EFI and carbureted engines. Inside the tank, a wide internal surge baffle and large EFI-friendly fuel pump reservoir help maintain consistent fuel delivery during acceleration, braking, and cornering. Delivered fully assembled with the pump and a 73–10 Ohm fuel level sending unit installed, this system is ready for installation and ideal for high-performance street and restomod builds.

Key Features & Specs:

• Gen I Stealth fuel tank for 1969–1970 Ford Mustang
• OEM-style appearance with silver painted steel finish
• 22-gallon fuel tank capacity
• High-flow 340 LPH Stealth in-tank fuel pump
• Compatible with EFI and carbureted engines
• Wide internal surge baffle with large EFI-friendly fuel pump reservoir
• Includes 73–10 Ohm fuel level sending unit
• Billet pump hat with ORB-06 outlet, return, and vent ports
• Fully assembled and ready to install
• Maximum pump pressure: 105 PSI
• Pump design: turbine impeller with brushed motor
• Maximum current draw: 13A @ 40 PSI
• Voltage requirement: 12–16V
• Pulse width modulation compatible
• ORB-06 female outlet and return fittings
• Filler neck attached

Fitment:

1969-1970 Ford Mustang
